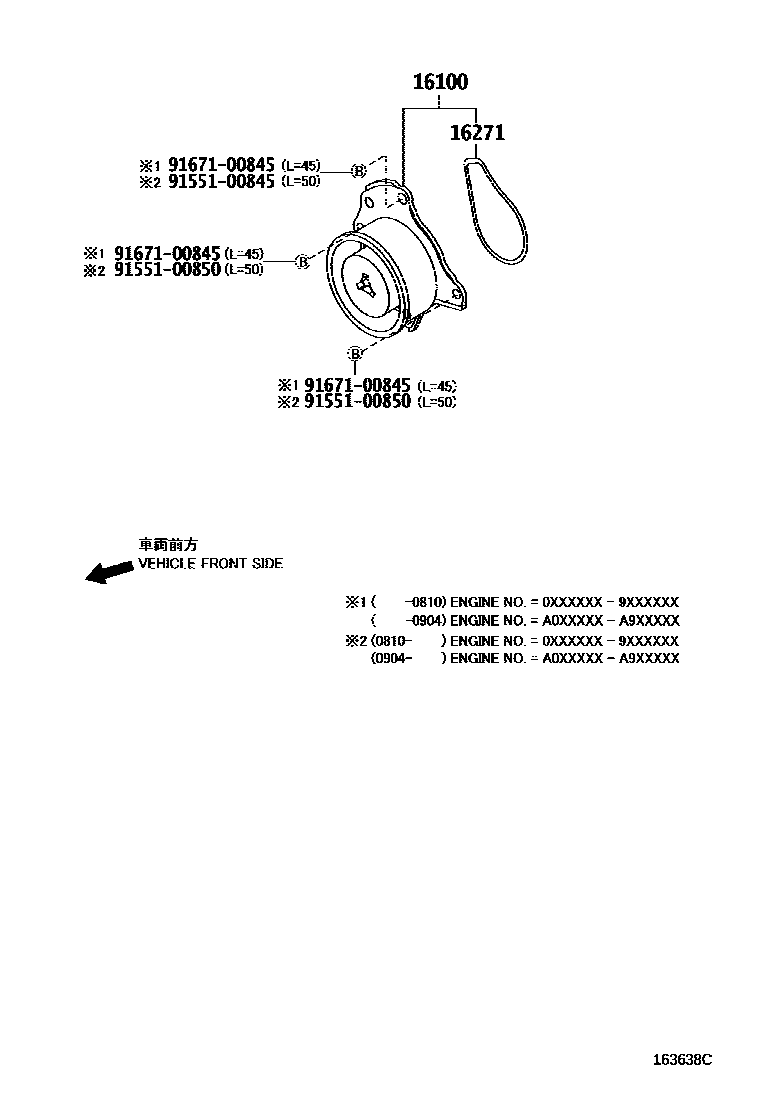

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-09141i2SZFE..SCP90..FRP200511

sub16100-29125

main16100-09450i1KRFE..KSP90..FRP200801-200904

*138

sub16100-09530

sub91551-00820

sub91551-00845

sub91551-00850

main16100-09450i1KRFE..KSP90..FRP200511-200801

sub16100-09530

sub91551-00820

sub91551-00845

sub91551-00850

main16100-09530i1KRFE..KSP90..FRP..5FS200904-201006

*138

sub16100-09531

main16100-39395i1NDTV..NLP90..FRP200511-200811

main16100-39525i1NDTV..NLP90..FRP200811

sub16100-39526

main16100-80004i1NRFE..NSP90..FRP200811

sub16100-80010

sub91552-81050

main16100-80007i1KRFE..KSP90..FRP..5F200811-201006

*132

16271GASKET, WATER PUMP

main16271-0Q010i1KRFE..KSP90..FRP200511-201006

*138

main16271-23020i2SZFE..SCP90..FRP200511

sub16271-23030

main16271-33020i1NDTV..NLP90..FRP200511-200811

main16271-33030i1NDTV..NLP90..FRP200811

main16271-40020i1KRFE..KSP90..FRP..5FS200511-201006

*132

main16271-47031i1NRFE..NSP90..FRP200811

9155100845

main91551-00845

9155100850

main91551-00850

9167100845

main91671-00845

5 parts on this diagram · 5 diagrams in section
