ENGINE OIL PUMP

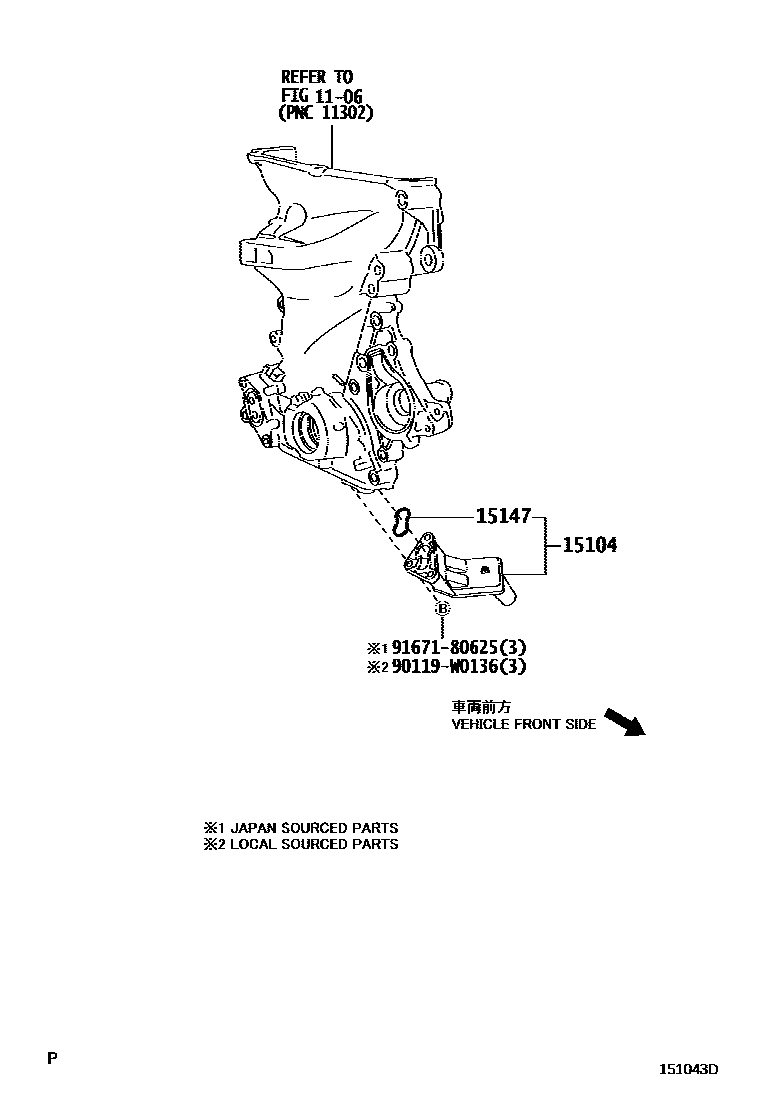

Parts diagram

1106

15104STRAINER SUB-ASSY, OIL

main15104-0Q010i200511-201006

(L)

main15104-23070i200511

main15104-33030i200511-200811

main15104-40030i200511-201006

(J)

main15104-47040i200811

15147GASKET, OIL STRAINER

main15147-23020i200511

main15147-40030i200511-201006

(J)

main15147-40040i200511-201006

(L)

90119W0136

main90119-W0136

9167180625

main91671-80625

5 parts on this diagram · 5 diagrams in section
