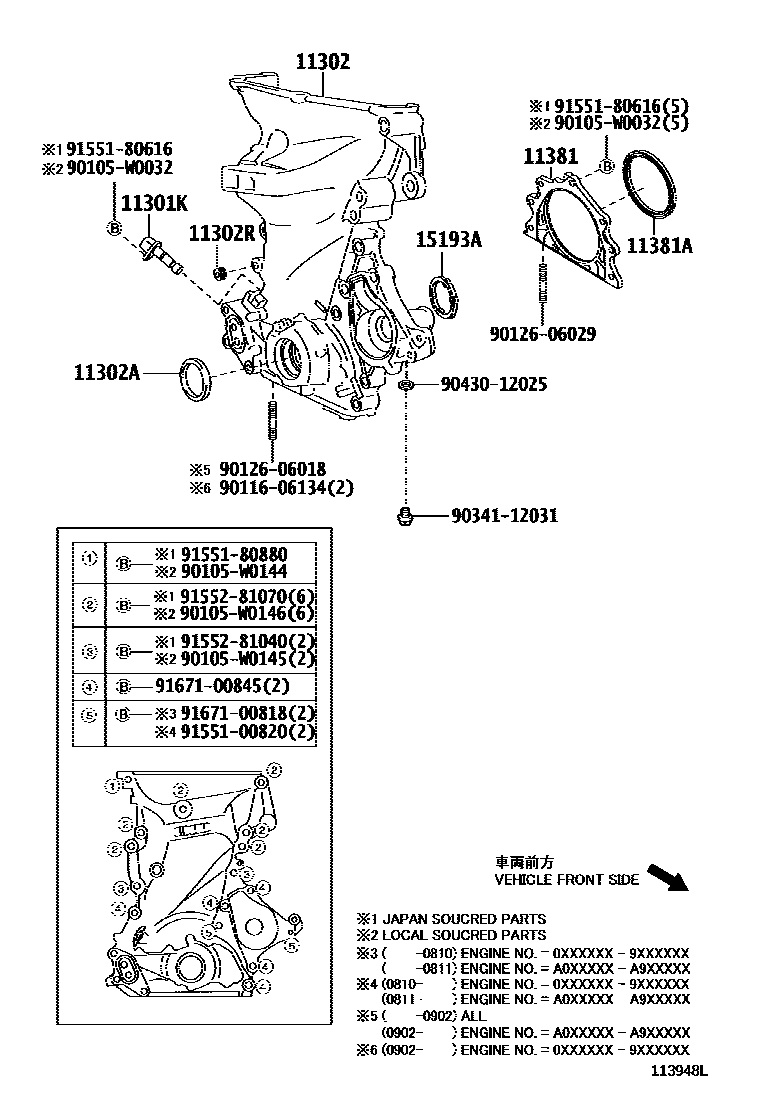

TIMING GEAR COVER & REAR END PLATE
11301KSENSOR, CRANK POSITION
(J)
(L)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
sub11310-0J021
sub11310-33012
*132
sub11310-47011
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
sub90311-35040
sub90311-25032
*132,*138,(J)
sub90311-40040
*138,(L)
11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
sub90311-W0014
15193AGASKET, OIL PUMP
90105W0032
main90105-W0032
90105W0144
main90105-W0144
90105W0145
main90105-W0145
90105W0146
main90105-W0146
9011606134
main90116-06134
9012606018
main90126-06018
9012606029
main90126-06029
9034112031
main90341-12031
9043012025
main90430-12025
9155100820
main91551-00820
9155180616
main91551-80616
9155180880
main91551-80880
9155281040
main91552-81040
9155281070
main91552-81070
9167100818
main91671-00818
9167100845
main91671-00845
23 parts on this diagram · 4 diagrams in section
