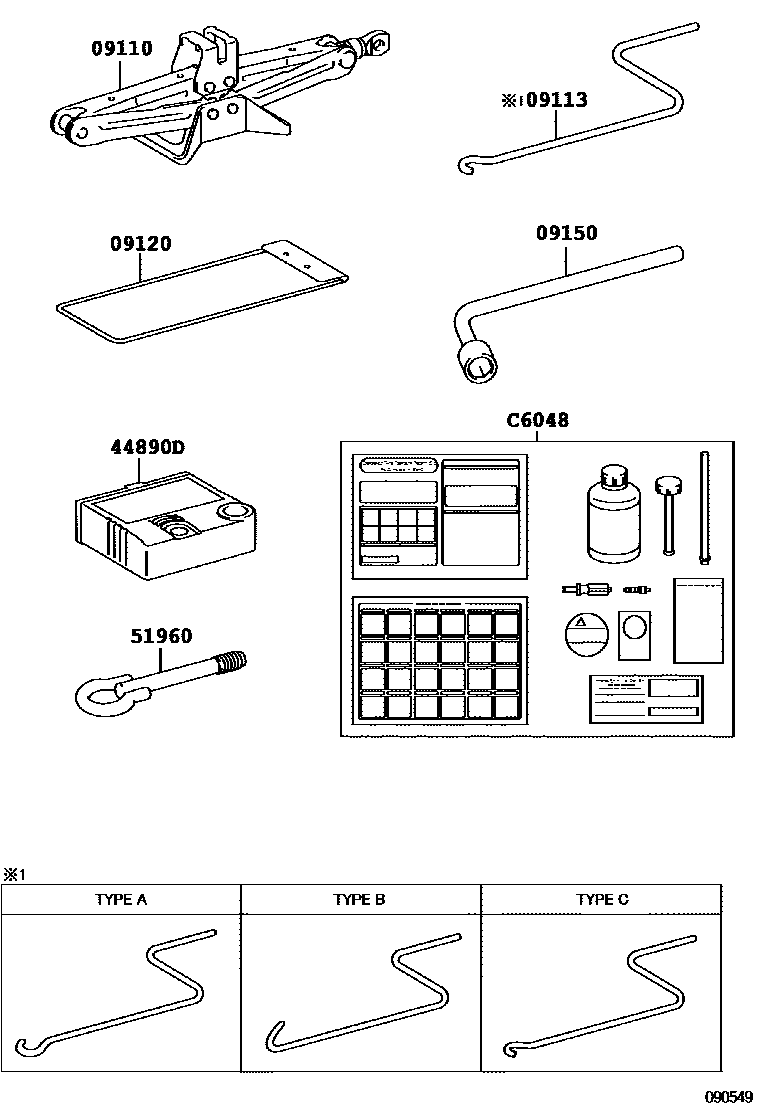

STANDARD TOOL

09110JACK ASSY

main09111-05010iKSP90,NLP90,SCP90..FRP200511-200706

main09111-05031iKSP90,NLP90,SCP90..FRP200706-200811

sub09111-0F020

main09111-47010iKSP90,NLP90,NSP90..FRP200906-201008

MADE IN JAPAN

main09111-52060iKSP90,NLP90,NSP90..FRP201009

MADE IN JAPAN

09113HANDLE, JACK

main09113-02051iKSP90,NLP90,NSP90..FRP201001

TYPE A:REFER ILLUST.

main09113-05010iKSP90,NLP90,SCP90..FRP200511-200811

main09113-52040iKSP90,NLP90,NSP90..FRP200906

TYPE C:REFER ILLUST.

sub09113-20050

09120BAG, TOOL

main09120-37030iKSP90,NLP90,SCP90..FRP200511-200811

09150WRENCH, HUB NUT BOX

main09150-05011iKSP90,NLP90,SCP90..FRP200511-200811

44890DCOMPRESSOR ASSY, AIR

main44890-47010iNLP90..FRP200511-200811

SPARE TIRE-REPAIR KIT

sub44890-42010

51960HOOK ASSY, FRONT

main51960-0D080iKSP90,NLP90,SCP90..FRP200511-200811

C6048REPAIR SET, TIRE

mainC604847020iNLP90..FRP200511-200811

SPARE TIRE-REPAIR KIT

subC6048-47021

7 parts on this diagram · 1 diagram in section
