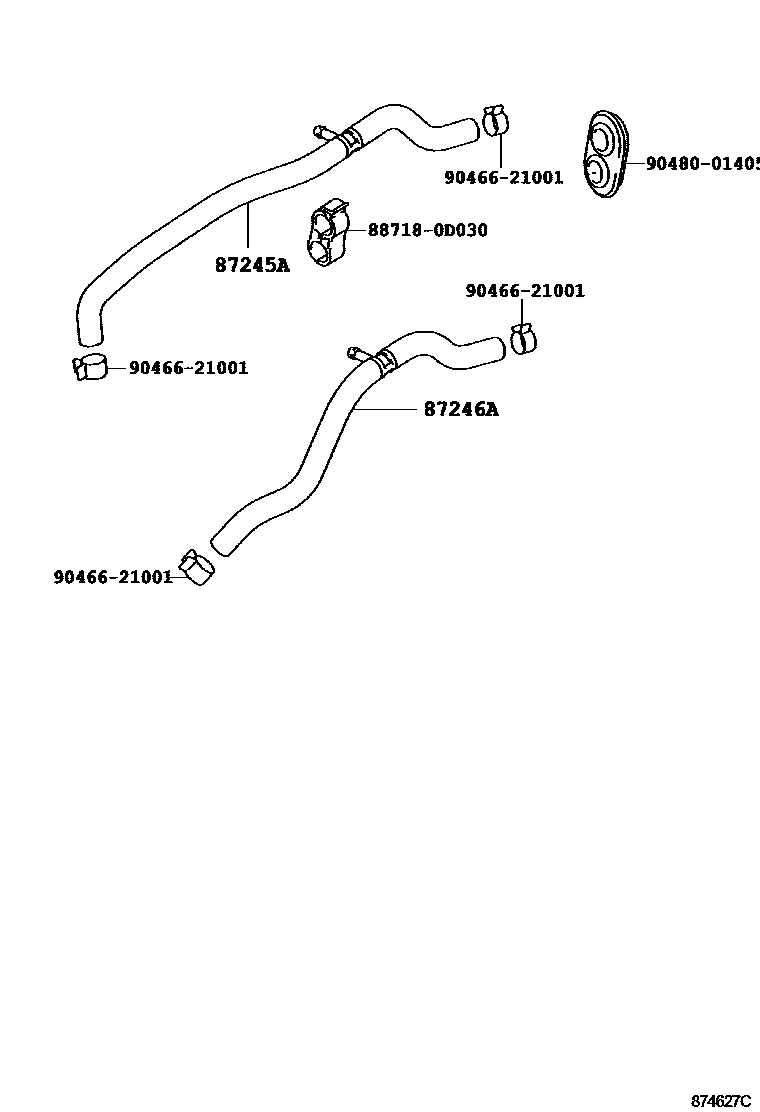

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1POWER HEATER

87245AHOSE, HEATER WATER, INLET A

main87209-0D010iSCP1#200101-200511

main87245-0D050iNLP10..FRP200302-200511

main87245-0D360iNLP10..FRP..LHD200302-200511

W(POWER HEATER)

87246AHOSE, HEATER WATER, OUTLET A

main87209-0D020iSCP1#200101-200511

main87209-0D030iSCP1#..LHD200101-200511

W(BOOST VENTILATOR)

main87245-0D060iNLP10..FRP200302-200511

887180D030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D030

9046621001

main90466-21001¥200

9048001405

main90480-01405¥0

5 parts on this diagram · 3 diagrams in section
