HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

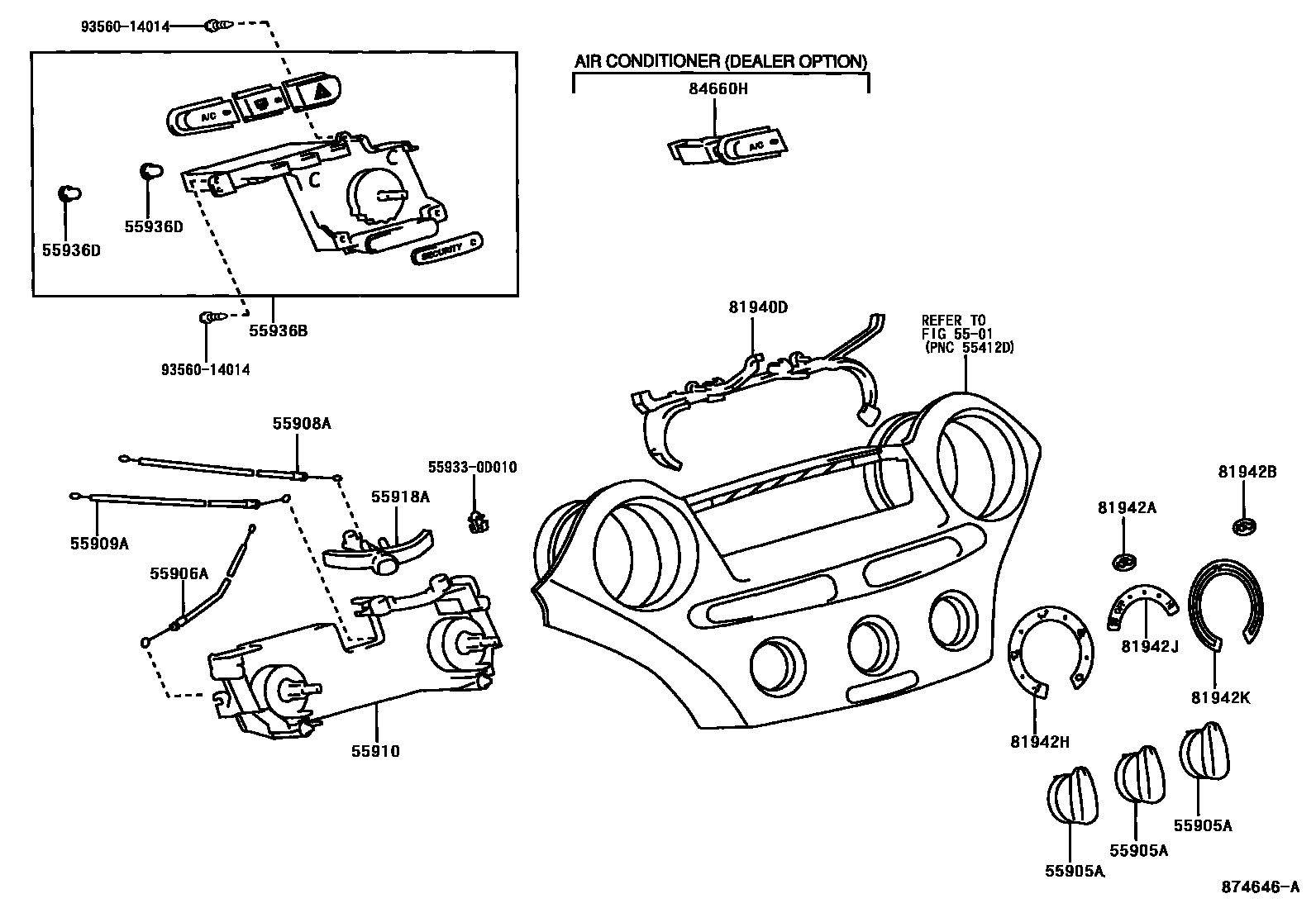

Parts diagram
5501
55905AKNOB, HEATER CONTROL
main55905-0D010i200101-200302
W(AIR CONDITIONER)
main55905-0D060i200302
W(AIR CONDITIONER)
main55905-0D070i200302
SILVER PAINTED
main55905-0D070i200302
W(AIR CONDITIONER),SILVER PAINTED
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-0D010i200101-200302
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-0D010i200101-200302
main55908-0D020i200101-200302
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-0D010i200101-200302
main55909-0D020i200101-200302
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
main55910-0D010i200101-200302
W(HEATER)
main55910-0D020i200302
W(BOOST VENTILATOR & AIR CONDITIONER)
main55910-0D020i200101-200302
W(AIR CONDITIONER)
main55910-0D030i200101-200302
main55910-0D060i200101-200302
W(BOOST VENTILATOR)
55918ALEVER, AIR INLET DAMPER CONTROL
main55918-0D010i200101-200111
sub55918-0D060
main55918-0D020i200101-200111
COLD SPEC
sub55918-0D060
main55918-0D060i200111-200302
main55918-0D090i200302
55936BSWITCH, CENTER CLUSTER MODULE
main84010-0D010i200101-200302
main84010-0D020i200101-200302
W(AIR CONDITIONER)
main84010-0D070i200302-200402
W(AIR CONDITIONER)
sub84010-0D071
main84010-0D071i200402
W(AIR CONDITIONER)
main84010-0D080i200302-200402
sub84010-0D081
main84010-0D081i200402
55936DBLUB, CENTER CLUSTER MODULE SWITCH
main84999-06010i200101-200511
12V 1.8W
81940DLENS ASSY, HEATER CONTROL
main81940-0D010i200101-200302
main81940-0D150i200302
81942ASHEET, HEATER CONTROL NAME, NO.1
main81942-0D010-B0i200302-200511
DK.GRAY,TRIM1#
main81942-0D010-B1i200101-200302
SHADOW GRAY,TRIM1#
main81942-0D010-H0i200101-200302
FRENCH TURQUOISE,TRIM7#
81942BSHEET, HEATER CONTROL NAME, NO.2
main81942-0D020-B0i200302-200511
DK.GRAY,TRIM1#
main81942-0D020-B1i200101-200302
SHADOW GRAY,TRIM1#
main81942-0D020-H0i200101-200302
FRENCH TURQUOISE,TRIM7#
81942HSHEET, HEATER CONTROL NAME, NO.3
main81942-0D030-B1i200101-200110
SHADOW GRAY,TRIM1#
sub81942-0D080
main81942-0D030-H0i200101-200110
FRENCH TURQUOISE,TRIM7#
sub81942-0D080
main81942-0D070-B1i200101-200302
SHADOW GRAY,TRIM1#
main81942-0D070-H0i200101-200302
FRENCH TURQUOISE,TRIM7#
main81942-0D080-B1i200101-200302
W(HEATER),SHADOW GRAY,TRIM1#
main81942-0D080-B1i200110-200302
SHADOW GRAY,TRIM1#
main81942-0D080-H0i200110-200302
FRENCH TURQUOISE,TRIM7#
main81942-0D080-H0i200101-200302
W(HEATER),FRENCH TURQUOISE,TRIM7#
81942JSHEET, HEATER CONTROL NAME, NO.4
main81942-0D040-B1i200101-200302
SHADOW GRAY,TRIM1#
main81942-0D040-H0i200101-200302
FRENCH TURQUOISE,TRIM7#
81942KSHEET, HEATER CONTROL NAME, NO.5
main81942-0D050-B1i200101-200302
W(HEATER),SHADOW GRAY,TRIM1#
main81942-0D050-B1i200101-200302
SHADOW GRAY,TRIM1#
main81942-0D050-H0i200101-200302
FRENCH TURQUOISE,TRIM7#
main81942-0D050-H0i200101-200302
W(HEATER),FRENCH TURQUOISE,TRIM7#
main81942-0D060-B1i200101-200302
SHADOW GRAY,TRIM1#
main81942-0D060-H0i200101-200302
FRENCH TURQUOISE,TRIM7#
84660HSWITCH ASSY, COOLER CONTROL
main84660-0D010i200302
main84660-52010i200101-200302
559330D010GUIDE, LEVER, NO.2
main55933-0D010
9356014014
main93560-14014

18 parts on this diagram · 8 diagrams in section
