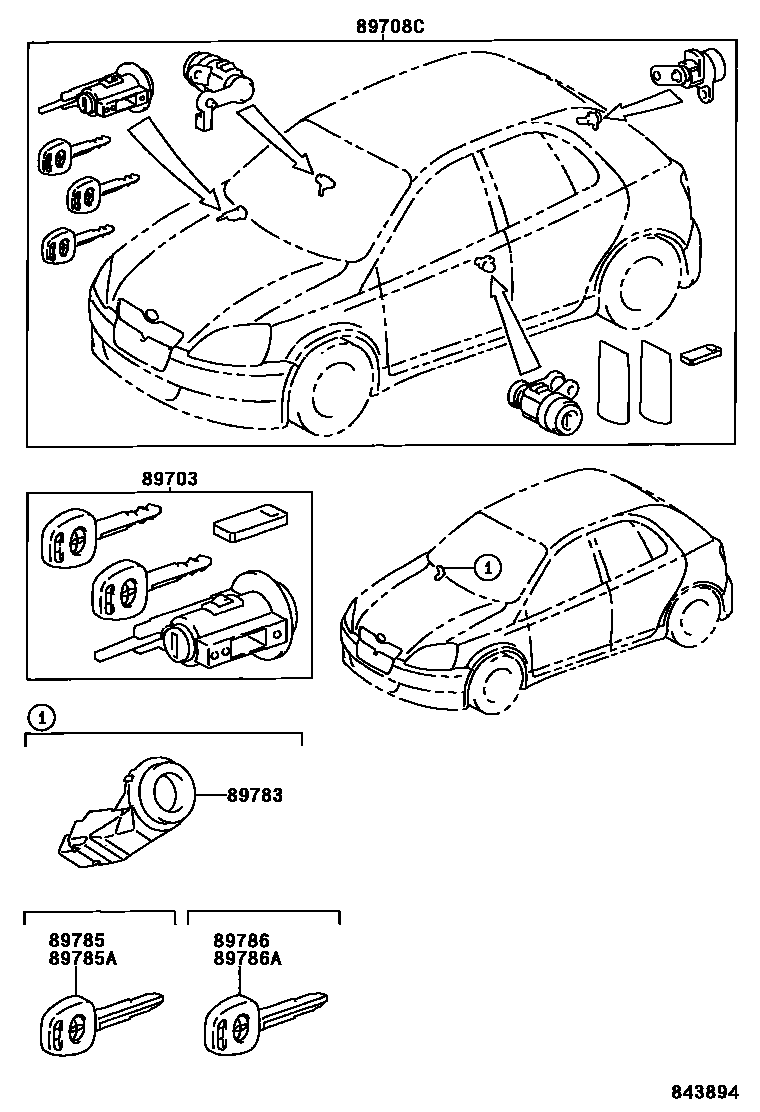

ANTI-THEFT DEVICE

0001 1W/O(KEY LESS ENTRY) 0002 1W(KEY LESS ENTRY)-W/O(DOUBLE-0003 1W(KEY LESS ENTRY)-W(DOUBLE-LO

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-0D010iSCP1#200101-200302

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-0D010iSCP1#200101-200302

89783AMPLIFIER, TRANSPONDER KEY

main89783-0D010iSCP1#200101-200302

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-05020iSCP1#200101-200302

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-05030iSCP1#200101-200302

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-05020iSCP1#200101-200302

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-05030iSCP1#200101-200302

7 parts on this diagram · 3 diagrams in section
