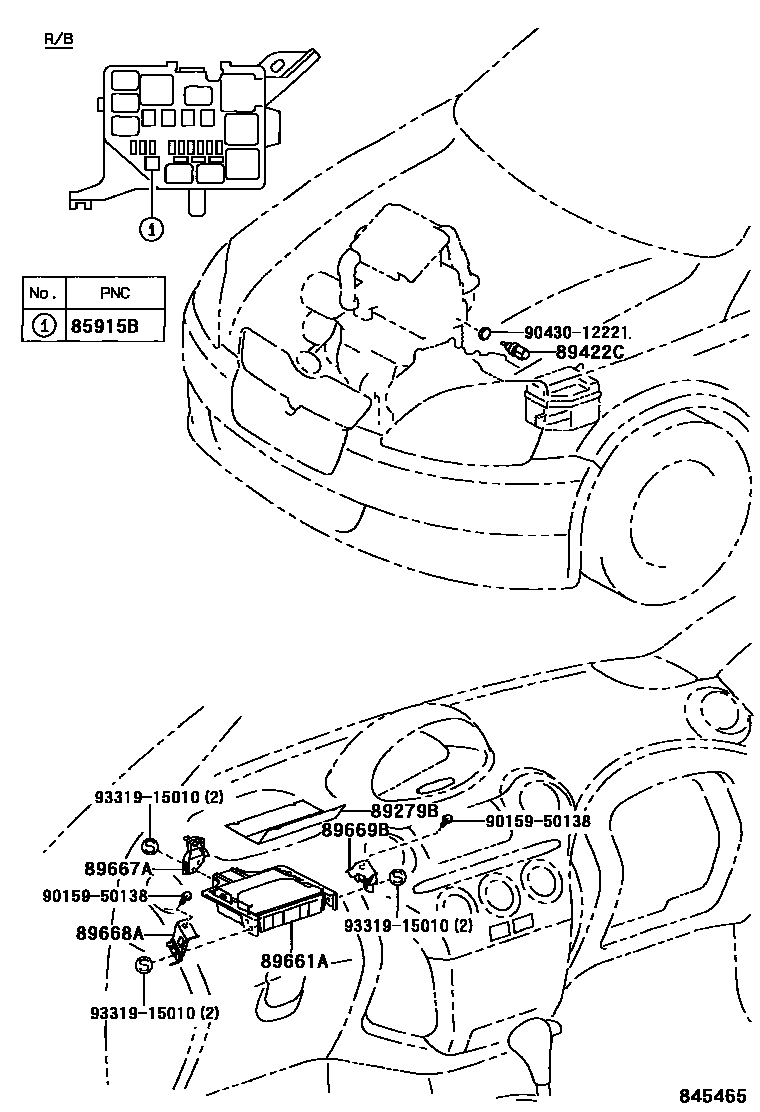

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90080-87019iNLP10..FRP200302

sub90080-87021

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-52050iNLP10..FRP200302

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iNLP10..FRP200302

89661ACOMPUTER, ENGINE CONTROL

main89661-0D170iNLP10..FRP200302-200311

sub89661-0D520

main89661-0D171iNLP10..FRP200311

sub89661-0D530

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52030iNLP10..FRP200302

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52030iNLP10..FRP..RHD200302

main89668-52050iNLP10..FRP..LHD200302

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52030iNLP10..FRP..RHD200302

main89669-52040iNLP10..FRP..LHD200302

9015950138

main90159-50138

9043012221

main90430-12221

9331915010

main93319-15010

10 parts on this diagram · 2 diagrams in section
