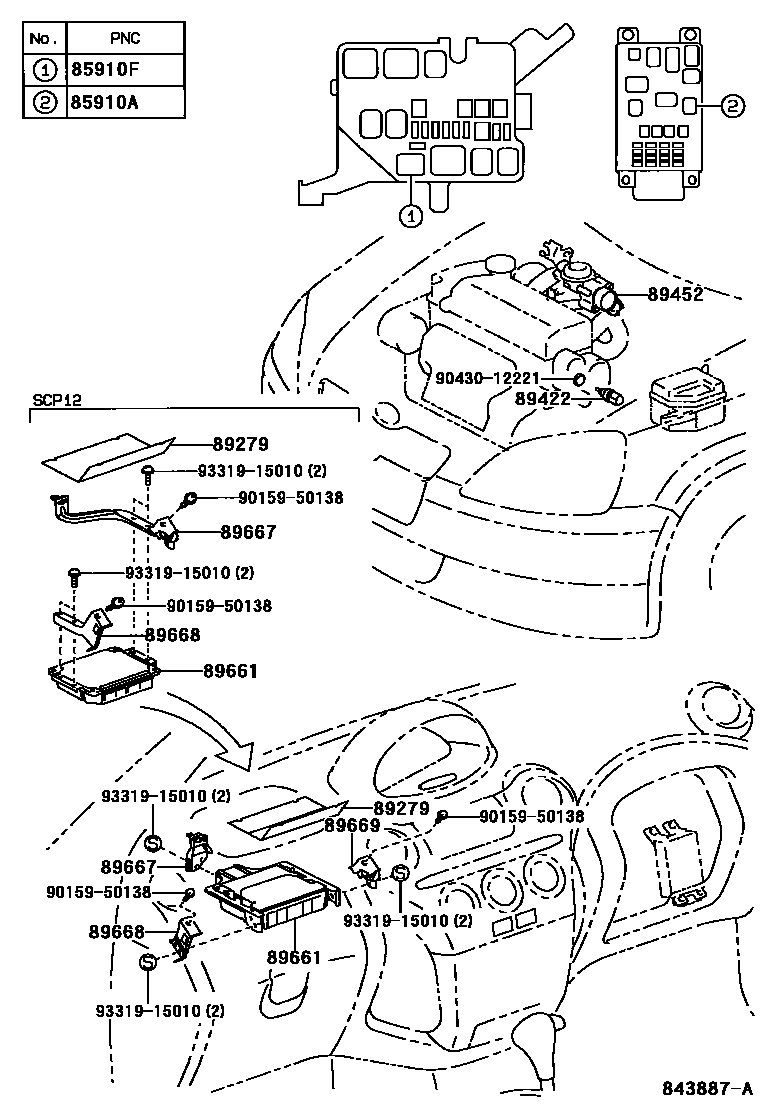

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87013iSCP1#200101-200302

PART NUMBER LABEL=90080-87013

sub90080-87021

main90080-87019iSCP1#200101-200302

PART NUMBER LABEL=90080-87019

sub90080-87021

85910FRELAY, COMPUTER (FOR EFI)

main90080-87013iSCP1#200101-200302

PART NUMBER LABEL=90080-87013

sub90080-87021

main90080-87019iSCP10..FRP..5FS;SCP10..FRP..TSGS;SCP12..FRP..TRSTD200101-200302

PART NUMBER LABEL=90080-87019

sub90080-87021

89279COVER, ENGINE CONTROL COMPUTER

main89279-52050iSCP1#200101-200302

main89279-52110iSCP10..FRP..5FS200302

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSCP1#200101-200302

main89422-16010iSCP1#..FRP200302-200305

DENSO

main89422-22030iSCP1#..FRP200302-200305

NTC

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-0D010iSCP1#200101-200302

89661COMPUTER, ENGINE CONTROL

main89661-0D010iSCP10200101-200104

PART NUMBER LABEL=89661-0D010

sub89661-0D011

main89661-0D011iSCP10200104-200201

PART NUMBER LABEL=89661-0D011

sub89661-0D012

main89661-0D012iSCP10200201-200302

PART NUMBER LABEL=89661-0D012

sub89661-0D013

main89661-0D020iSCP10..LHD200101-200104

PART NUMBER LABEL=89661-0D020

sub89661-0D021

main89661-0D021iSCP10..LHD200104-200201

PART NUMBER LABEL=89661-0D021

sub89661-0D022

main89661-0D022iSCP10..LHD200201-200302

PART NUMBER LABEL=89661-0D022

sub89661-0D023

main89661-0D070iSCP12..5F200205-200407

PART NUMBER LABEL=89661-0D070

sub89661-0D071

main89661-0D071iSCP12..FRP..5F200407

PART NUMBER LABEL=89661-0D071

main89661-0D080iSCP12..LHD..4FC200205-200407

PART NUMBER LABEL=89661-0D080

sub89661-0D081

main89661-0D081iSCP12..FRP..LHD..4FC200407

PART NUMBER LABEL=89661-0D081

main89661-0D090iSCP12..FRP..4FC200205-200407

PART NUMBER LABEL=89661-0D090

sub89661-0D091

main89661-0D091iSCP12..FRP..4FC200407

PART NUMBER LABEL=89661-0D091

main89661-0D100iSCP12..FRP..LHD..5F200205-200302

PART NUMBER LABEL=89661-0D100

main89661-0D110iSCP12..FRP..LHD..4FC200205-200302

PART NUMBER LABEL=89661-0D110

main89661-0D120iSCP12..FRP..LHD..4FC200205-200302

PART NUMBER LABEL=89661-0D120

main89661-0D180iSCP10..FRP..5FS200302

PART NUMBER LABEL=89661-0D180

main89661-0D190iSCP10..FRP..LHD..5FS200302

PART NUMBER LABEL=89661-0D190

main89661-0D200iSCP10..FRP..TSGS200306

PART NUMBER LABEL=89661-0D200

main89661-0D210iSCP10..FRP..(SOL,TRSTD)..5F200302-200404

PART NUMBER LABEL=89661-0D210

sub89661-0D211

main89661-0D211iSCP10..FRP..(SOL,TRSTD)..5F200404-200411

PART NUMBER LABEL=89661-0D211

sub89661-0D212

main89661-0D212iSCP10..FRP..(SOL,TRSTD)..5F200411

PART NUMBER LABEL=89661-0D212

sub89661-0D393

main89661-0D220iSCP10..FRP..LHD..(SOL,TRSTD)..5F200302-200404

PART NUMBER LABEL=89661-0D220

sub89661-0D221

main89661-0D221iSCP10..FRP..LHD..(SOL,TRSTD)..5F200404-200411

PART NUMBER LABEL=89661-0D221

sub89661-0D222

main89661-0D222iSCP10..FRP..LHD..(SOL,TRSTD)..5F200411

PART NUMBER LABEL=89661-0D222

sub89661-0D223

main89661-0D380iSCP12..FRP..LHD..5D..5F200307

PART NUMBER LABEL=89661-0D380

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52030iSCP10..FRP..(SOL,TRSTD)..5F200101-200302

main89667-52060iSCP12..FRP..LHD;SCP10..FRP..TSGS200205-200302

main89667-52070iSCP12..RHD200205-200302

main89667-52140iSCP10..FRP..RHD..5FS200302

main89667-52150iSCP10..FRP..LHD..5FS200302

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52030iSCP10..RHD200101-200302

main89668-52050iSCP10..FRP..LHD..(SOL,TRSTD)..5F200101-200302

main89668-52060iSCP12..LHD200205-200302

main89668-52090iSCP12..RHD200205-200302

main89668-52150iSCP10..FRP..RHD..5FS200302

main89668-52160iSCP10..FRP..LHD..5FS200302

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52030iSCP10..RHD200101-200302

main89669-52040iSCP10..FRP..LHD..(SOL,TRSTD)..5F200101-200302

main89669-52100iSCP10..FRP..RHD..5FS200302

main89669-52110iSCP10..FRP..LHD..5FS200302

9015950138

main90159-50138

9043012221

main90430-12221

9331915010

main93319-15010

12 parts on this diagram · 3 diagrams in section
