METER

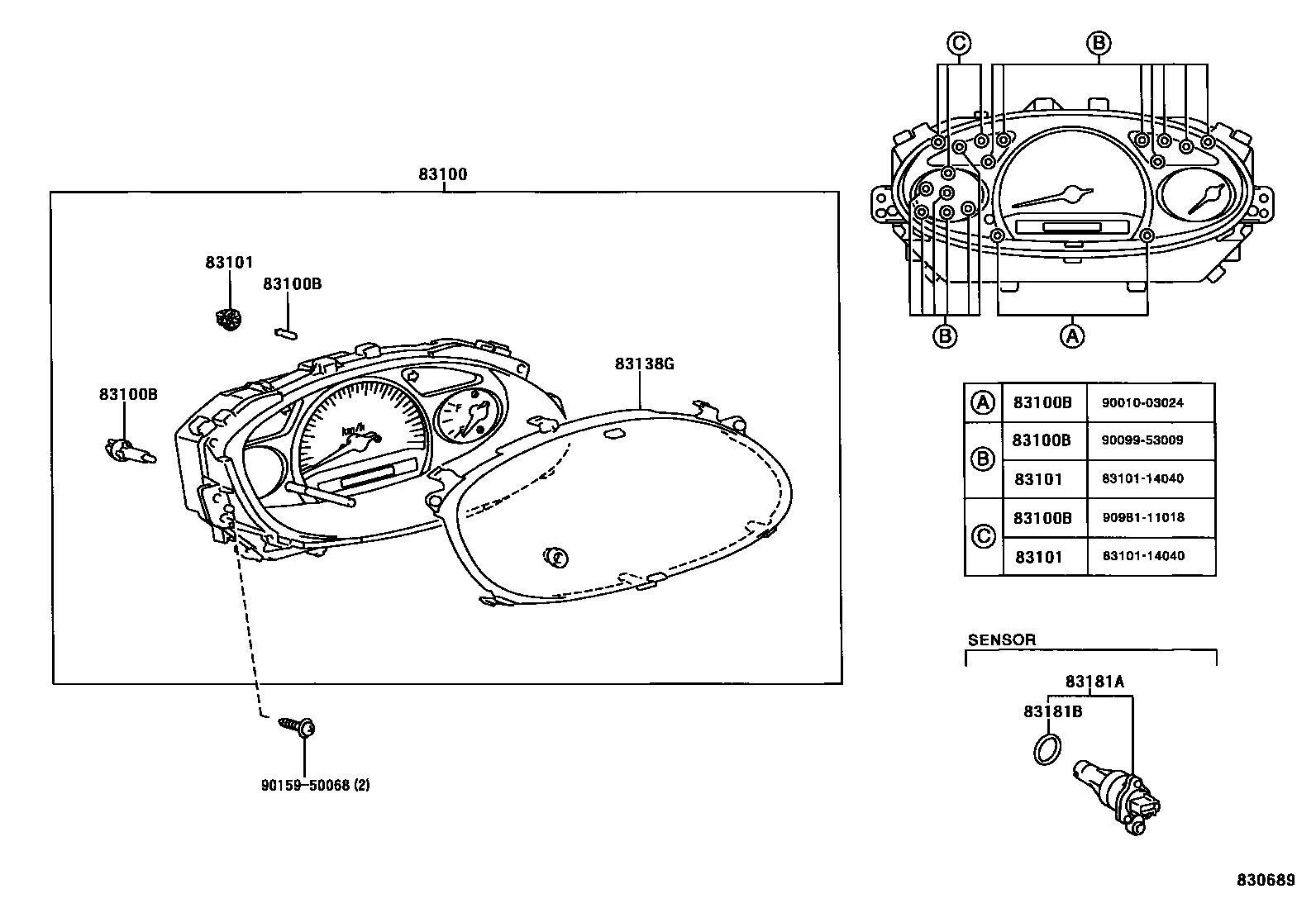

Parts diagram
83100METER ASSY, COMBINATION
main83800-0D010i200101-200302
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D020i200101-200302
DIGITAL METER,MPH & KM/H & W(POWER STERING)
main83800-0D030i200101-200302
DIGITAL METER,KM/H
main83800-0D040i200101-200302
DIGITAL METER,KM/H
main83800-0D050i200101-200302
DIGITAL METER,MPH & KM/H
main83800-0D330i200302-200312
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D331i200312
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D340i200302
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D350i200302
DIGITAL METER,MPH & KM/H & W(POWER STERING)
main83800-0D360i200302-200312
DIGITAL METER,KM/H
main83800-0D361i200312
DIGITAL METER,KM/H
main83800-0D370i200302
DIGITAL METER,KM/H
main83800-0D380i200302
DIGITAL METER,MPH & KM/H
main83800-0D390i200302-200401
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D391i200401
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D400i200302
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D410i200302
DIGITAL METER,MPH & KM/H & W(POWER STERING)
main83800-0D420i200302-200312
DIGITAL METER,KM/H
main83800-0D421i200312
DIGITAL METER,KM/H
main83800-0D430i200302
DIGITAL METER,KM/H
main83800-0D440i200302
DIGITAL METER,MPH & KM/H
main83800-0D450i200302-200312
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D451i200312
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D460i200302
DIGITAL METER,KM/H & W(POWER STERING)
main83800-0D470i200302
DIGITAL METER,MPH & KM/H & W(POWER STERING)
main83800-0D600i200306-200312
main83800-0D601i200312
main83800-52540i200101-200302
ANALOGUE METER,KM/H OR W(POWER STERING)
main83800-52550i200101-200302
ANALOGUE METER,MPH & KM/H OR W(POWER STERING)
main83800-52570i200101-200302
ANALOGUE METER,KM/H
main83800-52580i200101-200302
main83800-5C480i200302-200310
ANALOGUE METER,KM/H & W(POWER STERING)
main83800-5C481i200310
ANALOGUE METER,KM/H & W(POWER STERING)
main83800-5C490i200302-200310
ANALOGUE METER,MPH & KM/H & W(POWER STERING)
main83800-5C491i200310
ANALOGUE METER,MPH & KM/H & W(POWER STERING)
main83800-5C500i200302-200310
ANALOGUE METER,KM/H
main83800-5C501i200310
ANALOGUE METER,KM/H
main83800-5C510i200302-200310
ANALOGUE METER,MPH & KM/H
main83800-5C511i200310
ANALOGUE METER,MPH & KM/H
83100BBULB, COMBINATION METER, NO.1
main90010-03024i200302-200308
14V 1.4W,TYPE A:REFER TO ILLUSTRATION
main90010-03031i200308
14V 2.0W,TYPE A:REFER TO ILLUSTRATION
main90010-03067i200302
14V 1.12W,TYPE A:REFER TO ILLUSTRATION
main90011-03004i200101-200302
12V 1.12W,TYPE A:REFER TO ILLUSTRATION
main90099-53009i200306
14V0.84W W/O(SOCKET)
main90981-11018i200302
12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14040i200101-200302
83138GLASS, SPEEDOMETER
main83852-0D020i200302-200312
sub83852-52110
83138GGLASS, COMBINATION METER
main83852-0D010i200302
DIGITAL METER
main83852-52040i200302
ANALOGUE METER
83181ASENSOR, SPEEDOMETER
main83181-12020i200101-200302
83181BRING, O (FOR SPEEDOMETER SENSOR)
main96711-24030i200101-200302
9015950068
main90159-50068

8 parts on this diagram · 5 diagrams in section
