WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1FLOOR & ROOF 0008 1FLOOR & ROOF 0009 1DOOR 0010 1DOOR 0011 1CLAMP & BRACKET 0012 1CLAMP & BRACKET 0013 1CONNECTOR

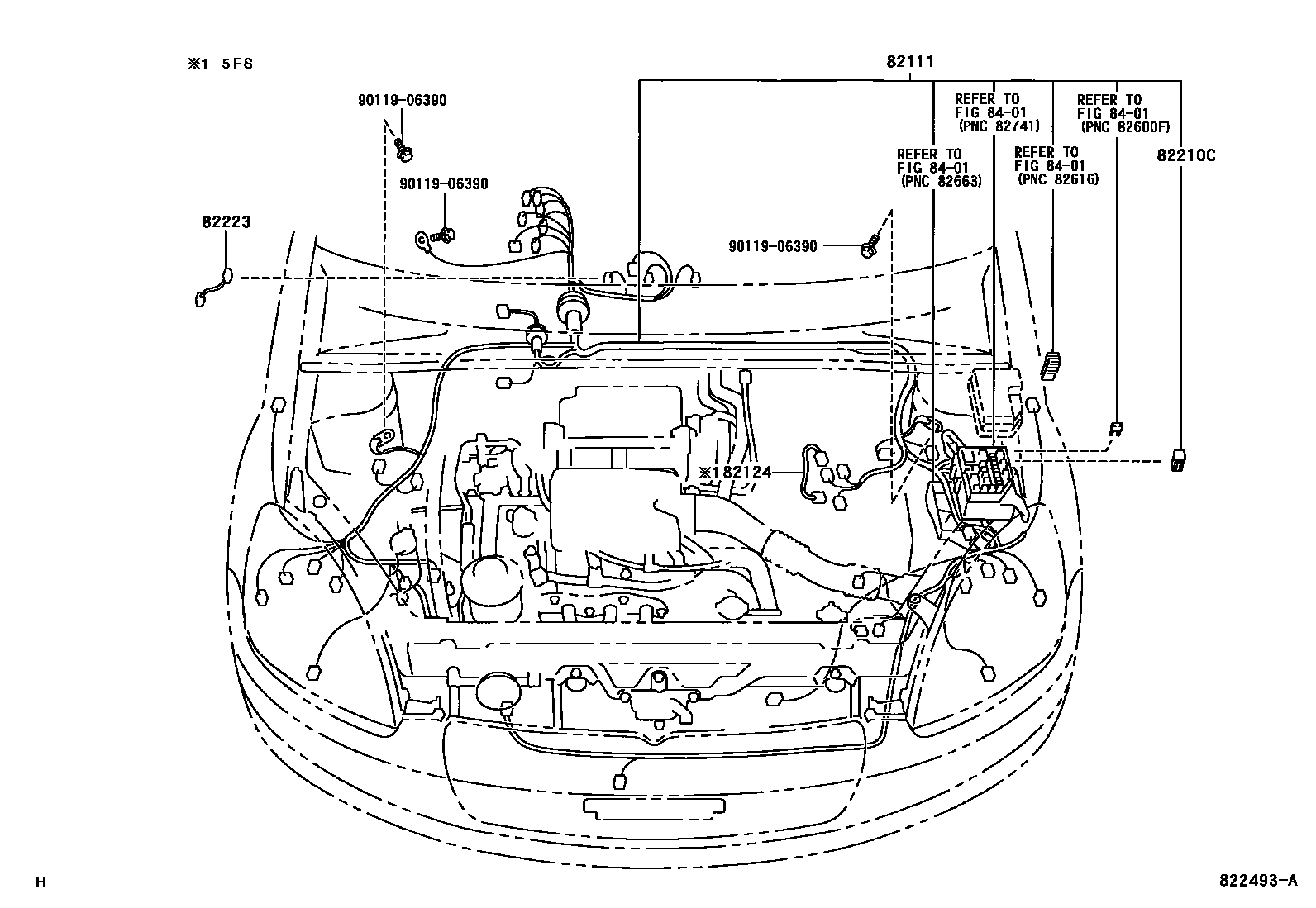

82111WIRE, ENGINE ROOM MAIN

main82111-0D010iSCP1#..LHD..(LUNA,TRSTD)200101-200302

main82111-0D020iSCP12..LHD..SOL..5F200205-200302

main82111-0D020iSCP10..LHD;SCP12..LHD..LUNA200101-200302

W(POWER STEERING)

main82111-0D040iSCP10..LHD200101-200205

W(ABS)

main82111-0D041iSCP1#..LHD..5F200205-200302

W(ABS)

main82111-0D050iSCP10..LHD200101-200205

COLD SPEC & W(ABS)

main82111-0D060iSCP10..LHD200101-200205

COLD SPEC & W(DAYTIME RUNNING LIGHT SYSTEM)

main82111-0D061iSCP1#..LHD..5F200205-200302

COLD SPEC & W(DAYTIME RUNNING LIGHT SYSTEM)

main82111-0D070iSCP10..LHD200101-200205

COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT)

main82111-0D071iSCP1#..LHD..5F200205-200302

COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT)

main82111-0D080iSCP1#..LHD..5F200101-200302

W(MANUAL AIR CONDITIONER)

main82111-0D090iSCP10..LHD200101-200205

W(ABS & MANUAL AIR CONDITIONER)

main82111-0D091iSCP1#..LHD..5F200205-200302

W(ABS & MANUAL AIR CONDITIONER)

main82111-0D100iSCP1#..RHD..5F200101-200302

main82111-0D110iSCP10..RHD200101-200205

W(ABS)

main82111-0D111iSCP1#..RHD..5F200205-200302

W(ABS)

main82111-0D120iSCP1#..RHD..5F200101-200302

W(MANUAL AIR CONDITIONER)

main82111-0D130iSCP10..RHD200101-200205

W(ABS & MANUAL AIR CONDITIONER)

main82111-0D131iSCP1#..RHD..5F200205-200302

W(ABS & MANUAL AIR CONDITIONER)

main82111-0D160iSCP12..LHD..4FC200205-200302

main82111-0D180iSCP12..LHD..4FC200205-200302

W(ABS)

main82111-0D200iSCP12..LHD..4FC200205-200302

COLD SPEC & W(DAYTIME RUNNING LIGHT SYSTEM)

main82111-0D210iSCP12..LHD..4FC200205-200302

COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT)

main82111-0D220iSCP12..LHD..4FC200205-200302

W(MANUAL AIR CONDITIONER)

main82111-0D230iSCP12..LHD..4FC200205-200302

W(ABS & MANUAL AIR CONDITIONER)

main82111-0D240iSCP12..RHD..4FC200205-200302

main82111-0D250iSCP12..RHD..4FC200205-200302

W(ABS)

main82111-0D260iSCP12..RHD..4FC200205-200302

W(MANUAL AIR CONDITIONER)

main82111-0D270iSCP12..RHD..4FC200205-200302

W(ABS & MANUAL AIR CONDITIONER)

main82111-0D410iSCP1#..FRP..LHD..TRSTD..5F200302

PART NUMBER LABEL=82111-0D410

main82111-0D430iSCP1#..FRP..LHD..(SOL,TRSTD)..5F200302

PART NUMBER LABEL=82111-0D430

main82111-0D450iSCP1#..FRP..LHD..(SOL,TRSTD)..5F200302

PART NUMBER LABEL=82111-0D450

main82111-0D460iSCP10..FRP..TSGS200306

PART NUMBER LABEL=82111-0D460

main82111-0D480iSCP1#..FRP..LHD..(SOL,TRSTD)..5F200302-200402

PART NUMBER LABEL=82111-0D480

main82111-0D481iSCP1#..FRP..LHD..(SOL,TRSTD)..5F200402

PART NUMBER LABEL=82111-0D481

main82111-0D500iSCP12..FRP..LHD..4FC200302

PART NUMBER LABEL=82111-0D500

main82111-0D520iSCP12..FRP..LHD..4FC200302

PART NUMBER LABEL=82111-0D520

main82111-0D540iSCP12..FRP..LHD..4FC200302-200402

PART NUMBER LABEL=82111-0D540

main82111-0D541iSCP12..FRP..LHD..4FC200402

PART NUMBER LABEL=82111-0D541

main82111-0D560iSCP10..FRP..LHD..5FS200302

PART NUMBER LABEL=82111-0D560

main82111-0D580iSCP10..FRP..LHD..5FS200302

PART NUMBER LABEL=82111-0D580

main82111-0D600iSCP10..FRP..LHD..5FS200302-200402

PART NUMBER LABEL=82111-0D600

main82111-0D601iSCP10..FRP..LHD..5FS200402

PART NUMBER LABEL=82111-0D601

main82111-0D620iNLP10..FRP..LHD200302-200308

PART NUMBER LABEL=82111-0D620

main82111-0D621iNLP10..FRP..LHD200308

PART NUMBER LABEL=82111-0D621

main82111-0D640iNLP10..FRP..LHD200302-200308

PART NUMBER LABEL=82111-0D640

main82111-0D641iNLP10..FRP..LHD200308

PART NUMBER LABEL=82111-0D641

main82111-0D660iNLP10..FRP..LHD200302-200308

PART NUMBER LABEL=82111-0D660

main82111-0D661iNLP10..FRP..LHD200308

PART NUMBER LABEL=82111-0D661

main82111-0D700iNLP10..FRP..LHD200302-200308

PART NUMBER LABEL=82111-0D700

main82111-0D701iNLP10..FRP..LHD200308

PART NUMBER LABEL=82111-0D701

main82111-0D720iNLP10..FRP..LHD200302-200308

PART NUMBER LABEL=82111-0D720

main82111-0D721iNLP10..FRP..LHD200308

PART NUMBER LABEL=82111-0D721

main82111-0D740iSCP1#..FRP..RHD..5F200302

PART NUMBER LABEL=82111-0D740

main82111-0D760iSCP1#..FRP..RHD..5F200302

PART NUMBER LABEL=82111-0D760

main82111-0D780iSCP12..FRP..RHD..4FC200302

PART NUMBER LABEL=82111-0D780

main82111-0D800iSCP12..FRP..RHD..4FC200302

PART NUMBER LABEL=82111-0D800

main82111-0D820iSCP10..FRP..RHD..5FS200302

PART NUMBER LABEL=82111-0D820

main82111-0D840iSCP10..FRP..RHD..5FS200302

PART NUMBER LABEL=82111-0D840

main82111-0D860iNLP10..FRP..RHD200302-200308

PART NUMBER LABEL=82111-0D860

main82111-0D861iNLP10..FRP..RHD200308

PART NUMBER LABEL=82111-0D861

main82111-0D880iNLP10..FRP..RHD200302-200308

PART NUMBER LABEL=82111-0D880

main82111-0D881iNLP10..FRP..RHD200308

PART NUMBER LABEL=82111-0D881

82124WIRE, ENGINE, NO.4

main82124-0D010iSCP10..FRP..5FS200302

82210CFUSIBLE LINK

main90080-82033iNLP10..FRP..LHD200302

25A,MINI FUSE

main90982-08202iNLP10,SCP1#..FRP¥700200101-200302

60A,TERM.:MALE,YEL

main90982-08246iSCP10..RHD;SCP10..LHD..(LUNA,TRSTD)¥440200101-200108

100A,TERM.:MALE,BLUE

main90982-08274iSCP1#¥480200101-200302

120A,TERM.:MALE,WHT

main90982-08280iNLP10,SCP1#..FRP¥590200205-200302

30A,TERM.:FEMALE,PNK,YAZAKI

main90982-08280iSCP10¥590200101-200302

30A,TERM.:FEMALE,PNK

main90982-08282iNLP10,SCP1#..FRP..(SOL,TRSTD)¥440200101-200302

50A,TERM.:FEMALE,RED,YAZAKI

main90982-08283iSCP12¥440200205-200302

30A,TERM.:FEMALE,PNK,TAIHEIYO

main90982-08284iNLP10,SCP1#..FRP¥590200101-200302

40A,TERM.:FEMALE,GRN

main90982-08285iSCP1#¥440200101-200302

50A,FEMALE,RED,32VDC,TAIHEIYO

82223WIRE, SWITCH

main82223-52040iNLP10..FRP¥590200302

8401

9011906390

main90119-06390¥70

6 parts on this diagram · 13 diagrams in section
