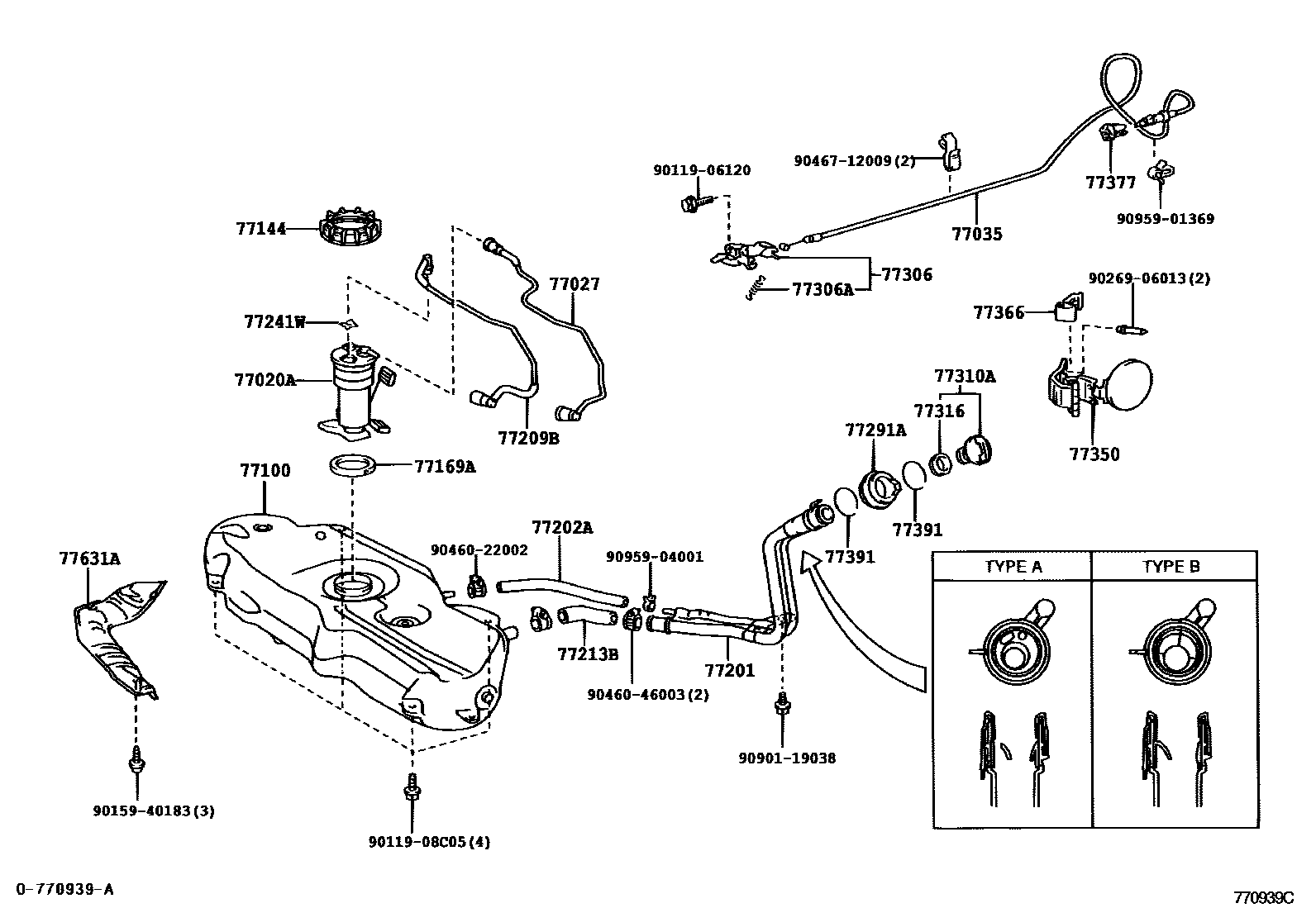

FUEL TANK & TUBE
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
PNC 77201 = TYPE A:REFER TO ILLUSTRATION
INFERIOR GASOLINE SPEC = PNC 77201 = TYPE B:REFER TO ILLUSTRATION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
INFERIOR GASOLINE SPEC
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201PIPE SUB-ASSY, FUEL TANK INLET
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=320
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77631APROTECTOR, FUEL TANK, LOWER CENTER
9011906120
9011908C05
9015940183
9026906013
9046022002
9046046003
9046712009
9090119038
9095901369
9095904001
31 parts on this diagram · 4 diagrams in section
