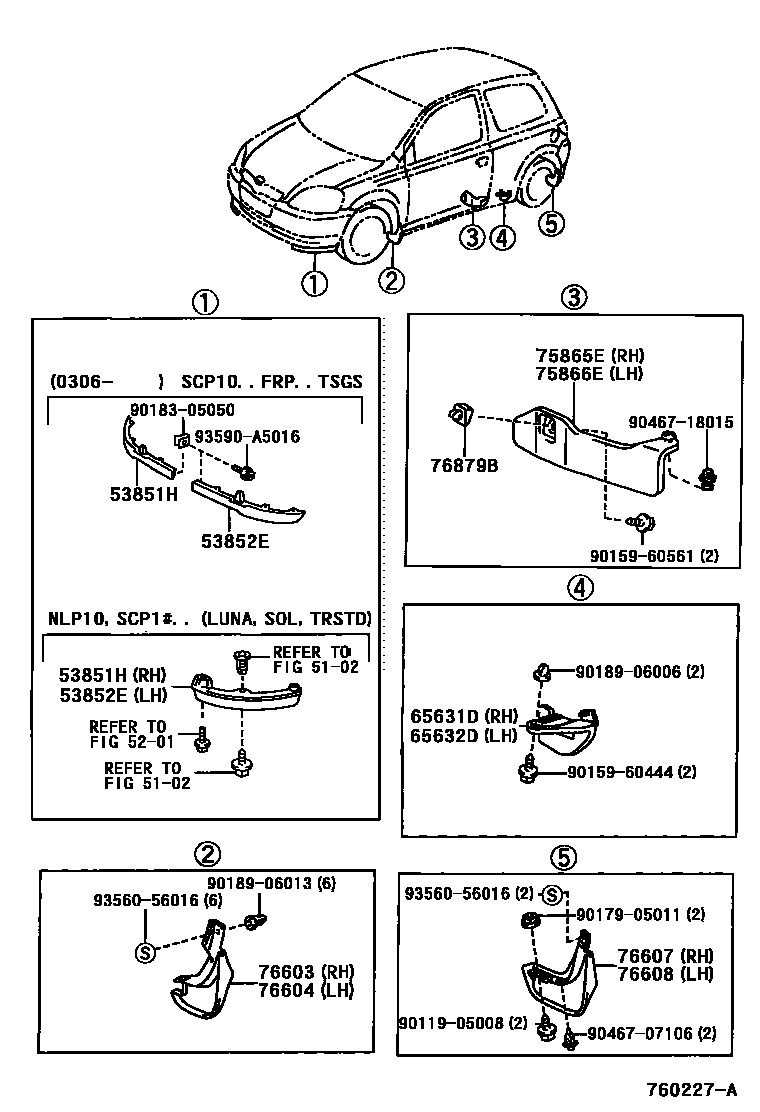

MUDGUARD & SPOILER

5102

5201

53851HPAD, FRONT SPOILER, RH

main53851-0D010iSCP1#200101-200302

main53851-52110iSCP10..FRP..TSGS200306

53852EPAD, FRONT SPOILER, LH

main53852-0D010iSCP1#200101-200302

main53852-52110iSCP10..FRP..TSGS200306

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0D010iSCP1#200101-200302

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0D010iSCP1#200101-200302

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

main75865-0D010iSCP1#200101-200302

75866EPROTECTOR, ROCKER PANEL MOULDING, LH

main75866-0D010iSCP1#200101-200302

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-52010iSCP1#200101-200302

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-52010iSCP1#200101-200302

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-52010iSCP1#200101-200302

main76625-52050iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-52010iSCP1#200101-200302

main76626-52050iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

76879BCLIP, REAR SPOILER, NO.2

main76879-52010iSCP1#200101-200302

9011905008

main90119-05008

9015960444

main90159-60444

9015960561

main90159-60561

9017905011

main90179-05011

9018305050

main90183-05050

9018906006

main90189-06006

9018906013

main90189-06013

9046707106

main90467-07106

9046718015

main90467-18015

9356056016

main93560-56016

93590A5016

main93590-A5016

24 parts on this diagram · 1 diagram in section
