BATTERY CARRIER

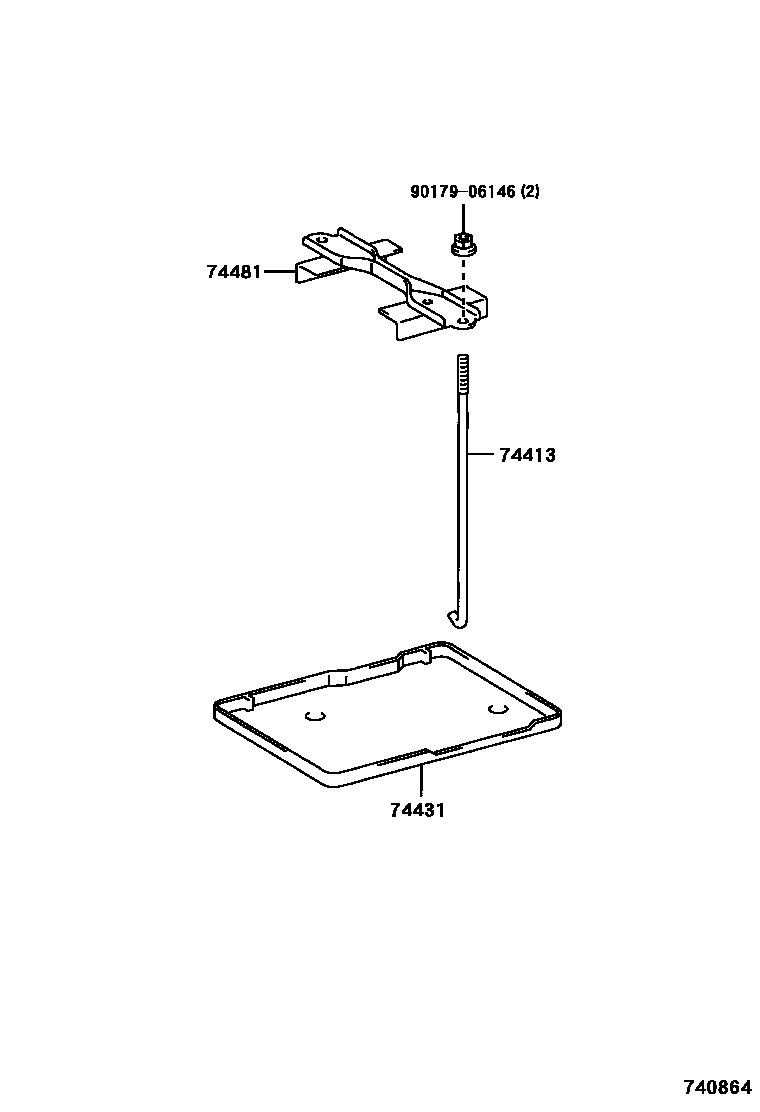

Parts diagram

74413BOLT, BATTERY CLAMP

main74451-52010i200101-200302

main74451-52020i200302

74431TRAY, BATTERY

main74431-05050i200101-200302

main74431-05060i200302

main74431-0D060i200302

W(BATTERY=80D26R)

74481CLAMP, BATTERY HOLD DOWN

main74404-52010i200101-200302

main74404-52060i200302

9017906146

main90179-06146

4 parts on this diagram · 1 diagram in section
