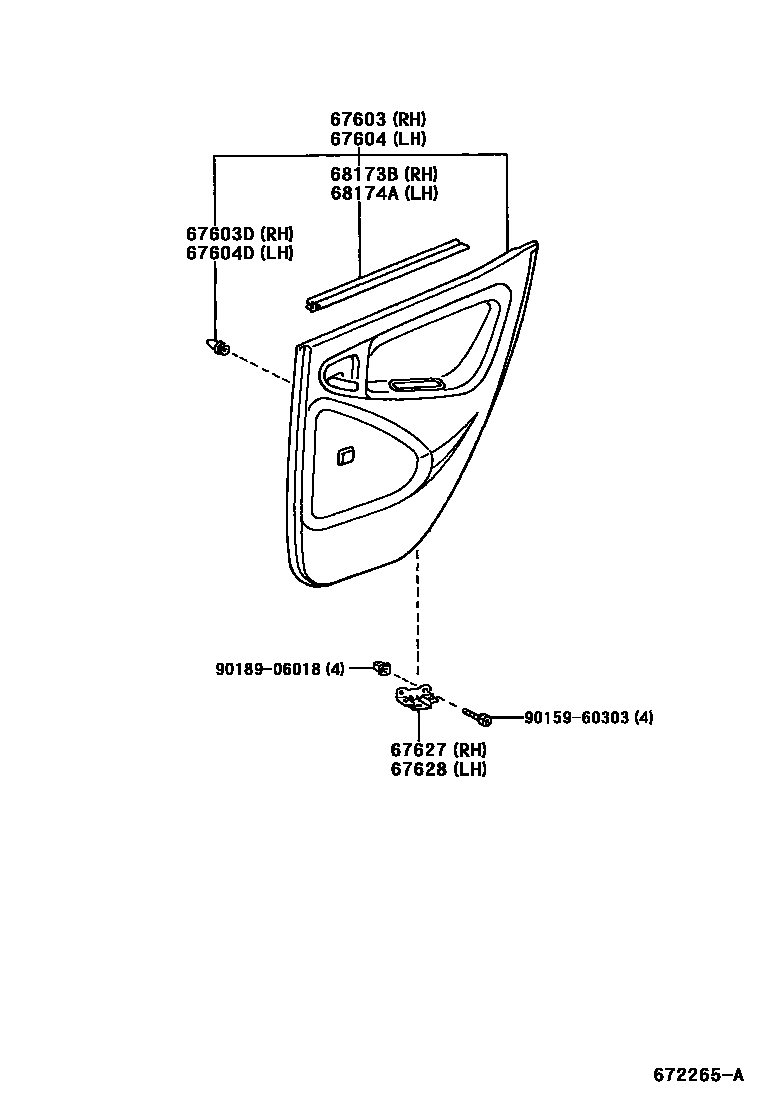

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-0D010-B1iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67630-0D010-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#

main67630-0D030-B1iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67630-0D030-H0iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7#

main67630-0D040-B1iSCP10..LHD..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67630-0D040-H0iSCP10..LHD..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67630-0D060-B1iSCP1#..LHD..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67630-0D060-H0iSCP1#..LHD..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67630-0D070-B0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67630-0D070-B0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1#

main67630-0D070-H0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE B-*104,FRENCH TURQUOISE,TRIM7#

main67630-0D070-H0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#

main67630-0D080-B0iSCP10..5D..LUNA;SCP12..LHD..5D..LUNA200101-200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67630-0D080-B0iSCP10..5D..LUNA;SCP12..LHD..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67630-0D080-H0iSCP10..5D..LUNA;SCP12..LHD..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67630-0D080-H0iSCP10..5D..LUNA;SCP12..LHD..5D..LUNA200101-200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67630-0D230-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200302-200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17

sub67630-0D230

main67630-0D230-B0iSCP10..FRP..LHD..5D..TRSTD..5FS200310-200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17,18

sub67630-0D230

main67630-0D230-B0iSCP10..FRP..LHD..5D..TRSTD..5FS200310-200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17,18,19

sub67630-0D230

main67630-0D240-B0iSCP10..FRP..LHD..5D..TRSTD..5FS200302-200501

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,11,17

sub67630-0D240

main67630-0D250-B0iNLP10,SCP1#..FRP..5D..SOL200302

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10,11

sub67630-0D250

main67630-0D260-B0iNLP10,SCP1#..FRP..LHD..5D..SOL200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,11

sub67630-0D260

main67630-0D320-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18

sub67630-0D320

main67630-0D320-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD200401-200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18,19

sub67630-0D320

main67630-0D320-B2iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19

sub67630-0D320

main67630-0D330-B0iNLP10,SCP1#..FRP..LHD..5D..TRSTD..5F200401-200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18,19

sub67630-0D330

main67630-0D330-B0iNLP10,SCP1#..FRP..LHD..5D..TRSTD200501

DK.GRAY,TRIM18

sub67630-0D330

main67630-0D330-B2iNLP10,SCP1#..FRP..LHD..5D..TRSTD200501

DK.GRAY,TRIM19

sub67630-0D330

67603DRETAINER, REAR DOOR TRIM, RH

main67771-35010iSCP1#..5D200101-200302

sub67771-42010

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-0D010-B1iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67640-0D010-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#

main67640-0D030-B1iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67640-0D030-H0iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7#

main67640-0D040-B1iSCP10..LHD..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67640-0D040-H0iSCP10..LHD..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67640-0D060-B1iSCP1#..LHD..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67640-0D060-H0iSCP1#..LHD..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOSIE,TRIM7#

main67640-0D070-B0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67640-0D070-B0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1#

main67640-0D070-H0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#

main67640-0D070-H0iSCP1#..5D..LUNA200101-200302

DOOR TRIM=TYPE B-*104,FRENCH TURQUOISE,TRIM7#

main67640-0D080-B0iSCP10..LHD..5D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67640-0D080-B0iSCP10..5D..LUNA;SCP12..LHD..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67640-0D080-H0iSCP10..LHD..5D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67640-0D080-H0iSCP10..5D..LUNA;SCP12..LHD..5D..LUNA200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67640-0D230-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200302-200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17

sub67640-0D230

main67640-0D240-B0iNLP10,SCP12..FRP..LHD..5D..TRSTD200302-200501

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,11,17

sub67640-0D240

main67640-0D250-B0iNLP10,SCP1#..FRP..5D..SOL200302

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10,11

sub67640-0D250

main67640-0D260-B0iNLP10,SCP1#..FRP..LHD..5D..SOL200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,11

sub67640-0D260

main67640-0D310-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18

sub67640-0D310

main67640-0D310-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD200401-200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18,19

sub67640-0D310

main67640-0D310-B2iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19

sub67640-0D310

main67640-0D320-B0iNLP10,SCP1#..FRP..LHD..5D..TRSTD..5F200401-200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18,19

sub67640-0D320

main67640-0D320-B0iNLP10,SCP1#..FRP..LHD..5D..TRSTD200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18

sub67640-0D320

main67640-0D320-B2iNLP10,SCP1#..FRP..LHD..5D..TRSTD200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM19

sub67640-0D320

67604DRETAINER, REAR DOOR TRIM, LH

main67771-35010iSCP1#..5D200101-200302

sub67771-42010

67627BRACKET, REAR DOOR TRIM, RH

main67625-52010iSCP1#..5D200101-200302

67628BRACKET, REAR DOOR TRIM, LH

main67625-52010iSCP1#..5D200101-200302

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-0D010iSCP1#..5D200101-200302

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-0D010iSCP1#..5D200101-200302

9015960303

main90159-60303

9018906018

main90189-06018

10 parts on this diagram · 2 diagrams in section
