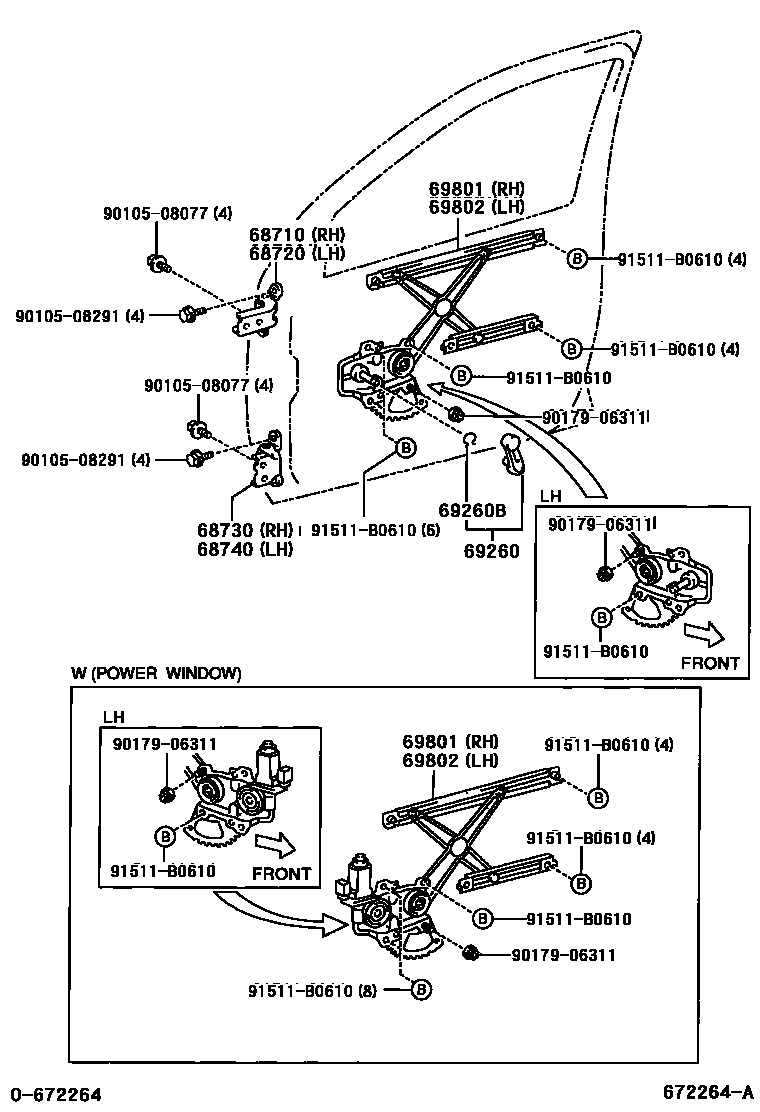

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D010iSCP1#200101-200302

sub68710-52010

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D010iSCP1#200101-200302

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D010iSCP1#200101-200302

sub68730-52010

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D010iSCP1#200101-200302

sub68740-52010

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0D010-B1iSCP1#..LUNA,TRSTD200101-200302

MD.GRAY,TRIM1#

main69260-0D010-B3iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,17

main69260-0D010-B3iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,17,18,19

main69260-0D010-B3iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,17,18

main69260-0D010-B4iNLP10,SCP1#..FRP..(TRSTD,TSGS)200302

MD.GRAY,TRIM11

main69260-0D010-G0iSCP1#..LUNA,TRSTD200101-200302

MIST GREEN,TRIM7#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90524-15005iSCP1#..LUNA,TRSTD200101-200302

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-0D010iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

W(POWER WINDOW)

main69810-0D020iSCP1#..LUNA,TRSTD200101-200302

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-0D010iSCP1#200101-200302

W(POWER WINDOW)

main69820-0D020iNLP10,SCP1#..FRP..(TRSTD,TSGS)200101-200302

9010508077

main90105-08077

9010508291

main90105-08291

9017906311

main90179-06311

91511B0610

main91511-B0610

12 parts on this diagram · 1 diagram in section
