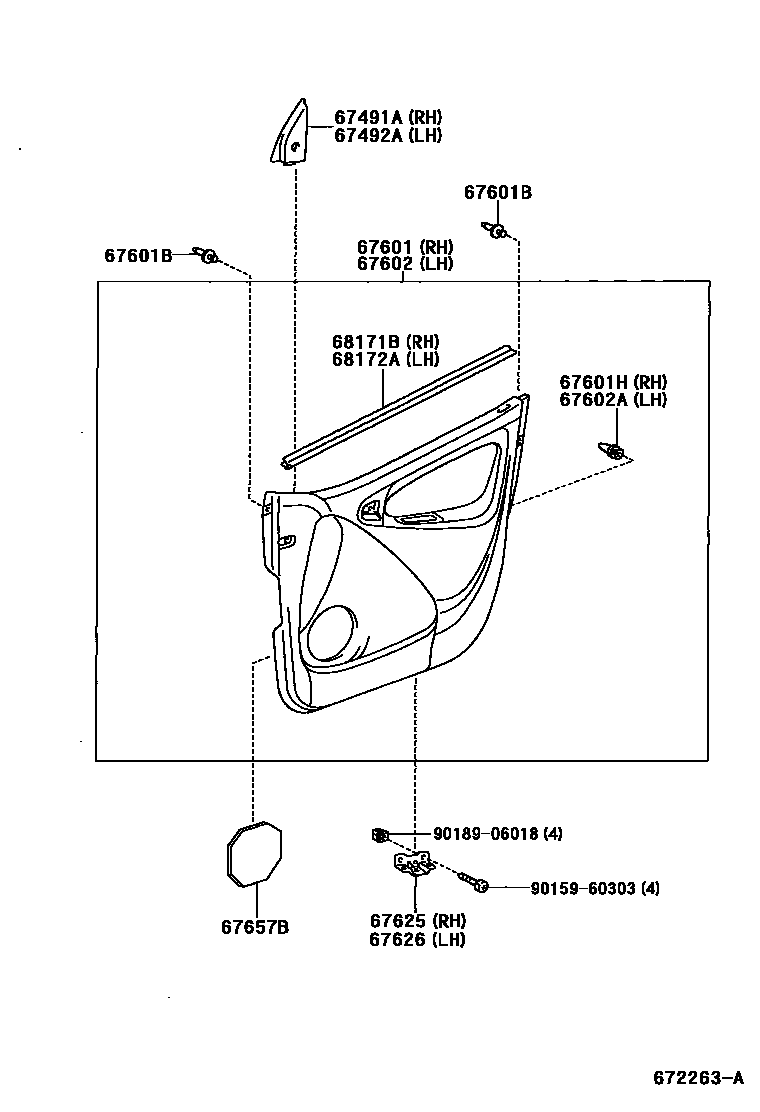

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-0D010iNLP10,SCP1#..FRP..SOL;NLP10,SCP1#..FRP..LHD..TRSTD200302

W(ELECTRIC REMOTE CONTROL MIRROR)

main67491-0D020iSCP1#200101-200302

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-0D010iSCP12..FRP..RHD..TRSTD200306

W(ELECTRIC REMOTE CONTROL MIRROR)

main67492-0D020iSCP1#200101-200302

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-0D010-B1iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67610-0D010-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#

main67610-0D030-B1iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67610-0D030-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67610-0D050-B1iSCP1#..3D..SOL200101-200302

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67610-0D050-H0iSCP1#..3D..SOL200101-200302

DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7#

main67610-0D060-B1iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67610-0D060-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#

main67610-0D080-B1iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67610-0D080-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67610-0D100-B1iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67610-0D100-H0iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,FRNCH TURQUOISE,TRIM7#

main67610-0D140-B0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67610-0D140-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#

main67610-0D150-B0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67610-0D150-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67610-0D160-B0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1#

main67610-0D160-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#

main67610-0D170-B0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67610-0D170-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67610-0D280-B0iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,XXXX,TRIM10,17

main67610-0D280-B1iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,MD.GRAY,TRIM11

main67610-0D281-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD200310-200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,17,18

main67610-0D281-B1iNLP10,SCP1#..FRP..3D..(TRSTD,TSGS)200310

DOOR TRIM=TYPE A-*104,MD.GRAY,TRIM11

main67610-0D290-B0iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67610-0D290-B1iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67610-0D291-B0iSCP10..FRP..LHD..3D..TRSTD..5FS200501

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67610-0D291-B1iNLP10,SCP1#..FRP..3D..TRSTD200310

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67610-0D300-B0iNLP10,SCP1#..FRP..3D..SOL200302-200310

DOOR TRIM=TYPE B-*104,DK.GRAY 1 MD.GRAY,TRIM10

main67610-0D300-B1iNLP10,SCP1#..FRP..3D..SOL200302-200310

DOOR TRIM=TYPE B-*104,MD. GRAY,TRIM11

main67610-0D301-B0iNLP10,SCP1#..FRP..3D..SOL200310

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10

main67610-0D301-B1iNLP10,SCP1#..FRP..3D..SOL200310

DOOR TRIM=TYPE B-*104,MD.GRAY,TRIM11

main67610-0D310-B0iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM10,17

main67610-0D310-B1iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,MD.GRAY,TRIM11

main67610-0D311-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD200310-200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,17,18

main67610-0D311-B1iNLP10,SCP1#..FRP..5D..TRSTD200310

DOOR TRIM=TYPE A-*104,MD.GRAY,TRIM11

main67610-0D320-B0iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67610-0D320-B1iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67610-0D321-B0iSCP10..FRP..RHD..5D..TRSTD;NLP10,SCP12..FRP..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5F200310

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67610-0D321-B1iNLP10,SCP1#..FRP..5D..TRSTD200310

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67610-0D330-B0iNLP10,SCP1#..FRP..5D..SOL200302-200310

DOOR TRIM=TYPE B-*104,DK.GRAY 1 MD.GRAY,TRIM10

main67610-0D330-B1iNLP10,SCP1#..FRP..5D..SOL200302-200310

DOOR TRIM=TYPE B-*104,MD. GRAY,TRIM11

main67610-0D331-B0iNLP10,SCP1#..FRP..5D..SOL200310

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10

main67610-0D331-B1iNLP10,SCP1#..FRP..5D..SOL200310

DOOR TRIM=TYPE B-*104,MD.GRAY,TRIM11

main67610-0D381-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD200401-200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,18,19

main67610-0D381-B2iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD;SCP10..FRP..LHD..3D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM19

main67610-0D391-B0iNLP10,SCP1#..FRP..LHD..5D..TRSTD..5F200401-200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18,19

main67610-0D391-B2iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM19

main67610-0D490-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD200404-200501

DOOR TRIM=TYPE C-*104,DK. GRAY,TRIM18,19

main67610-0D490-B2iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD;SCP10..FRP..LHD..3D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19

main67610-0D500-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK. GRAY,TRIM18

main67610-0D500-B2iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07190-B0×6iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main90467-07190-B2×4iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD;SCP10..FRP..LHD..3D..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17

main90467-07190-H0×6iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

67601HRETAINER, DOOR TRIM, RH

main67771-35010×6iSCP1#..3D200101-200302

sub67771-42010

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-0D010-B1iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67620-0D010-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#

main67620-0D030-B1iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67620-0D030-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67620-0D050-B1iSCP1#..3D..SOL200101-200302

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67620-0D050-H0iSCP1#..3D..SOL200101-200302

DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7#

main67620-0D060-B1iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67620-0D060-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#

main67620-0D080-B1iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67620-0D080-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67620-0D100-B1iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67620-0D100-H0iSCP1#..5D..SOL200101-200302

DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7#

main67620-0D140-B0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67620-0D140-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#

main67620-0D150-B0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67620-0D150-H0iSCP10..3D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOSIE,TRIM7#

main67620-0D160-B0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67620-0D160-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#

main67620-0D170-B0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67620-0D170-H0iSCP10..5D..TRSTD200101-200302

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#

main67620-0D280-B0iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM10,17

main67620-0D280-B1iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,MD.GRAY,TRIM11

main67620-0D281-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD200310-200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,17,18

main67620-0D281-B1iNLP10,SCP1#..FRP..3D..(TRSTD,TSGS)200310

DOOR TRIM=TYPE A-*104,MD.GRAY,TRIM11

main67620-0D290-B0iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67620-0D290-B1iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67620-0D291-B0iSCP10..FRP..LHD..3D..TRSTD..5FS200501

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67620-0D291-B1iNLP10,SCP1#..FRP..3D..TRSTD200310

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67620-0D300-B0iNLP10,SCP1#..FRP..3D..SOL200302-200310

DOOR TRIM=TYPE B-*104,DK.GRAY 1 MD.GRAY,TRIM10

main67620-0D300-B1iNLP10,SCP1#..FRP..3D..SOL200302-200310

DOOR TRIM=TYPE B-*104,MD. GRAY,TRIM11

main67620-0D301-B0iNLP10,SCP1#..FRP..3D..SOL200310

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10

main67620-0D301-B1iNLP10,SCP1#..FRP..3D..SOL200310

DOOR TRIM=TYPE B-*104,MD.GRAY,TRIM11

main67620-0D310-B0iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM10,17

main67620-0D310-B1iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104,MD.GRAY,TRIM11

main67620-0D311-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,17

main67620-0D311-B1iNLP10,SCP1#..FRP..5D..TRSTD200310

DOOR TRIM=TYPE A-*104,MD.GRAY,TRIM11

main67620-0D320-B0iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67620-0D320-B1iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67620-0D321-B0iSCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,17

main67620-0D321-B1iNLP10,SCP1#..FRP..5D..TRSTD200310

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MD.GRAY,TRIM11

main67620-0D330-B0iNLP10,SCP1#..FRP..5D..SOL200302-200310

DOOR TRIM=TYPE B-*104,DK.GRAY 1 MD.GRAY,TRIM10

main67620-0D330-B1iNLP10,SCP1#..FRP..5D..SOL200302-200310

DOOR TRIM=TYPE B-*104,MD. GRAY,TRIM11

main67620-0D331-B0iNLP10,SCP1#..FRP..5D..SOL200310

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10

main67620-0D331-B1iNLP10,SCP1#..FRP..5D..SOL200310

DOOR TRIM=TYPE B-*104,MD.GRAY,TRIM11

main67620-0D381-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD200401-200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18,19

main67620-0D381-B2iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD;SCP10..FRP..LHD..3D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM19

main67620-0D391-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18

main67620-0D391-B2iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM19

main67620-0D490-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD200404-200501

DOOR TRIM=TYPE C-*104,DK. GRAY,TRIM18,19

main67620-0D490-B2iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD;SCP10..FRP..LHD..3D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19

main67620-0D500-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD200404-200501

DOOR TRIM=TYPE C-*104,DK. GRAY,TRIM18,19

main67620-0D500-B2iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200501

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19

67602ARETAINER, DOOR TRIM, LH

main67771-35010×8iNLP10,SCP1#..FRP..5D200302

sub67771-42010

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52010iNLP10,SCP1#..FRP200302

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52010iSCP1#200101-200302

67657BPAD, DOOR SPEAKER GRILL

main67657-0D010×2iNLP10,SCP1#..FRP200302

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-0D010iNLP10,SCP1#..FRP..3D200302-200310

main68171-0D011iNLP10,SCP1#..FRP..3D200310

main68171-0D020iNLP10,SCP1#..FRP..5D200302-200310

main68171-0D021iNLP10,SCP1#..FRP..5D200310

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-0D010iSCP1#..3D200101-200302

main68172-0D011iNLP10,SCP1#..FRP..3D200310

main68172-0D020iSCP1#..5D200101-200302

main68172-0D021iNLP10,SCP1#..FRP..5D200310

9015960303

main90159-60303

9018906018

main90189-06018

14 parts on this diagram · 3 diagrams in section
