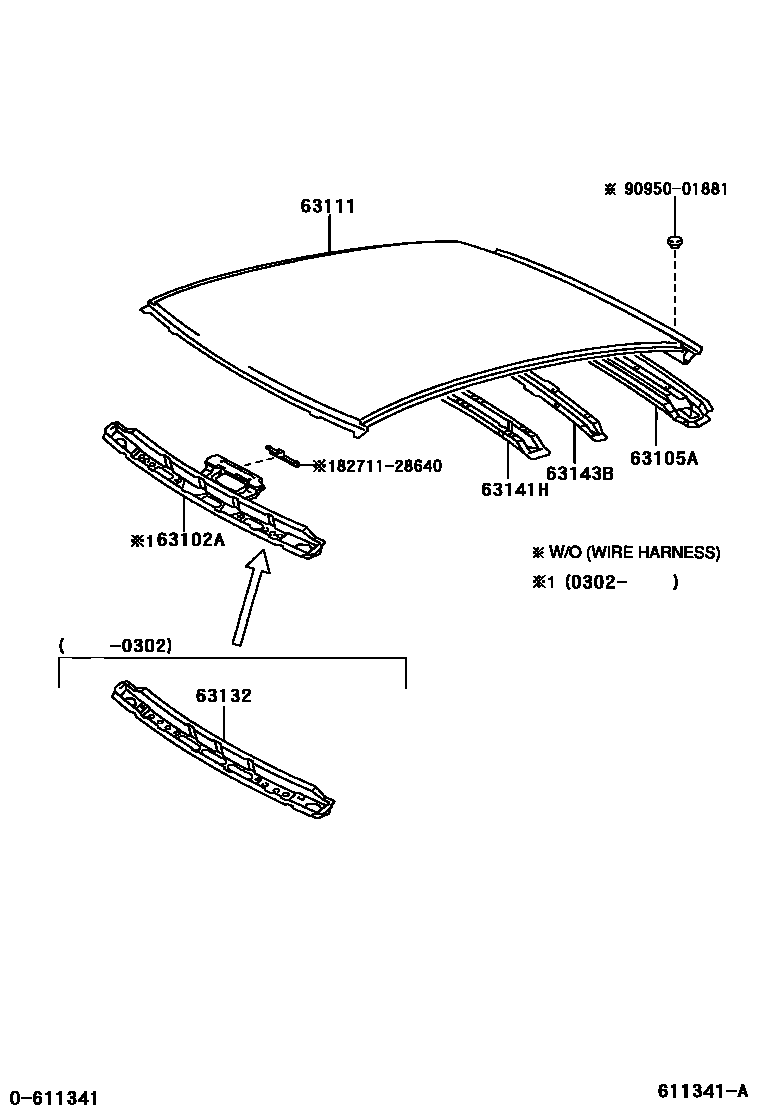

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF) 0003 1W(MOON ROOF)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0D010iNLP10,SCP1#..FRP200302

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0D010iSCP1#200101-200302

sub63105-52011

63111PANEL, ROOF

main63111-0D010iSCP1#200101-200302

main63111-0D020iSCP1#200101-200302

W(MOON ROOF)

main63111-0D060iNLP10,SCP1#..FRP200302

main63111-0D070iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

W(MOON ROOF)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-0D010iSCP1#200101-200302

sub63132-52011

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D010iSCP1#200101-200302

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0D010iSCP1#200101-200302

sub63143-52010

8271128640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28640

9095001881

main90950-01881

8 parts on this diagram · 3 diagrams in section
