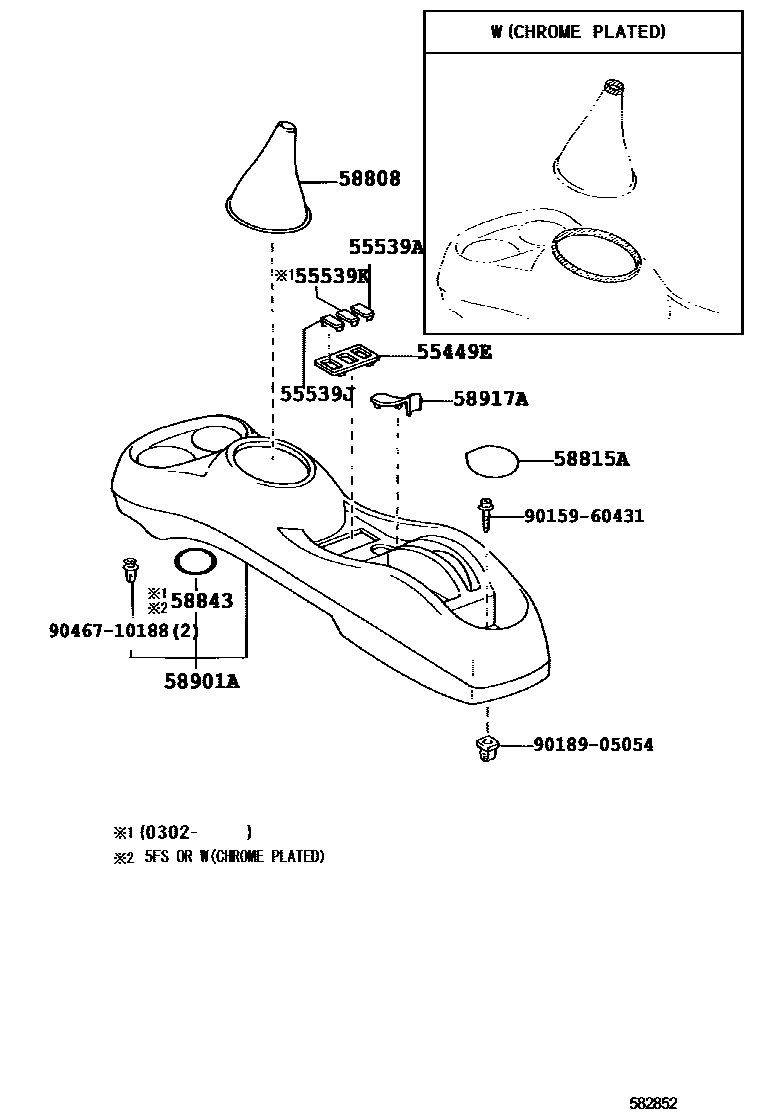

CONSOLE BOX & BRACKET

55449EBASE, SWITCH

main55449-52010-B0iSCP1#..LHD..SOL;SCP1#..LUNA,TRSTD200101-200302

MD.GRAY,TRIM1#

sub55449-52010

main55449-52010-B3iNLP10..FRP..RHD..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

sub55449-52010

main55449-52010-B3iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

sub55449-52010

main55449-52010-B3iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11,17,18,19

sub55449-52010

main55449-52010-B3iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

sub55449-52010

main55449-52010-G0iSCP1#..LHD..SOL;SCP1#..LUNA,TRSTD200101-200302

MIST GREEN,TRIM7#

sub55449-52010

55539ACOVER, SPARE SWITCH HOLE

main55539-02080-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main55539-02080-B0iNLP10..FRP..RHD..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main55539-02080-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

main55539-02080-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main55539-02080-B1iSCP1#..LHD200110-200302

MD.GRAY,TRIM1#

main55539-02080-G0iSCP1#..LHD200110-200302

MIST GREEN,TRIM7#

main55539-32010-B7iSCP10..LHD200101-200110

MD.GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-G3iSCP10..LHD200101-200110

MIST GREEN,TRIM7#

sub55539-32010

sub55539-32030

55539JCOVER, SPARE SWITCH HOLE

main55539-02080-B0iNLP10,SCP1#..FRP..LHD..TRSTD200302

DK.GRAY,TRIM10,11,17,18,19

main55539-02080-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

main55539-02080-B1iSCP1#..LHD..SOL;SCP1#..LUNA,TRSTD200110-200302

MD.GRAY,TRIM1#

main55539-02080-G0iSCP1#..LHD..SOL;SCP1#..LUNA,TRSTD200110-200302

MIST GREEN,TRIM7#

main55539-32010-B7iSCP10..LHD..SOL;SCP10..LUNA,TRSTD200101-200110

MD.GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-G3iSCP10..LHD..SOL;SCP10..LUNA,TRSTD200101-200110

MIST GREEN,TRIM7#

sub55539-32010

sub55539-32030

55539KCOVER, SPARE SWITCH HOLE

main55539-02080-B0iSCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main55539-02080-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main55539-02080-B0iNLP10..FRP..RHD..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main55539-02080-B0iNLP10..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D020-B1iSCP1#..5F200101-200302

MD.GRAY,TRIM1#

main58808-0D020-G0iSCP1#..5F200101-200302

MIST GREEN,TRIM7#

main58808-0D060-B0iSCP10..FRP..TSGS;NLP10..FRP..RHD..TRSTD200302

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM10,11,17,18,19

main58808-0D060-B0iNLP10,SCP1#..FRP..SOL..5F200302

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM10,11

main58808-0D060-B0iNLP10,SCP1#..FRP..SOL..5F200302

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM10,11,17

main58808-0D070-B0iNLP10,SCP12..FRP..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main58808-0D070-B0iNLP10,SCP12..FRP..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

58815ACARPET, CONSOLE BOX

main58815-52010iSCP1#200101-200302

58843BEZEL, SHIFTING HOLE

main58843-0D020iNLP10,SCP1#..FRP..(4FC,5F)200302-200511

main58844-0D040iSCP10..FRP..5FS200303-200511

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0D010-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD200302

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM10,11,17,18,19

main58901-0D010-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD200302

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM10,11,17

main58901-0D010-B0iSCP10..FRP..TSGS;NLP10..FRP..RHD..TRSTD200302

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM10,11

main58901-0D020-B0iSCP10..FRP..LHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17

main58901-0D020-B0iSCP10..FRP..SOL..5FS200302

DK.GRAY,TRIM10,11

main58901-0D020-B0iSCP10..FRP..SOL..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main58911-0D010-B1iSCP1#200101-200302

MD.GRAY,TRIM1#

main58911-0D010-B2iSCP10..FRP..(TRSTD,TSGS)..5F200302-200401

DK.GRAY,TRIM10,11,17

main58911-0D010-B2iNLP10,SCP12..FRP..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main58911-0D010-G0iSCP1#200101-200302

MIST GREEN,TRIM7#

58917ACOVER, CONSOLE BOX, REAR

main58917-0D010-B1iSCP1#200101-200302

MD.GRAY,TRIM1#

main58917-0D010-B2iNLP10,SCP1#..FRP..SOL200302-200401

DK.GRAY,TRIM10,11,17

main58917-0D010-B2iSCP10..FRP..LHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main58917-0D010-B2iSCP10..FRP..LHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main58917-0D010-B2iNLP10,SCP12..FRP..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main58917-0D010-G0iSCP1#200101-200302

MIST GREEN,TRIM7#

9015960431

main90159-60431

9018905054

main90189-05054

9046710188

main90467-10188

12 parts on this diagram · 1 diagram in section
