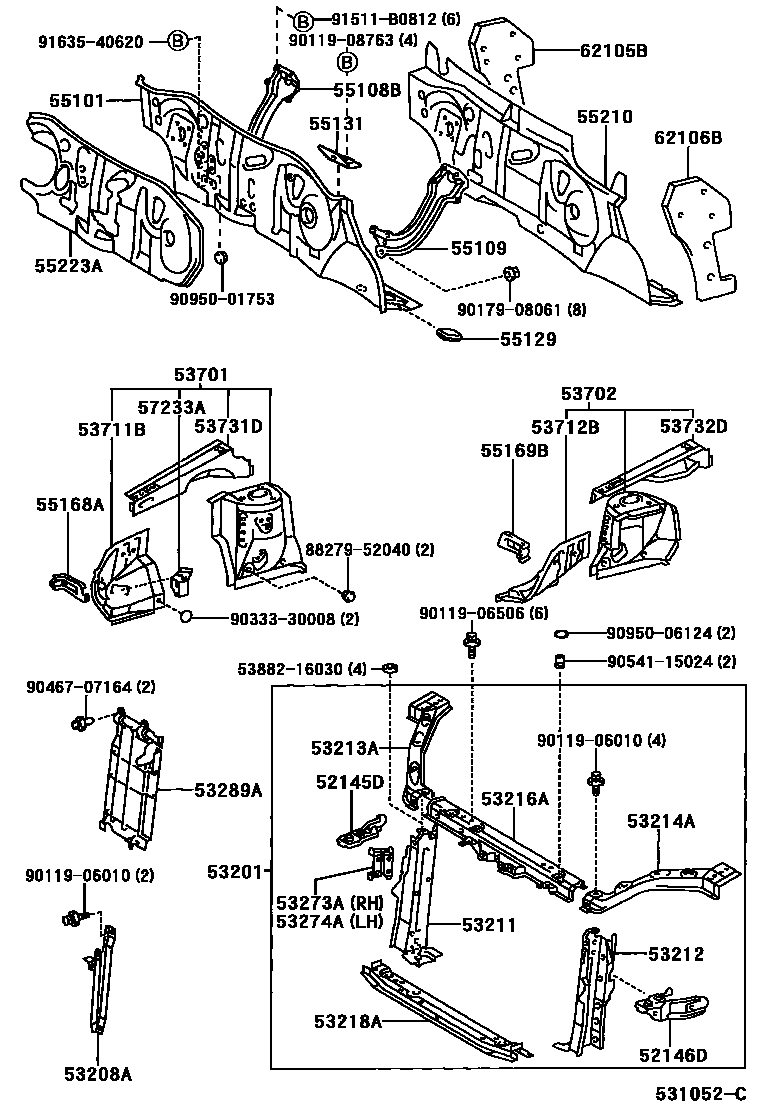

FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53201SUPPORT SUB-ASSY, RADIATOR
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
(L)
(J)
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
(L)
(J)
53289ACOVER, RADIATOR SUPPORT OPENING
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
sub55101-0D180
W(KICK DOWN SWITCH)
sub55101-0D190
sub55101-0D181
sub55101-0D191
55108BBRACE SUB-ASSY, DASH TO FRAME, RH
55109BRACE SUB-ASSY, DASH TO FRAME, LH
55129COVER, DASH PANEL HOLE
RH
LH
RH
55131REINFORCEMENT, DASH PANEL
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
57233ARETAINER, ENGINE FRONT SUPPORT, RH
5388216030PACKING, FRONT FENDER MAIN
8827952040GUIDE, SKID CONTROL SENSOR
9011906010
9011906506
9011908763
9017908061
9033330008
9046707164
9054115024
9095001753
9095006124
91511B0812
9163540620
44 parts on this diagram · 3 diagrams in section
