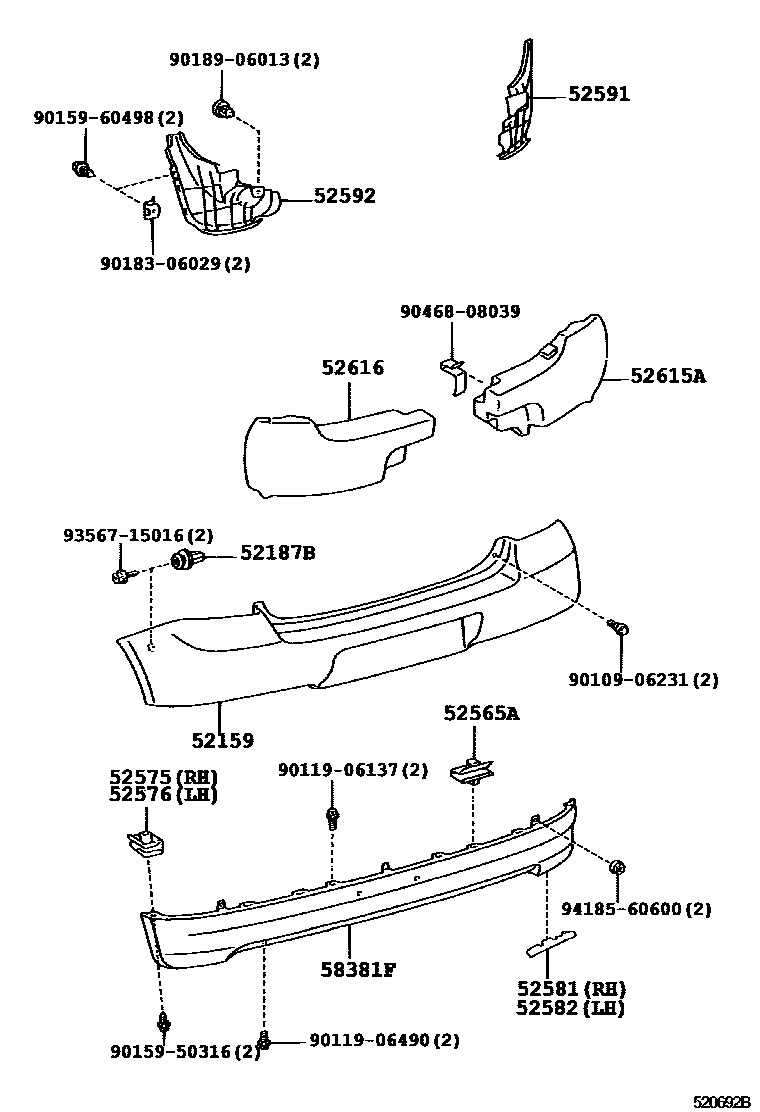

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-0D010iSCP1#200101-200302

main52159-0D100iNLP10,SCP1#..FRP200302

UNPAINTED

52187BGUIDE, REAR BUMPER LOCATION

main52187-0D010iSCP1#200101-200302

52565ARETAINER, REAR BUMPER, LOWER

main52565-52010iSCP1#200101-200302

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D010iSCP1#200101-200302

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D010iSCP1#200101-200302

52581PROTECTOR, REAR BUMPER, RH

main52581-0D010iSCP1#200112-200302

main52581-0D020iNLP10,SCP1#..FRP200302-200511

main52581-52020iSCP10200101-200112

52582PROTECTOR, REAR BUMPER, LH

main52582-0D010iSCP1#200112-200302

main52582-0D020iNLP10,SCP1#..FRP200302-200511

main52582-52010iSCP10200101-200112

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D060iNLP10,SCP1#..FRP200302

main52591-52010iSCP1#200101-200302

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D060iNLP10,SCP1#..FRP200302

main52592-52010iSCP1#200101-200302

52615AABSORBER, REAR BUMPER ENERGY, RH

main52615-0D010iSCP1#200101-200302

main52615-0D020iNLP10,SCP1#..FRP200302

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-0D010iSCP1#200101-200302

main52616-0D020iNLP10,SCP1#..FRP200302

58381FPANEL, REAR VALANCE

main58381-0D010iSCP1#200101-200302

main58381-0D020iNLP10,SCP1#..FRP200302-200511

9010906231

main90109-06231

9011906137

main90119-06137

9011906490

main90119-06490

9015950316

main90159-50316

9015960498

main90159-60498

9018306029

main90183-06029

9018906013

main90189-06013

9046808039

main90468-08039

9356715016

main93567-15016

9418560600

main94185-60600

22 parts on this diagram · 2 diagrams in section
