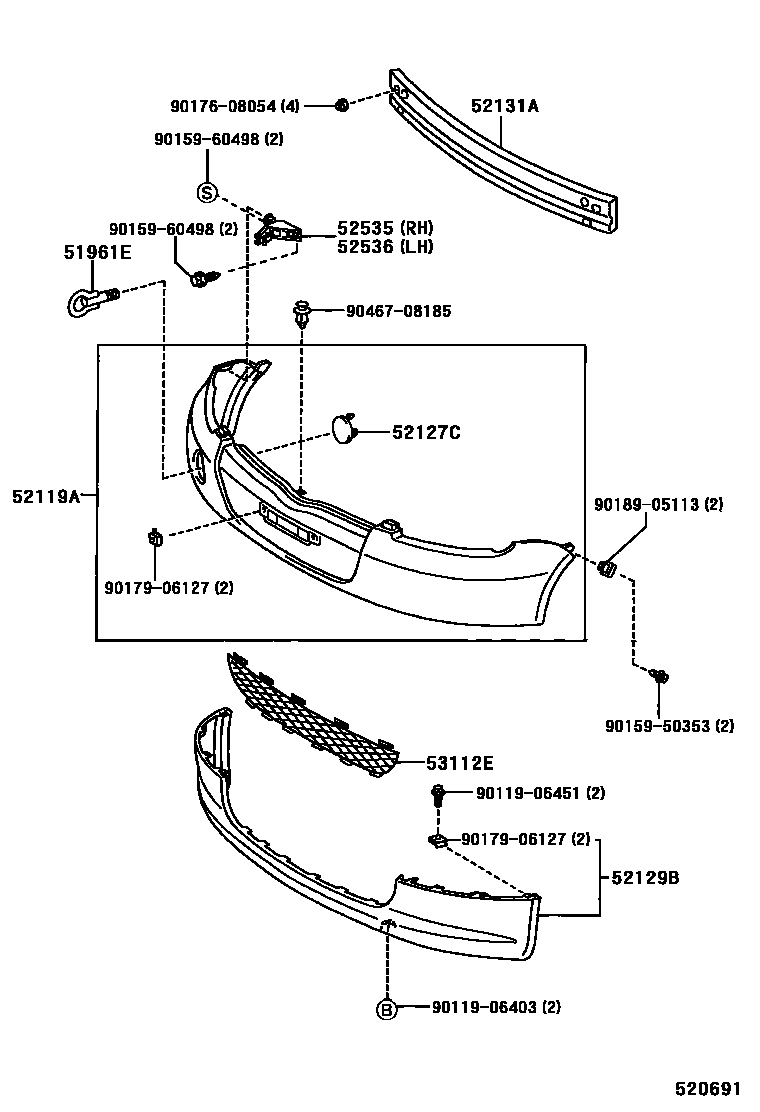

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

51961EHOOK, FRONT

main51960-0D010iSCP1#200101-200302

main51960-0D050iNLP10,SCP1#..FRP200302

52119ACOVER, FRONT BUMPER

main52119-0D090iNLP10,SCP1#..FRP200302

main52119-0D900iSCP10200101-200109

main52119-0D901iSCP1#200109-200302

52127CCOVER, FRONT BUMPER HOLE

main52127-52011iSCP10..TRSTD200101-200302

main52127-52020-A2iSCP1#..LUNA,SOL200101-200302

WHITE,068

main52127-52020-B1iSCP1#..LUNA,SOL200101-200302

SILVER ME,199

main52127-52020-C1iSCP1#..LUNA,SOL200101-200302

BLACK MC.,209

main52127-52020-D2iSCP1#..LUNA,SOL200101-200302

SUPER RED 5,3P0

main52127-52020-D3iSCP1#..LUNA,SOL200101-200302

RED M.M.,3P1

main52127-52020-F0iSCP1#..LUNA,SOL200101-200302

YELLOW M.M.,580

main52127-52020-G1iSCP1#..LUNA,SOL200101-200302

LT.GREEN ME.,6Q2

main52127-52020-J2iSCP1#..LUNA,SOL200101-200302

STRONG BLUE M,8B6

main52127-52020-J3iSCP1#..LUNA,SOL200101-200302

DK.BLUE M.M.,8P4

main52721-0D010iNLP10,SCP1#..FRP..SOL200409-200511

main52721-0D020-A0iNLP10,SCP1#..FRP..SOL200302-200511

WHITE,068

main52721-0D020-B0iSCP10..FRP..LHD..TRSTD..5FS200501-200511

GRAY ME.,1D2

main52721-0D020-B1iSCP10..FRP..TRSTD..5F200401-200511

SILVER M.M.,1E7

main52721-0D020-C0iSCP12..FRP..TRSTD;NLP10..FRP..LHD..TRSTD200408-200511

BLACK MC.,209

main52721-0D020-D0iNLP10,SCP1#..FRP..SOL200302-200511

SUPER RED 5,3P0

main52721-0D020-G0iSCP10..FRP..LHD..TRSTD..5FS200501-200511

DARK GREEN MC.,6R4

main52721-0D020-G1iSCP12..FRP..TRSTD;NLP10..FRP..LHD..TRSTD200408-200511

GREEN M.M.,6S4

main52721-0D020-J0iNLP10,SCP1#..FRP..SOL200302-200401

BLUE ME.,8P1

main52721-0D020-J1iSCP10..FRP..TRSTD..5F200401-200511

DK.BLUE M.M.,8P4

main52721-0D020-J2iNLP10,SCP1#..FRP..SOL200302-200511

LIGHT BLUE M.M.,8R0

52129BCOVER, FRONT BUMPER, LOWER

main52129-0D900iSCP1#200101-200302

52131AREINFORCEMENT, FRONT BUMPER

main52021-0D010iNLP10,SCP1#..FRP200302-200307

main52131-52070iNLP10,SCP1#..FRP200505

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D010iSCP1#200101-200302

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D010iNLP10,SCP1#..FRP200302-200511

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0D010iSCP1#200101-200302

main53112-0D020iNLP10,SCP1#..FRP..(SOL,TRSTD)200302-200511

main53112-52120iSCP10..FRP..TSGS200306-200511

9011906403

main90119-06403

9011906451

main90119-06451

9015950353

main90159-50353

9015960498

main90159-60498

9017608054

main90176-08054

9017906127

main90179-06127

9018905113

main90189-05113

9046708185

main90467-08185

16 parts on this diagram · 2 diagrams in section
