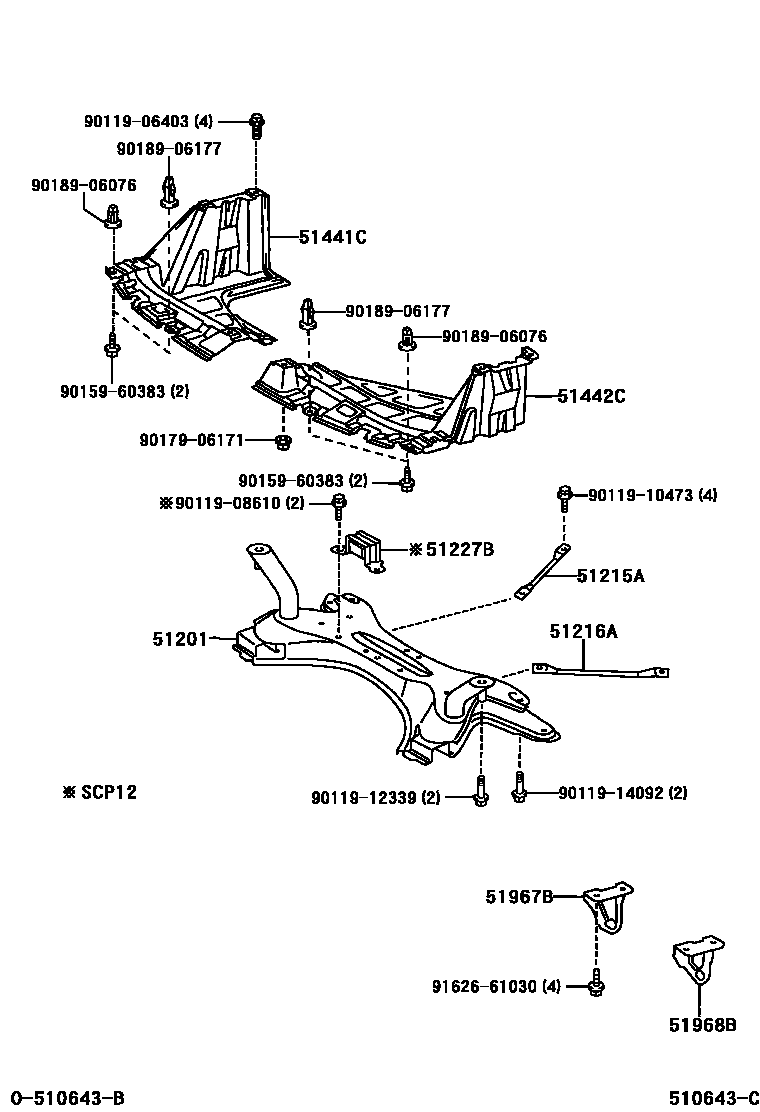

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D010iSCP1#200101-200208

sub51201-0D011

main51201-0D011iSCP1#200208-200302

sub51201-0D051

main51201-0D051iNLP10,SCP1#..FRP200302

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-0D010iNLP10,SCP1#..FRP200302

main51215-52010iSCP1#200101-200302

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-0D010iNLP10,SCP1#..FRP200302

main51215-52010iSCP1#200101-200302

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-0D010iSCP12200205-200212

main51227-0D020iNLP10..FRP200302

51441COVER, ENGINE UNDER, NO.1

main51410-0D020iNLP10..FRP200302

51441CCOVER, ENGINE UNDER, RH

main51441-0D010iSCP1#200101-200302

51442CCOVER, ENGINE UNDER, LH

main51442-0D010iSCP1#..FRP..MTM200101-200302

main51442-0D020iSCP12..4FC200205-200302

51967BHOOK, TRANSPORT, REAR RH

main51967-0D040iNLP10,SCP1#..FRP200302

main51967-10100iSCP1#200101-200302

51968BHOOK, TRANSPORT, REAR LH

main51967-0D030iNLP10,SCP1#..FRP200302

main51967-10090iSCP1#200101-200302

9011906403

main90119-06403

9011908610

main90119-08610

9011910473

main90119-10473

9011912339

main90119-12339

9011914092

main90119-14092

9015960383

main90159-60383

9017906171

main90179-06171

9018906076

main90189-06076

9018906177

main90189-06177

9162661030

main91626-61030

19 parts on this diagram · 2 diagrams in section
