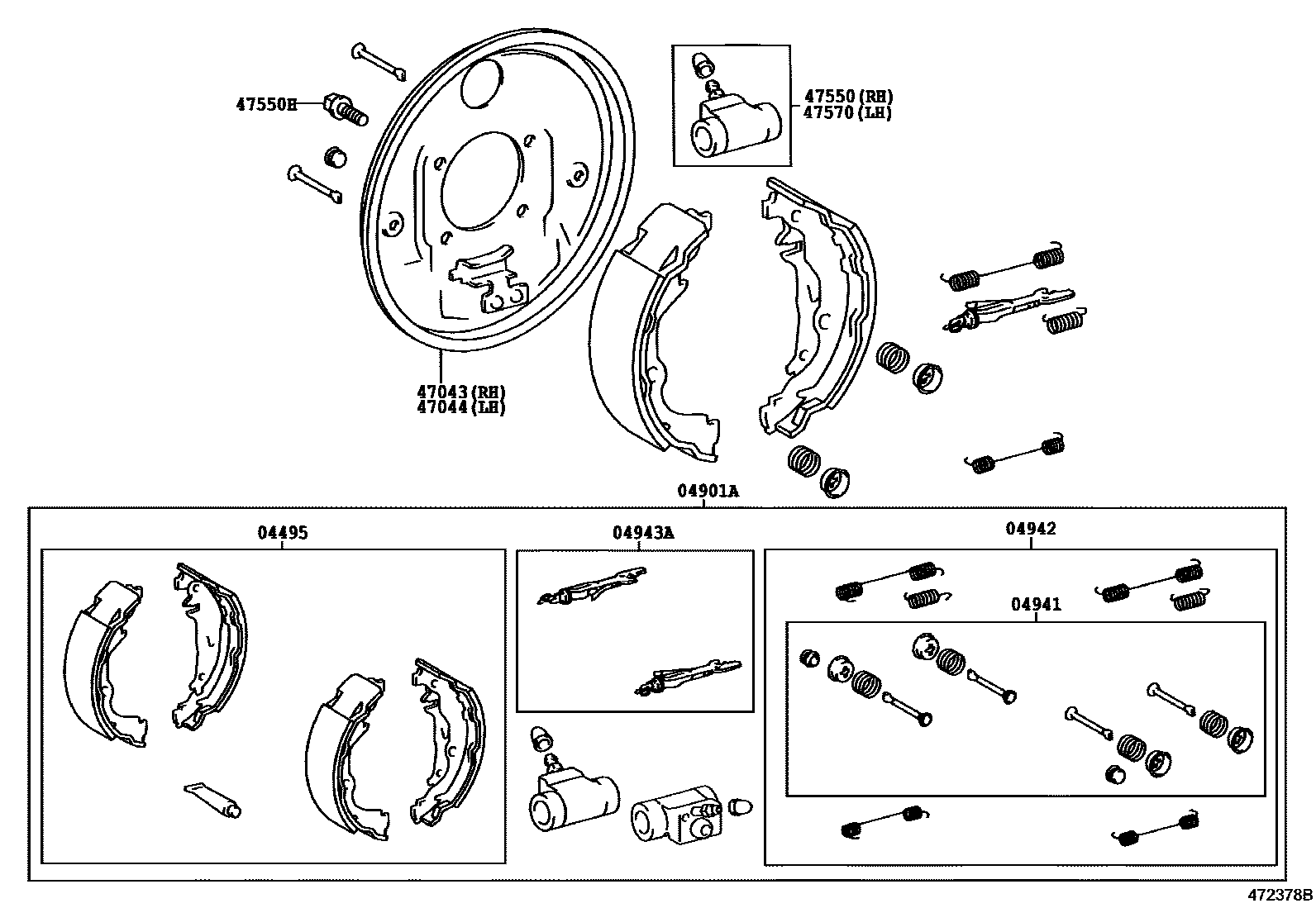

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
MARK FERODO 3634F
04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04942SPRING KIT, REAR BRAKE
04943ASTRUT KIT, REAR BRAKE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550HBOLT(FOR REAR WHEEL CYLINDER)
sub47553-0H010
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
10 parts on this diagram · 1 diagram in section
