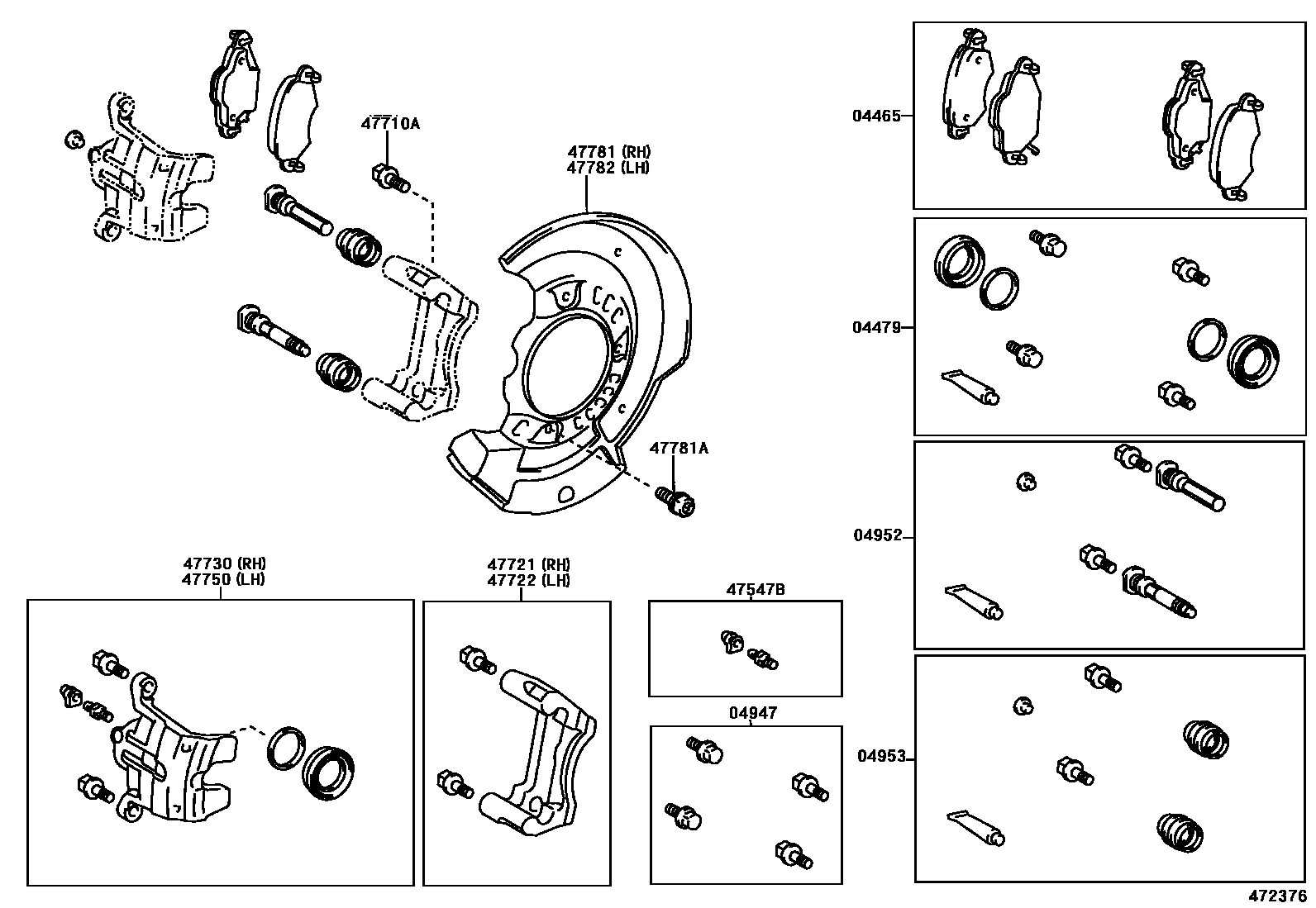

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1W(REAR DISC BRAKE)

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D040iSCP1#200101-200302

MARK NBK PN540H

main04465-17100iSCP10200101-200112

MARK NBK PN540H,W(REAR DISC BRAKE)

sub04465-17101

main04465-17140iSCP1#200112-200302

MARK NBK PN540H,W(REAR DISC BRAKE)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-0D010iNLP10,SCP1#..FRP200101-200302

main04479-52020iSCP1#200101-200302

W(REAR DISC BRAKE)

sub04479-52021

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D010iSCP1#200101-200302

main04947-52010iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

W(REAR DISC BRAKE)

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0D010iNLP10,SCP1#..FRP200101-200302

04953BOOT KIT, FRONT DISC BRAKE CYLINDER SLIDE PIN

main04953-0D010iSCP1#200101-200302

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-09010iSCP1#200101-200302

main47547-20010iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

W(REAR DISC BRAKE)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314iSCP1#200101-200302

*12-1.25PX27.5-23.8

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09040iSCP1#200101-200302

main47721-52020iSCP1#200101-200302

W(REAR DISC BRAKE)

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09010iSCP1#200101-200302

main47722-52020iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

W(REAR DISC BRAKE)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-09020iSCP1#200101-200302

main47730-52020iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

W(REAR DISC BRAKE)

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-09020iSCP1#200101-200302

main47750-52020iSCP1#200101-200302

W(REAR DISC BRAKE)

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D010iNLP10,SCP1#..FRP200101-200302

main47781-52020iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

W(REAR DISC BRAKE)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iSCP1#200101-200302

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D010iSCP1#200101-200302

main47782-52020iSCP1#200101-200302

W(REAR DISC BRAKE)

14 parts on this diagram · 2 diagrams in section
