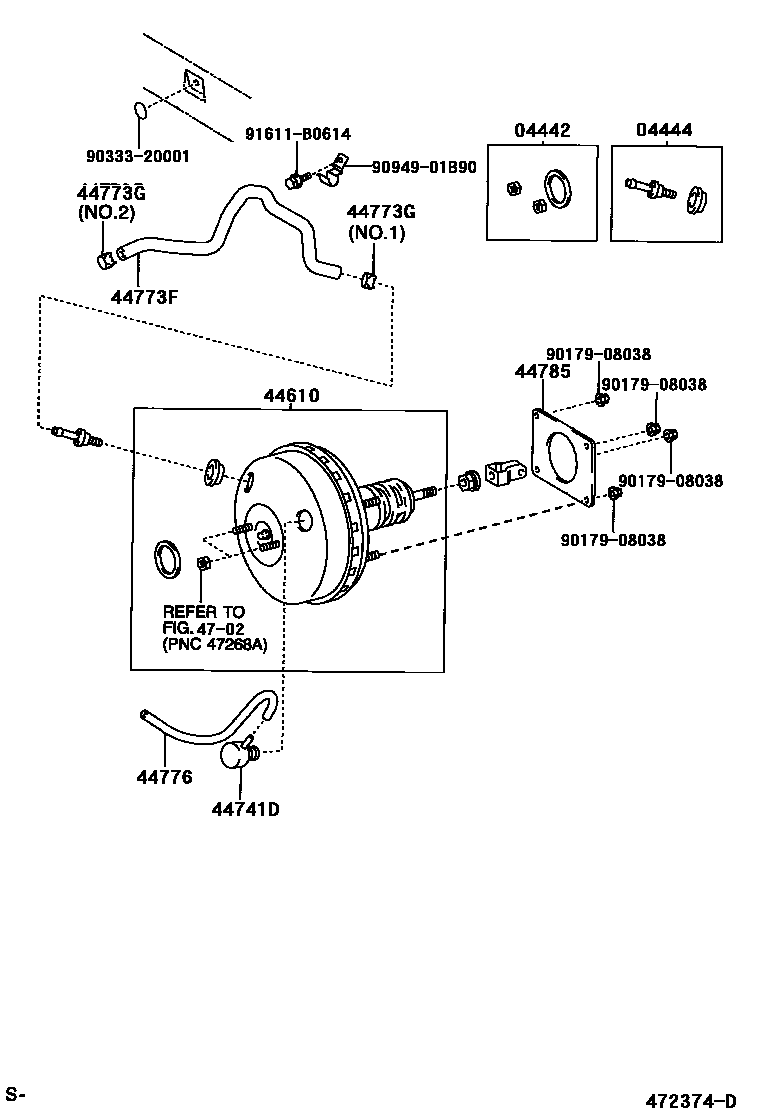

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04442FITTING KIT, BRAKE BOOSTER

main04442-0D010iNLP10,SCP1#..FRP200101-200302

04444VALVE KIT, BOOSTER CONTROL

main04444-0D010iSCP1#200101-200302

44610BOOSTER ASSY, BRAKE

main44610-09010iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200101-200302

main44610-09020iSCP1#..RHD200101-200302

main44610-09030iSCP1#..LHD200101-200302

W(REAR DISC BRAKE)

main44610-09040iNLP10,SCP1#..FRP..RHD200101-200302

W(REAR DISC BRAKE)

main44610-09090iSCP10..FRP..TSGS200306

44741DBODY, VACUUM CHECK VALVE

main44741-0D020iSCP10..FRP..TSGS200306

44773FHOSE, UNION TO CHECK VALVE

main44773-52050iSCP10..LHD200101-200205

main44773-52060iSCP10..RHD200101-200302

main44773-52090iSCP1#..LHD200205-200302

main44773-52100iSCP12..RHD200205-200302

main44773-52130iSCP10..FRP..LHD200302

main44773-52140iSCP10..FRP..RHD200302

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iSCP1#200101-200511

NO.1

main96133-41500iNLP10..FRP200302-200511

NO.2

main96134-51500iSCP1#200101-200302

NO.2

sub96133-41500

44776HOSE, BRAKE BOOSTER

main90999-92002iSCP10..FRP..TSGS200306

44785GASKET, BRAKE BOOSTER

main44785-0D010iNLP10,SCP1#..FRP200302-200306

sub44785-16020

main44785-16020iSCP1#200101-200302

4702

9017908038

main90179-08038

9033320001

main90333-20001

9094901B90

main90949-01B90

91611B0614

main91611-B0614

13 parts on this diagram · 4 diagrams in section
