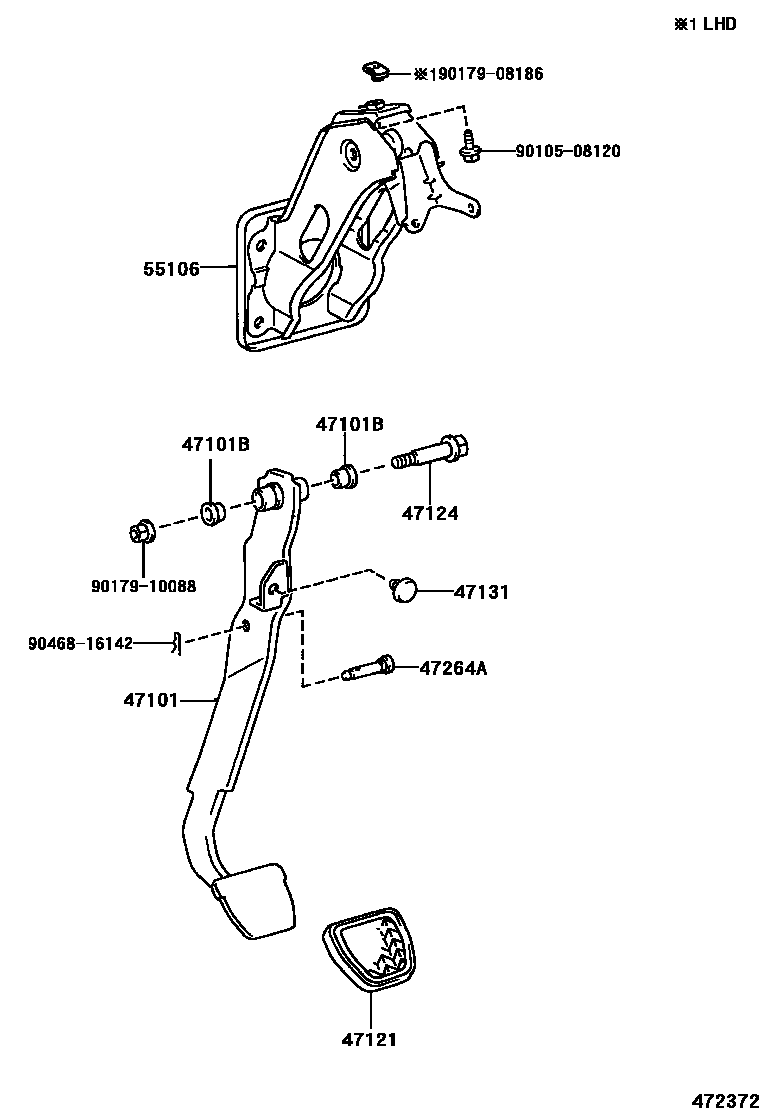

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D010iSCP1#..LHD..5F200101-200302

main47101-0D020iSCP12..LHD..4FC200205-200302

main47101-52010iSCP1#..RHD..5F200101-200302

sub47101-52050

main47101-52020iSCP12..RHD..4FC200205-200302

sub47101-52060

main47101-52190iNLP10,SCP1#..FRP..RHD..5F200302

main47101-52200iSCP1#..FRP..RHD..(4FC,5FS)200302

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSCP1#200101-200302

47121PAD, BRAKE PEDAL

main31321-52010iSCP1#..5F200101-200302

main47121-52010iSCP1#..FRP..(4FC,5FS)200205-200302

47124SHAFT, BRAKE PEDAL

main90109-10167iNLP10,SCP1#..FRP200101-200302

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iSCP1#200101-200302

47264APIN(FOR PUSH ROD)

main90249-08295iNLP10,SCP1#..FRP..LHD200101-200302

main90249-08297iSCP1#..RHD200101-200302

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D010iSCP1#..LHD200101-200302

main55106-52012iSCP1#..RHD200101-200302

main55106-52150iNLP10,SCP1#..FRP..RHD200302

9010508120

main90105-08120

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
