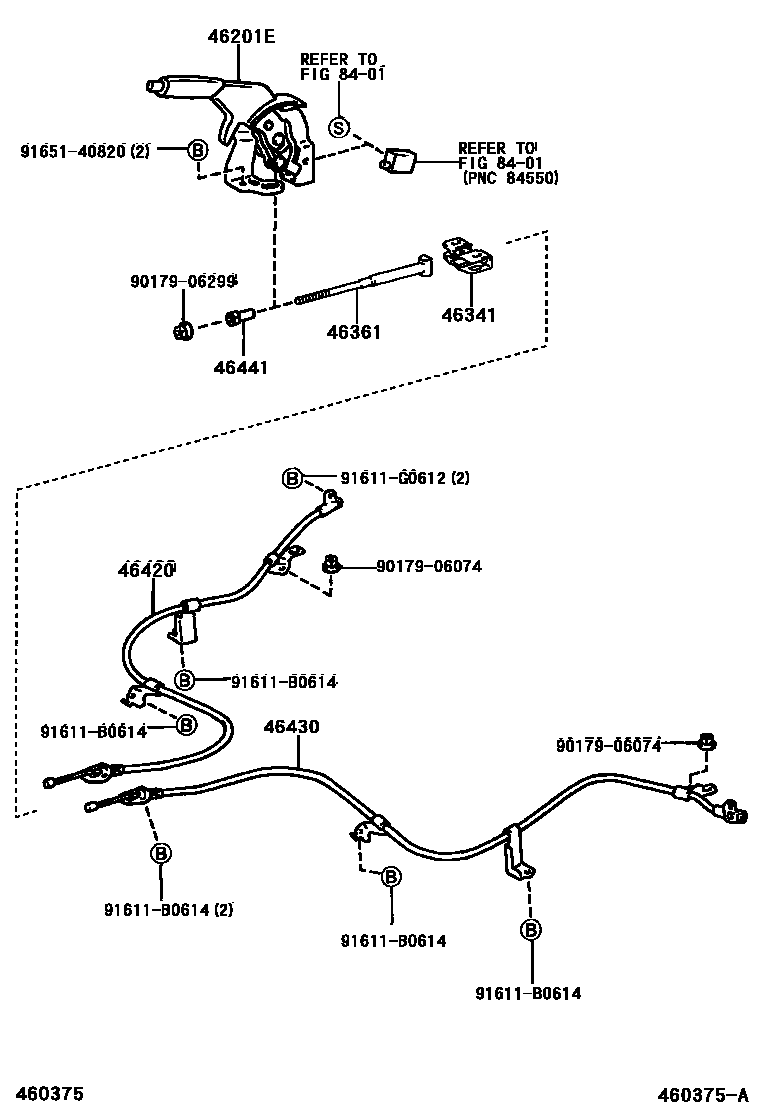

PARKING BRAKE & CABLE

0001 1 0002 1W(REAR DISC BRAKE)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D010-B1iSCP1#200101-200302

MD.GRAY,TRIM1#

sub46201-52010

main46201-0D010-B2iSCP10..FRP..RHD..TRSTD;SCP10..FRP..LHD..(TRSTD,TSGS)..5F200302

DK.GRAY,TRIM10,11,17,18,19

sub46201-52010

main46201-0D010-B2iSCP10..FRP..RHD..TRSTD;SCP10..FRP..LHD..(TRSTD,TSGS)..5F200302-200401

DK.GRAY,TRIM10,11,17

sub46201-52010

main46201-0D010-B2iNLP10,SCP12..FRP..TRSTD200401

DK.GRAY,TRIM10,11,17,18

sub46201-52010

main46201-0D010-G0iSCP1#200101-200302

MIST GREEN,TRIM7#

sub46201-52010

main46201-0D060-B0iNLP10,SCP1#..FRP..SOL200302-200401

CHROME PLATED KNOB,DK.GRAY,TRIM10,11,17

sub46201-52050

main46201-0D060-B0iNLP10,SCP1#..FRP..SOL200302

CHROME PLATED KNOB,DK.GRAY,TRIM10,11,17,18,19

sub46201-52050

main46201-0D060-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11

sub46201-52050

main46201-0D060-B0iNLP10..FRP..RHD..TRSTD200401

CHROME PLATED KNOB,DK.GRAY,TRIM10,11,17,18

sub46201-52050

46341EQUALIZER, PARKING BRAKE

main46341-0D010iSCP1#200101-200302

sub46341-52010

sub46361-52010

sub46441-52010

sub90170-06014

46361ROD, PARKING BRAKE PULL

main46361-0D010iSCP1#200101-200302

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D010iSCP1#200101-200302

main46420-52080iSCP1#200101-200302

W(REAR DISC BRAKE)

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D010iSCP1#200101-200302

main46430-52080iSCP1#200101-200302

W(REAR DISC BRAKE)

46441NUT, WIRE ADJUSTING, NO.1

main46441-0D010iNLP10,SCP1#..FRP200101-200302

8401

9017906074

main90179-06074

9017906299

main90179-06299

91611B0614

main91611-B0614

91611G0612

main91611-G0612

9165140820

main91651-40820

12 parts on this diagram · 2 diagrams in section
