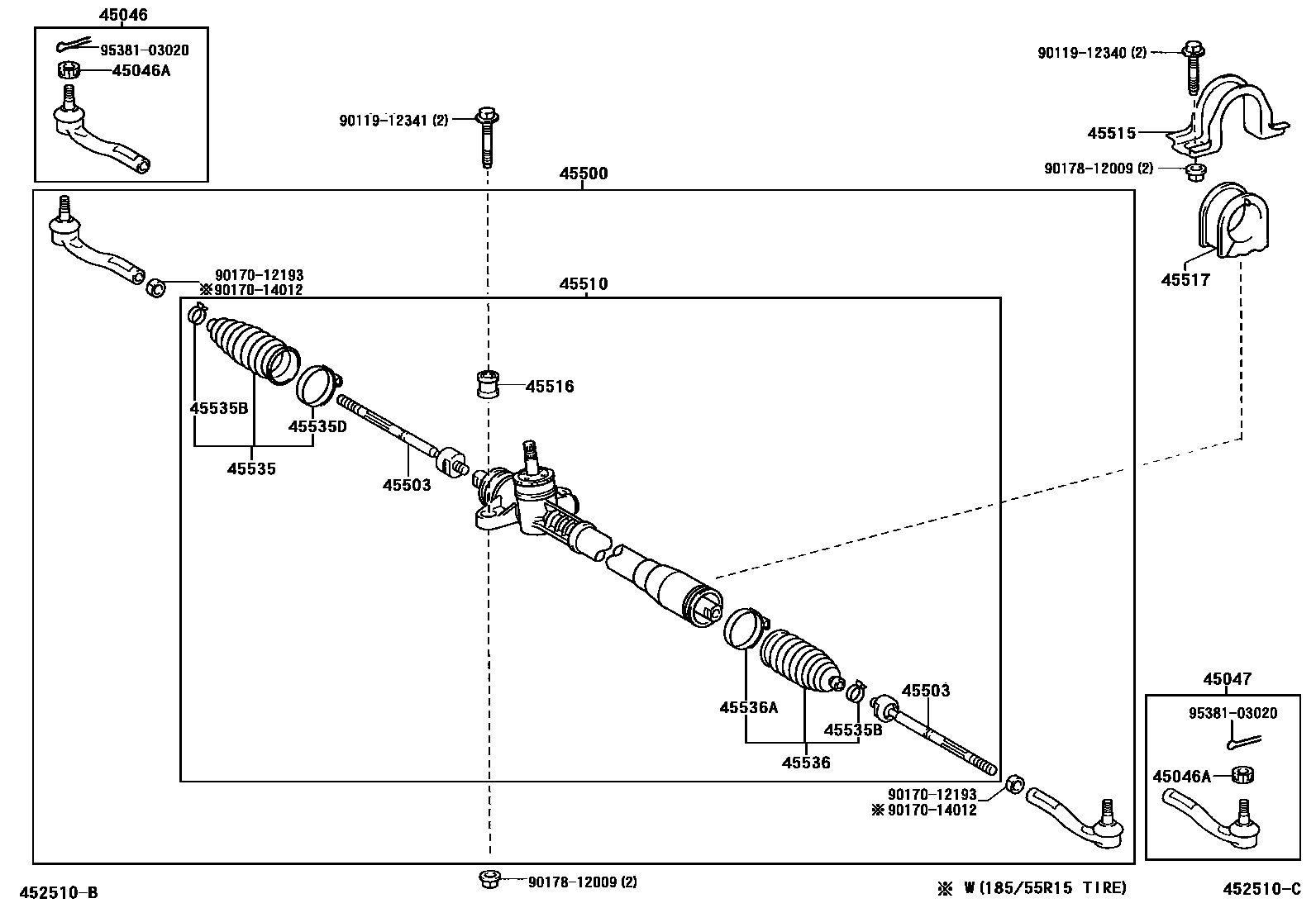

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
W(POWER STEERING)
W(MANUAL STEERING)
W(POWER STEERING)
W(185/55R15TIRE & POWER STEERING)
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
W(185/55R15TIRE & POWER STEERING)
W(POWER STEERING)
W(MANUAL STEERING)
W(POWER STEERING)
45500LINK ASSY, STEERING
45503END SUB-ASSY, STEERING RACK
W(185/55R15TIRE)
45510GEAR ASSY, STEERING
W(MANUAL STEERING)
W(MANUAL STEERING)
W(POWER STEERING)
W(POWER STEERING)
W(185/55R15TIRE & POWER STEERING)
W(185/55R15TIRE & POWER STEERING)
45515BRACKET, STEERING RACK HOUSING, NO.2
45516GROMMET, STEERING RACK HOUSING, NO.1
45517GROMMET, STEERING RACK HOUSING, NO.2
W(POWER STEERING)
W(MANUAL STEERING)
45535BOOT, STEERING RACK, NO.1
W(185/55R15TIRE & POWER STEERING)
45535BCLIP(FOR STEERING RACK BOOT)
W(185/55R15TIRE)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
W(185/55R15TIRE & POWER STEERING)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011912340
main90119-12340
9011912341
main90119-12341
9017012193
main90170-12193
9017014012
main90170-14012
9017812009
main90178-12009
9538103020
main95381-03020
20 parts on this diagram · 2 diagrams in section
