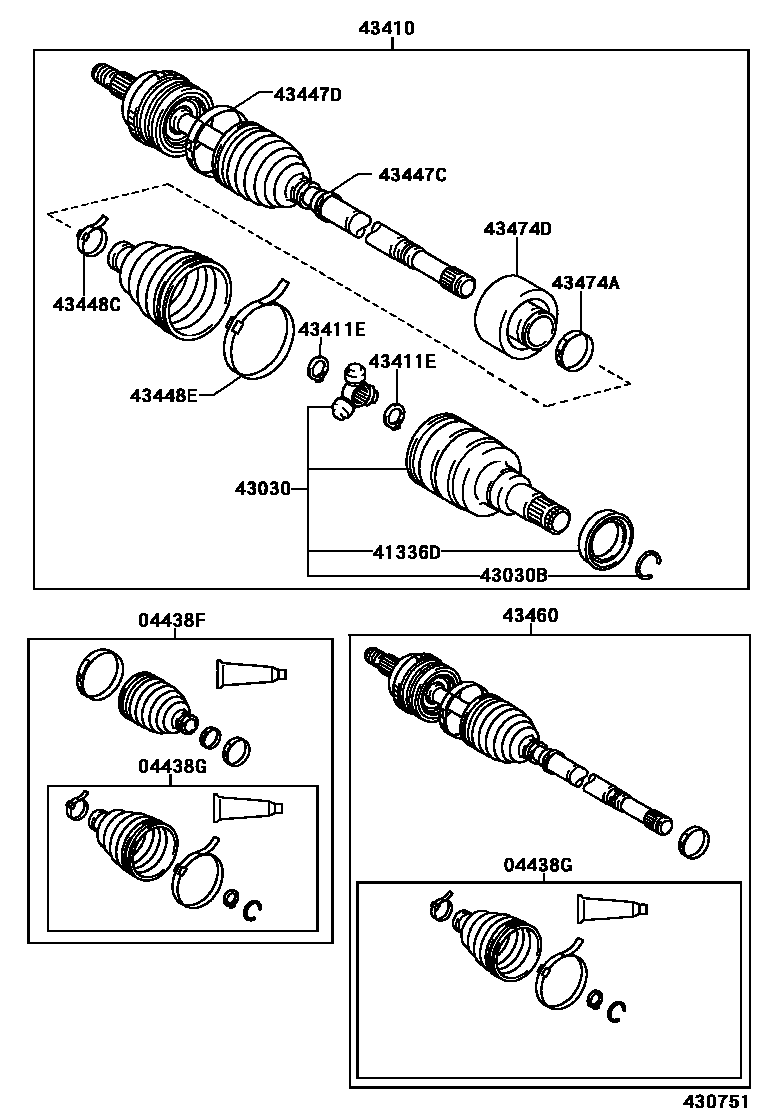

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-0D020iSCP1#200101-200302

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-0D010iSCP1#200101-200302

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0D010iSCP10..FRP200101-200302

main41336-0D020iSCP12200205-200302

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-0D010iSCP10200101-200302

main43403-0D030iSCP12200205-200302

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-0D010iNLP10,SCP1#..FRP200101-200302

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D010iSCP10200101-200302

main43410-0D020iSCP10..FRP..5FS;SCP10..FRP..TSGS200101-200302

W(ABS)

main43410-0D070iSCP12200205-200302

main43410-0D080iSCP12200205-200302

W(ABS)

main43410-0D150iNLP10..FRP200302

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D020iNLP10,SCP1#..FRP200101-200302

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D040iSCP1#200101-200302

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D030iSCP1#200101-200302

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D020iSCP1#200101-200302

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D010iSCP1#200101-200302

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09520iSCP1#200101-200302

main43460-09530iSCP1#200101-200302

W(ABS)

main43460-09530iSCP1#..FRP200302

main43460-09K10iNLP10..FRP200302

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-0D020iSCP1#200101-200302

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D010iSCP1#200101-200302

main43474-0D030iNLP10..FRP200302

14 parts on this diagram · 2 diagrams in section
