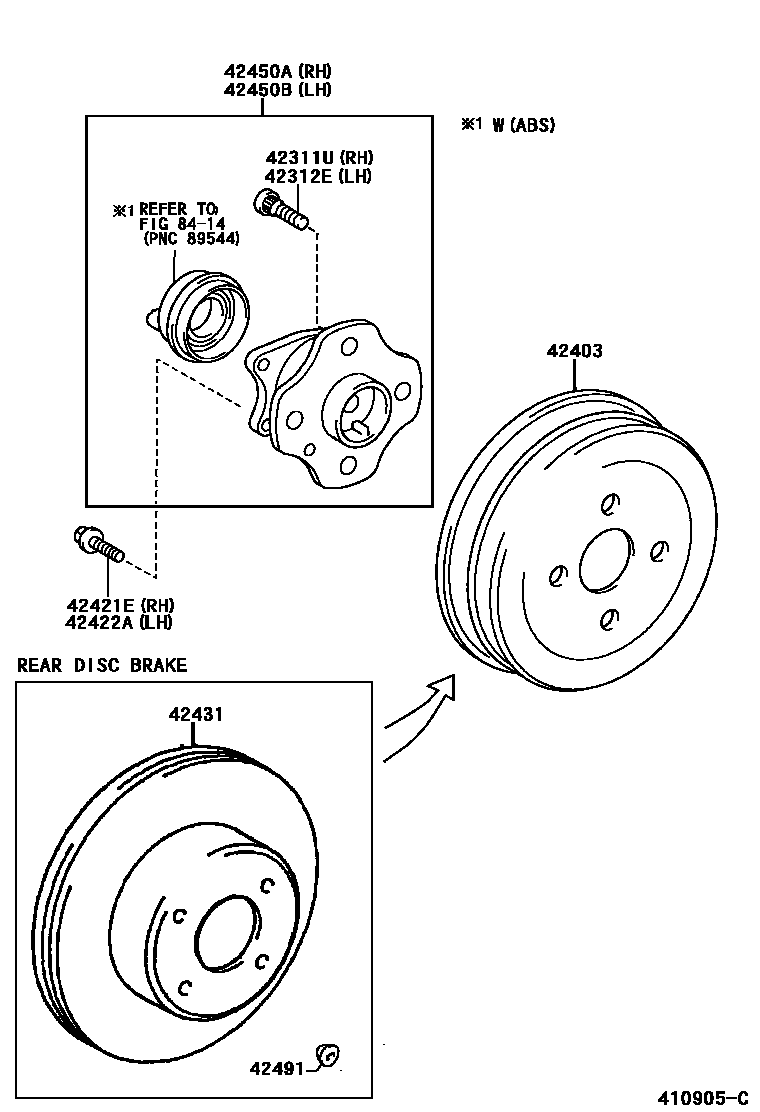

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iSCP1#¥230200101-200302

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iSCP1#¥230200101-200302

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D010iSCP1#200101-200302

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10507iSCP1#¥120200101-200302

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10507iSCP1#¥120200101-200302

42431DISC, REAR

main42431-0D050iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

(L)

main42431-52050iSCP1#¥14,300200101-200302

sub42431-12250¥10,200

main42431-52050iNLP10,SCP1#..FRP..(SOL,TRSTD)¥14,300200302

(J),REAR

sub42431-12250¥10,200

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0D010iSCP1#200101-200302

main42450-0D010iSCP1#200101-200302

W(ABS)

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0D010iSCP1#200101-200302

main42450-0D010iSCP1#200101-200302

W(ABS)

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iSCP1#¥140200101-200302

8414

10 parts on this diagram · 1 diagram in section
