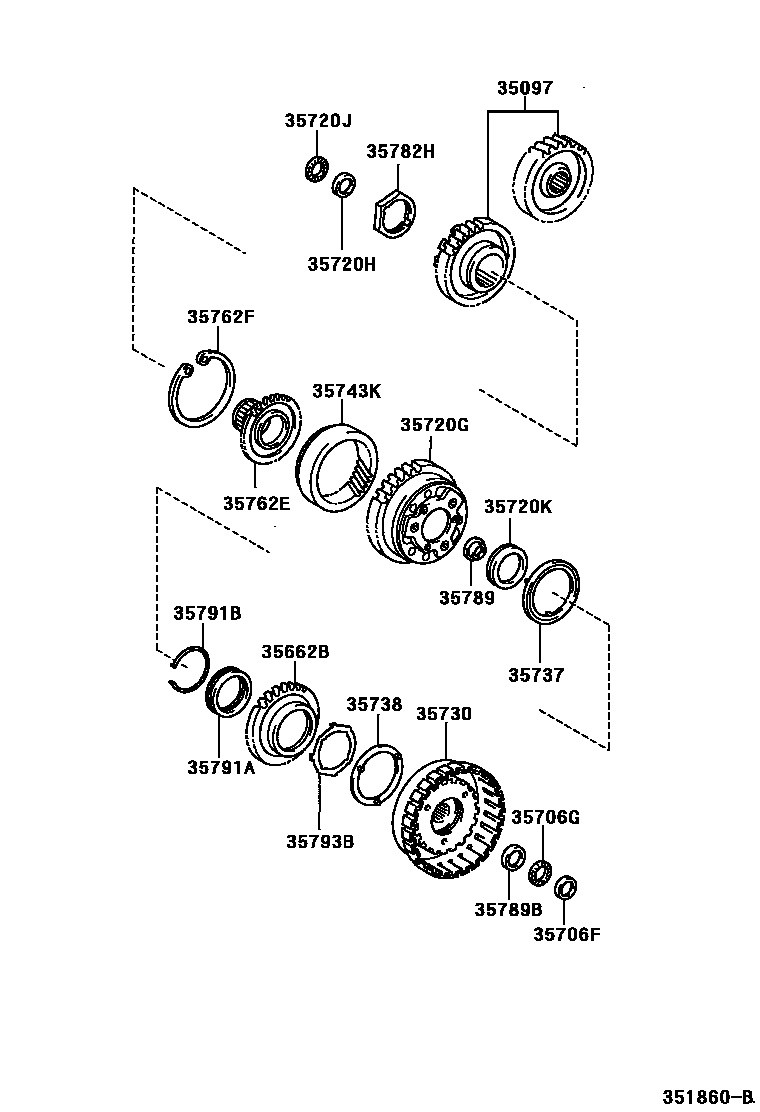

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-52011iSCP12..4FC¥32,200200205-200302

35662BHUB, 2ND BRAKE

main35662-52010iSCP12..4FC¥6,300200205-200302

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-52050iSCP12..4FC¥440200205-200302

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-18004iSCP12..4FC¥550200205-200302

35720GGEAR ASSY, PLANETARY

main35720-52010iSCP12..4FC¥31,800200205-200302

sub35720-52070¥26,500

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

main35789-52010iSCP12..4FC¥700200205-200302

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-17001iSCP12..4FC¥700200205-200302

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-42006iSCP12..4FC¥1,120200205-200302

35730GEAR ASSY, REAR PLANETARY SUN

main35730-52010iSCP12..4FC¥11,700200205-200302

35737WASHER, PLANETARY CARRIER THRUST

main35737-52010iSCP12..4FC¥320200205-200302

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-52020iSCP12..4FC¥840200205-200302

35743KGEAR, PLANETARY RING

main35743-52010iSCP12..4FC¥1,750200205-200302

35762EFLANGE, PLANETARY RING GEAR

main35762-52010iSCP12..4FC¥6,400200205-200302

35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)

main90520-89003iSCP12..4FC¥250200205-200302

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-44001iSCP12..4FC¥210200205-200302

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-52020iSCP12..4FC¥280200205-200302

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-52040iSCP12..4FC¥530200205-200302

35791ACLUTCH, 1 WAY, NO.1

main35791-52010iSCP12..4FC¥11,400200205-200302

35791BRING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90520-69003iSCP12..4FC¥220200205-200302

35793BRETAINER, 1 WAY CLUTCH

main35793-52010iSCP12..4FC¥1,330200205-200302

20 parts on this diagram · 1 diagram in section
