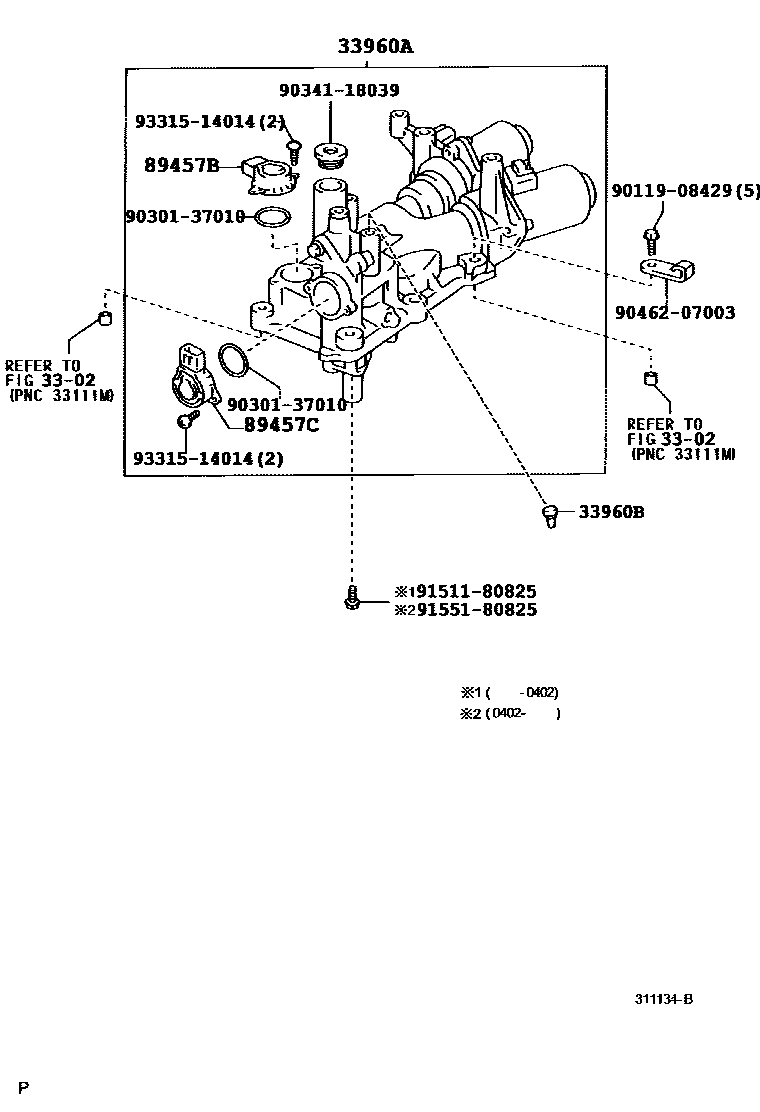

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

3302

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-52010iSCP10..FRP..5FS200302-200506

sub33960-52011

main33960-52011iSCP10..FRP..5FS200506

sub33960-52040

33960BBREATHER PLUG, SHIFT & SELECT ACTUATOR

main90930-03114iSCP10..FRP..5FS200302-200511

89457BSTROKE SENSOR, SHIFT

main89457-52010iSCP10..FRP..5FS200302

89457CSTROKE SENSOR, SELECT

main89457-52010iSCP10..FRP..5FS200302

9011908429

main90119-08429

9030137010

main90301-37010

9034118039

main90341-18039

9046207003

main90462-07003

9151180825

main91511-80825

9155180825

main91551-80825

9331514014

main93315-14014

12 parts on this diagram · 1 diagram in section
