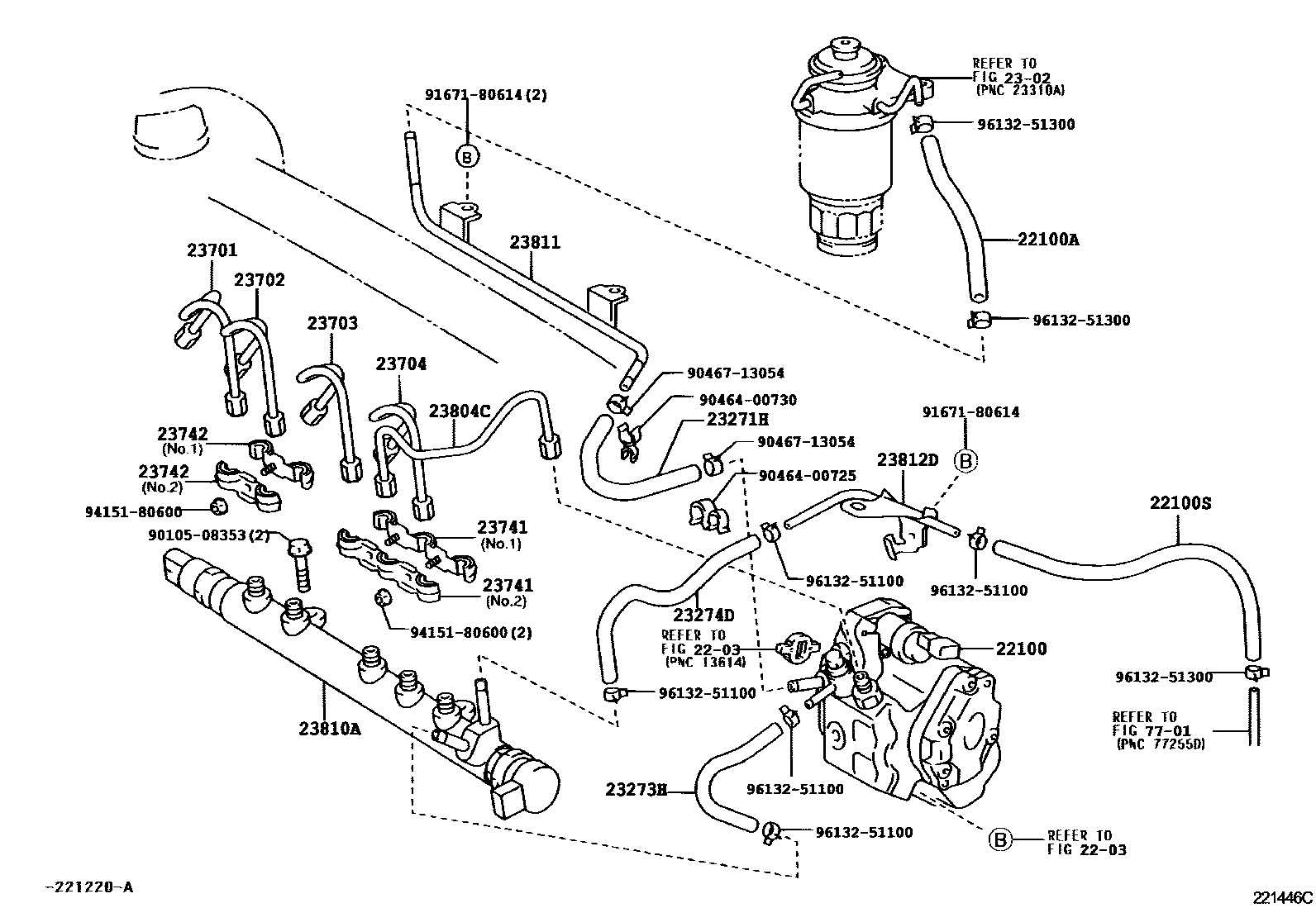

INJECTION PUMP ASSEMBLY
2203
22100PUMP ASSY, INJECTION OR SUPPLY
(L)
(L)
(J)
(J)
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
L=300(*H,L=260)
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
2302
23271HHOSE, FUEL, NO.1
23273HHOSE, FUEL, NO.2
23274DHOSE, FUEL, NO.3
23701PIPE SUB-ASSY, INJECTION, NO.1
(L)
(J)
23702PIPE SUB-ASSY, INJECTION, NO.2
(L)
23703PIPE SUB-ASSY, INJECTION, NO.3
(L)
23704PIPE SUB-ASSY, INJECTION, NO.4
(L)
(J)
23741CLAMP, INJECTION PIPE, NO.1
NO.1
NO.2
23742CLAMP, INJECTION PIPE, NO.2
NO.1
NO.2
23804CPIPE SUB-ASSY, FUEL INLET
(L)
23810ARAIL ASSY, COMMON
(L)
(J)
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23812DPIPE, FUEL, NO.2
7701
9010508353
main90105-08353
9046400725
main90464-00725
9046400730
main90464-00730
9046713054
main90467-13054
9167180614
main91671-80614
9415180600
main94151-80600
9613251100
main96132-51100
9613251300
main96132-51300
27 parts on this diagram · 1 diagram in section
