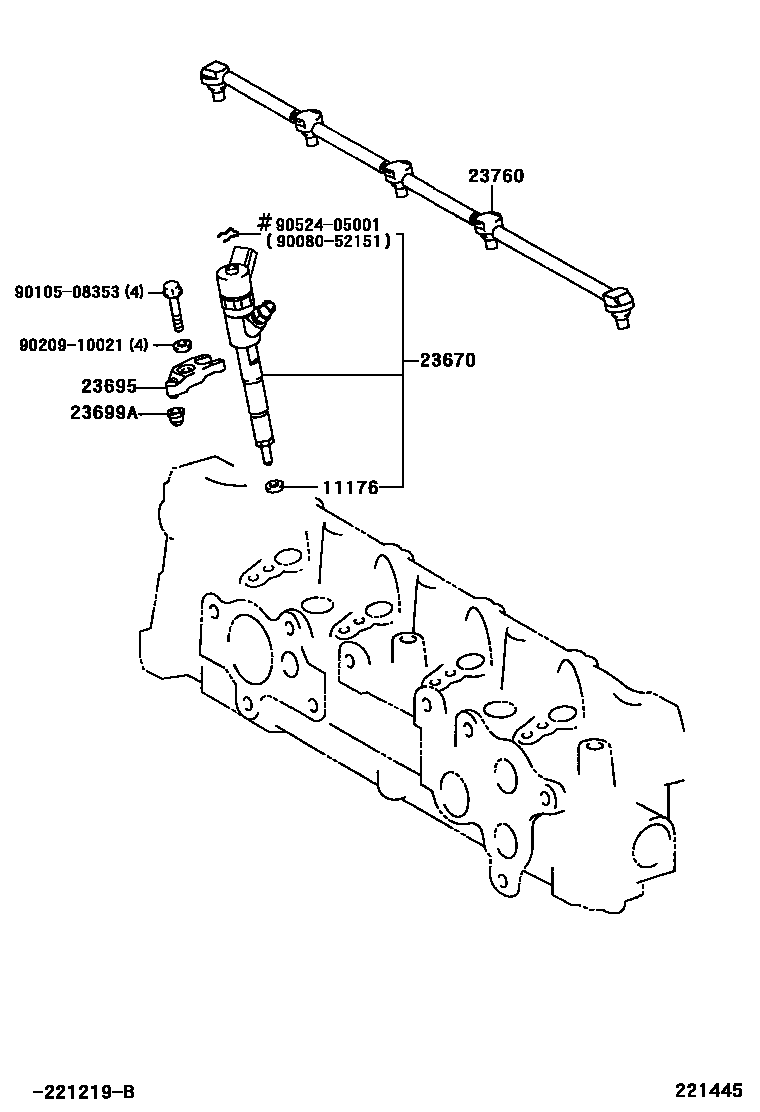

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010i1NDTV..NLP10..FRP200302

23670INJECTOR ASSY

main23670-09020-A0i1NDTV..NLP10..FRP200302-200311

MARK A,(L)

main23670-09020-B0i1NDTV..NLP10..FRP200302-200311

MARK B,(L)

main23670-09020-C0i1NDTV..NLP10..FRP200302-200311

MARK C,(L)

main23670-09025-A0i1NDTV..NLP10..FRP200311

MARK A,(L)

main23670-09025-B0i1NDTV..NLP10..FRP200311

MARK B,(L)

main23670-09025-C0i1NDTV..NLP10..FRP200311

MARK C,(L)

main23670-39055-A0i1NDTV..NLP10..FRP200302-200311

MARK A,(J)

main23670-39055-B0i1NDTV..NLP10..FRP200302-200311

MARK B,(J)

main23670-39055-C0i1NDTV..NLP10..FRP200302-200311

MARK C,(J)

main23670-39115-A0i1NDTV..NLP10..FRP200311

MARK A,(J)

main23670-39115-B0i1NDTV..NLP10..FRP200311

MARK B,(J)

main23670-39115-C0i1NDTV..NLP10..FRP200311

MARK C,(J)

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0N010i1NDTV..NLP10..FRP200302

(L)

sub23695-0N011

main23695-33010i1NDTV..NLP10..FRP200302

(J)

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-33010i1NDTV..NLP10..FRP200411

main23699-74010i1NDTV..NLP10..FRP200302-200411

sub23699-33010

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0N010i1NDTV..NLP10..FRP200302

(L)

main23760-33010i1NDTV..NLP10..FRP200302

(J)

9008052151

main90080-52151

9010508353

main90105-08353

9020910021

main90209-10021

9052405001

main90524-05001

9 parts on this diagram · 1 diagram in section
