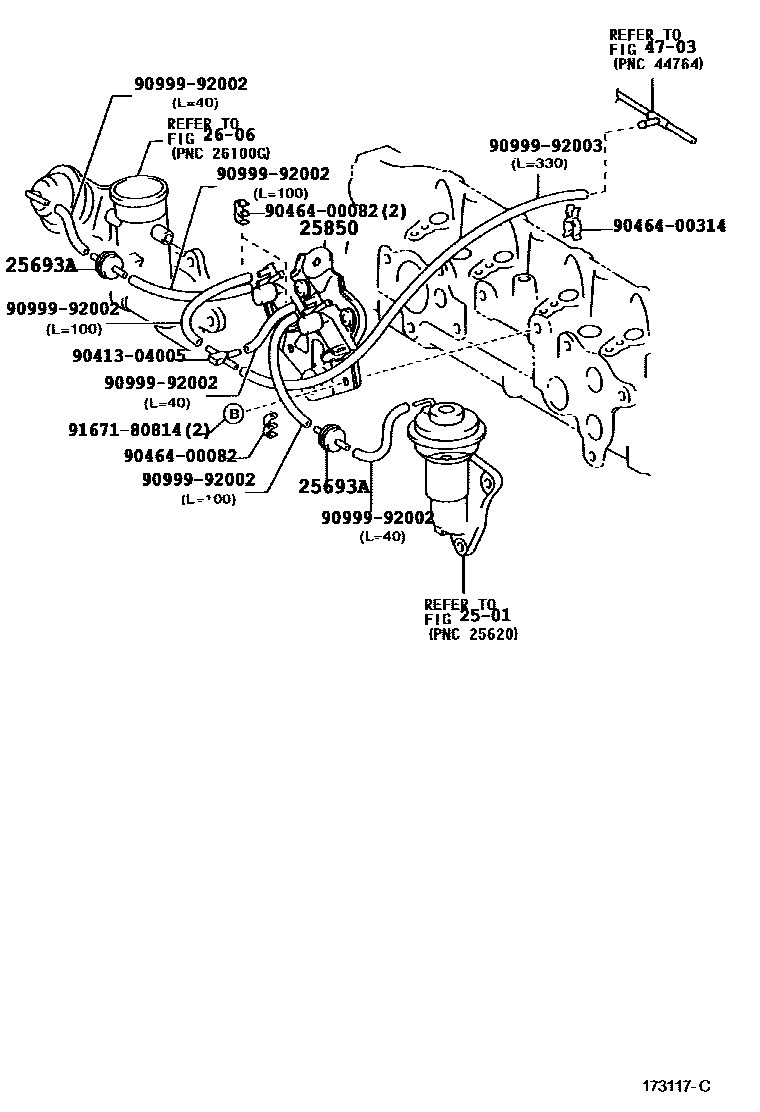

VACUUM PIPING

0001 1 0002 1

2501

25693ADAMPER, EGR VACUUM MODULATOR

main25693-58010i1NDTV..NLP10..FRP200302

25850VALVE ASSY, ELECTRIC VACUUM REGULATING

main25850-33010i1NDTV..NLP10..FRP200302

2606

4703

9041304005

main90413-04005

9046400082

main90464-00082

9046400314

main90464-00314

9099992002

main90999-92002

9099992003

main90999-92003

9167180814

main91671-80814

11 parts on this diagram · 2 diagrams in section
