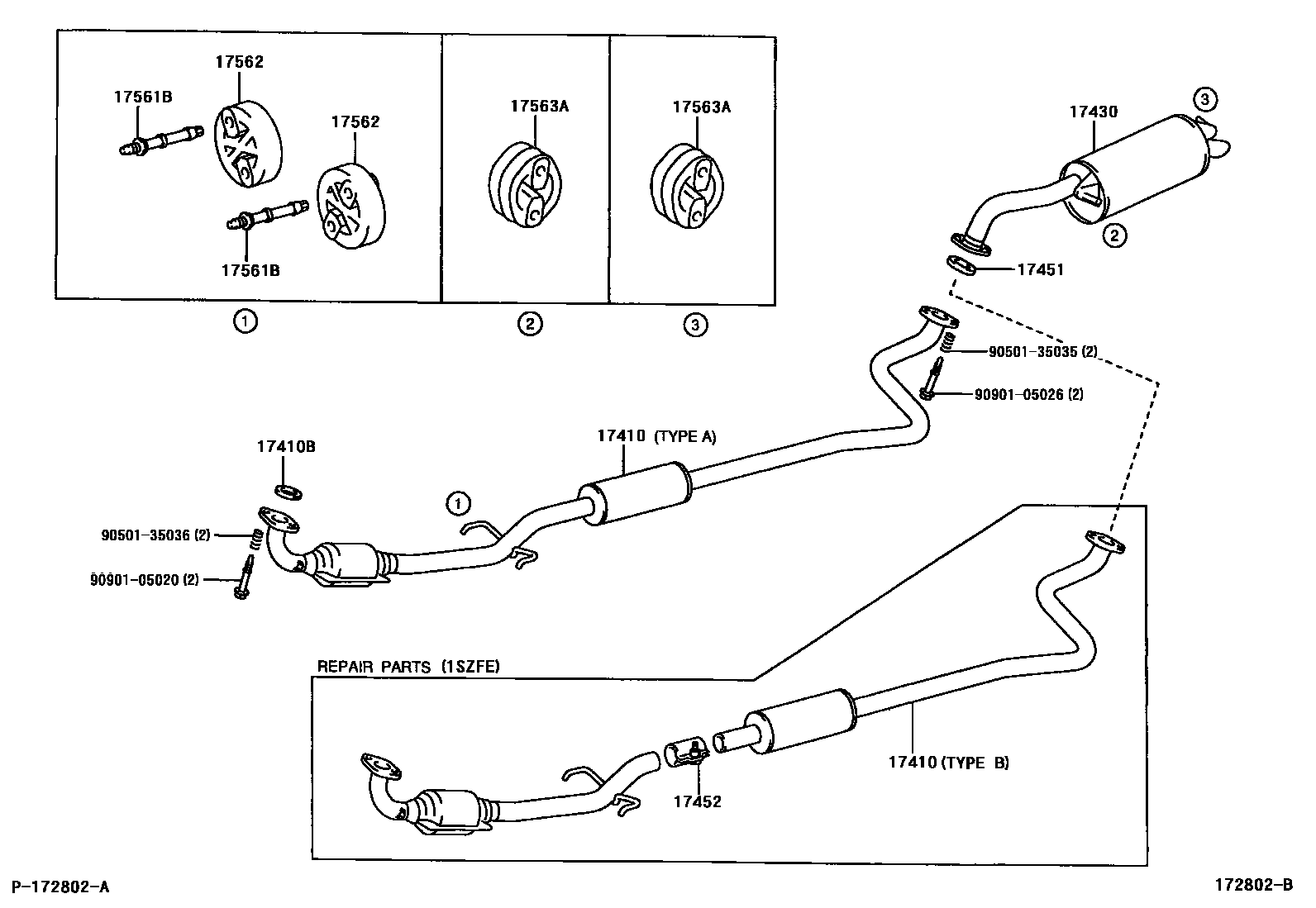

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0J010i1SZFE..SCP10200101-200302

*114=TOYOTA/T60/Y,TYPE A:REFER TO ILLUSTRATION

main17410-0J020i1SZFE..SCP10200101-200302

TYPE B:REFER TO ILLUSTRATION

main17410-0J032i2SZFE..SCP12200205-200302

main17410-0J040i1SZFE..SCP10..FRP200302

main17410-0N010i1NDTV..NLP10..FRP200302

17410BGASKET, EXHAUST PIPE

main17451-0D010i2SZFE..SCP12200205-200302

main17451-0E010i1SZFE..SCP10200101-200302

main17451-0N010i1NDTV..NLP10..FRP200302

17430PIPE ASSY, EXHAUST, TAIL

main17430-0J010i1SZFE..SCP10200101-200302

main17430-0J020i2SZFE..SCP12..FRP200205-200302

main17430-0N010i1NDTV..NLP10..FRP200302

17451GASKET, EXHAUST PIPE

main17451-0J010i1SZFE,2SZFE..SCP1#200101-200302

sub17451-0J011

17452CLAMP, EXHAUST PIPE

main17452-0J010i1SZFE..SCP10200101-200302

17561BSUPPORT, EXHAUST PIPE, NO.1

main17584-23020i1SZFE,2SZFE..SCP1#200101-200302

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-0J010i1SZFE,2SZFE..SCP1#200101-200302

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-0J020i1SZFE..SCP10200101-200107

(L)

sub17565-0J030

main17565-0J030i1SZFE,2SZFE..SCP1#200107-200302

(L)

sub17565-0J031

main17565-0J030i1NDTV,1SZFE,2SZFE..NLP10,SCP1#200302

sub17565-0J031

main17565-21030i2SZFE..SCP12200205-200302

(J)

sub17565-22030

main17565-46040i1SZFE..SCP10200101-200302

(J)

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 4 diagrams in section
