V-BELT

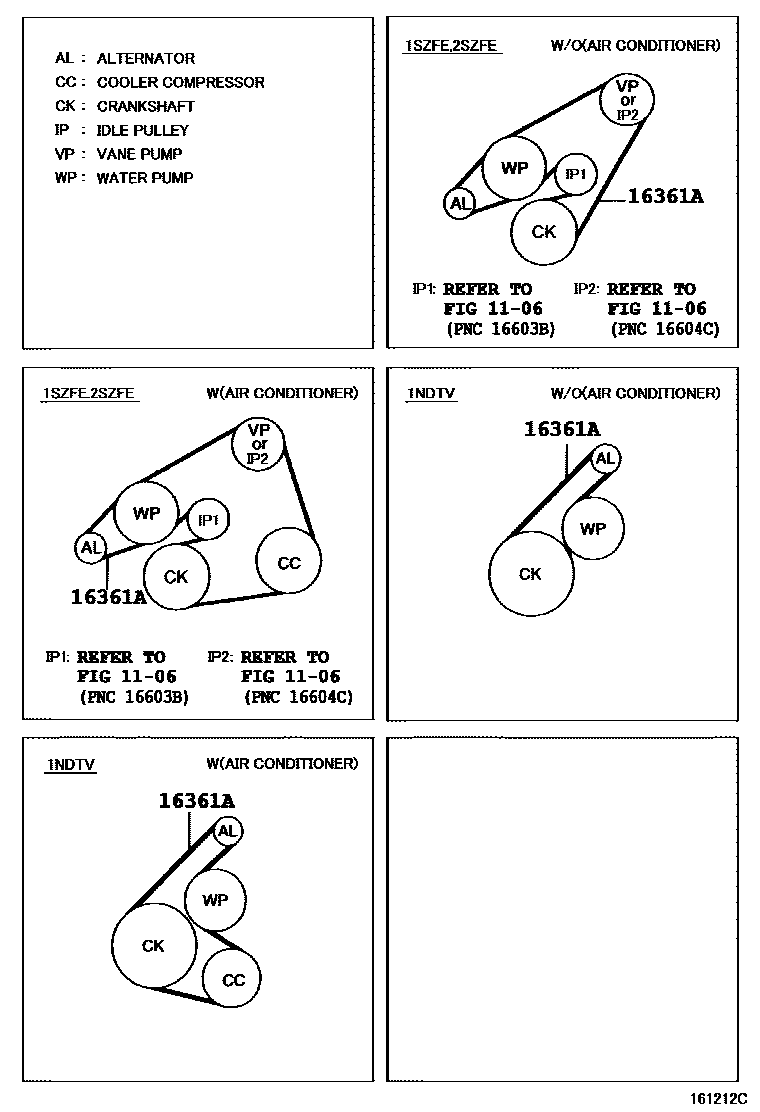

Parts diagram
1106
16361ABELT, V(FOR FAN & ALTERNATOR)
main90080-91198i200101-200302
L=780
main90080-91198i200302
main90080-91199i200101-200302
W(AIR CONDITIONER)
main90080-91223i200205-200302
W(AIR CONDITIONER)
main99365-A0930i200302-200401
sub99365-C0930
main99365-A1190i200302-200401
W(AIR CONDITIONER)
sub99365-C1190
main99365-C0930i200401
main99365-C1190i200401
W(AIR CONDITIONER)

2 parts on this diagram · 1 diagram in section
