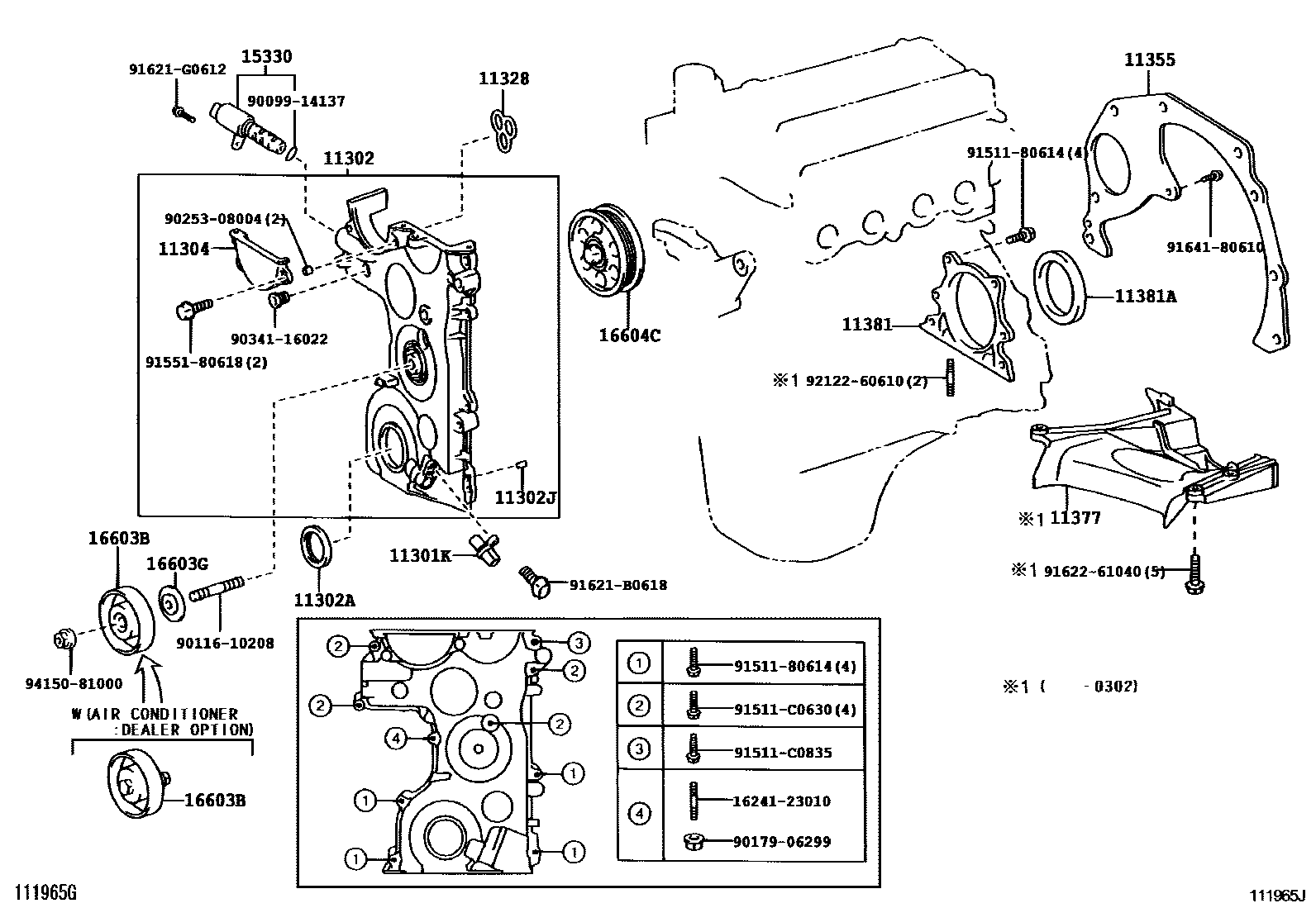

TIMING GEAR COVER & REAR END PLATE
11301KSENSOR, CRANK POSITION
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
sub90311-35040
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
11328GASKET, TIMING GEAR OR CHAIN COVER
11355PLATE, REAR END
11377STIFFENER, REAR END PLATE
11381ASEAL, ENGINE REAR OIL
sub90311-W0014
15330VALVE ASSY, CAM TIMING OIL CONTROL
(J)
16603BPULLEY SUB-ASSY, IDLER
W(AIR CONDITIONER (DEALER OPTION))
16603GCOLLAR, IDLER PULLEY
16604CPULLEY SUB-ASSY, IDLER, NO.2
1624123010BOLT, STUD(FOR WATER PUMP COUPLING)
main16241-23010
9009914137
main90099-14137
9011610208
main90116-10208
9017906299
main90179-06299
9025308004
main90253-08004
9034116022
main90341-16022
9151180614
main91511-80614
91511C0630
main91511-C0630
91511C0835
main91511-C0835
9155180618
main91551-80618
91621B0618
main91621-B0618
91621G0612
main91621-G0612
9162261040
main91622-61040
9164180610
main91641-80610
9212260610
main92122-60610
9415081000
main94150-81000
30 parts on this diagram · 2 diagrams in section
