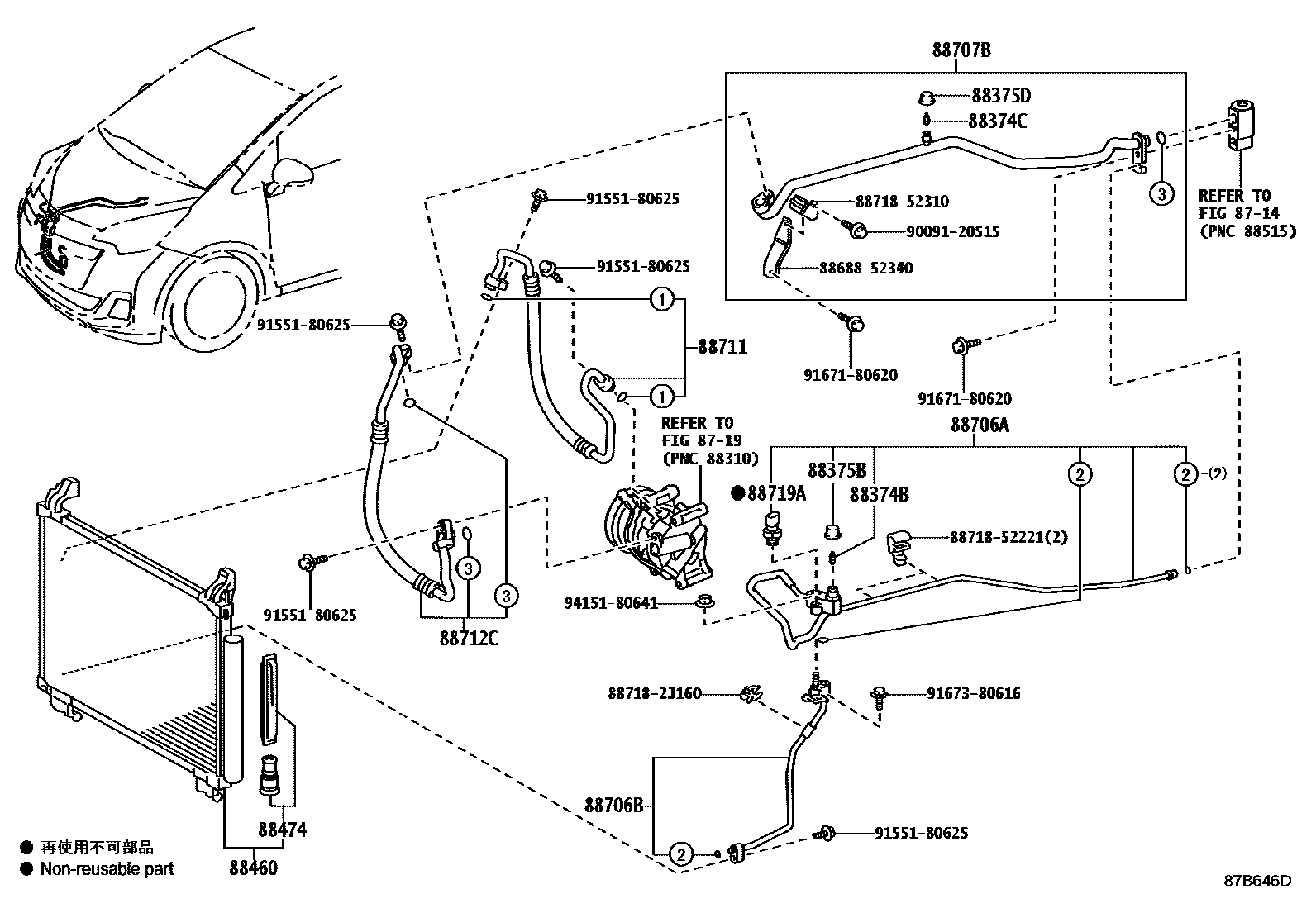

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1DEALER OPTION 0003 1 0004 1 0005 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

88374CVALVE, SERVICE, NO.2

88375BCAP, SERVICE VALVE, NO.1

88375DCAP, SERVICE VALVE, NO.2

88460CONDENSER ASSY, COOLER

main88460-52130

main88460-52150

88474DRYER, COOLER

main88474-17010iNLP121201405-201504

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

88706ATUBE SUB-ASSY, LIQUID, A

88706BTUBE SUB-ASSY, LIQUID, B

88707BTUBE SUB-ASSY, SUCTION, B

main88707-52260iNLP121201011-201405

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52370

main88711-52390

88712CHOSE, SUCTION

88719ASENSOR, AIR CONDITIONER PRESSURE

8868852340BRACKET, COOLER DIAPHRAGM

main88688-52340

887182J160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J160

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

8871852310PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52310

9009120515

main90091-20515

9155180625

main91551-80625

9167180620

main91671-80620

9167380616

main91673-80616

9415180641

main94151-80641

23 parts on this diagram · 5 diagrams in section
