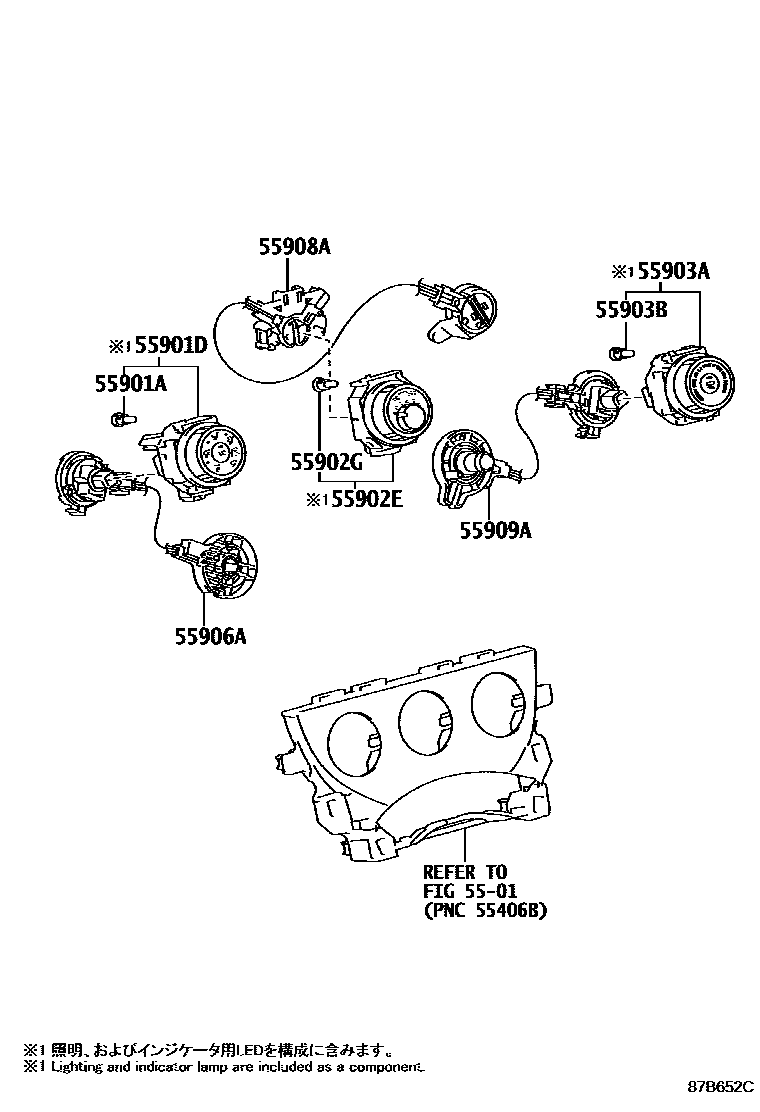

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55901ABULB, HEATER CONTROL SUB-ASSY, NO.1
FRONT AIR CONDITIONER-WITH(AUTO)
55901DCONTROL SUB-ASSY, HEATER, NO.1
FRONT AIR CONDITIONER-WITH(AUTO)
FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)
55902ECONTROL SUB-ASSY, HEATER, NO.2
FRONT AIR CONDITIONER-WITH(AUTO)
55902GBULB, HEATER CONTROL SUB-ASSY, NO.2
FRONT AIR CONDITIONER-WITH(AUTO)
55903ACONTROL SUB-ASSY, HEATER, NO.3
REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-WITH(AUTO)
COLD SPEC & WITH(REAR HEATER DUCT)&REAR WINDOW DEFOGGER-HI-POWER TYPE WITH(TIMER)&FRONT AIR CONDITIONER-DEALER KIT
COLD SPEC & WITH(REAR HEATER DUCT)
55903BBULB, HEATER CONTROL SUB-ASSY, NO.3
REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-WITH(AUTO)
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
FRONT AIR CONDITIONER-WITH(AUTO)
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
FRONT AIR CONDITIONER-WITH(AUTO)
FRONT AIR CONDITIONER-WITH(AUTO)
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
FRONT AIR CONDITIONER-WITH(AUTO)
10 parts on this diagram · 6 diagrams in section
