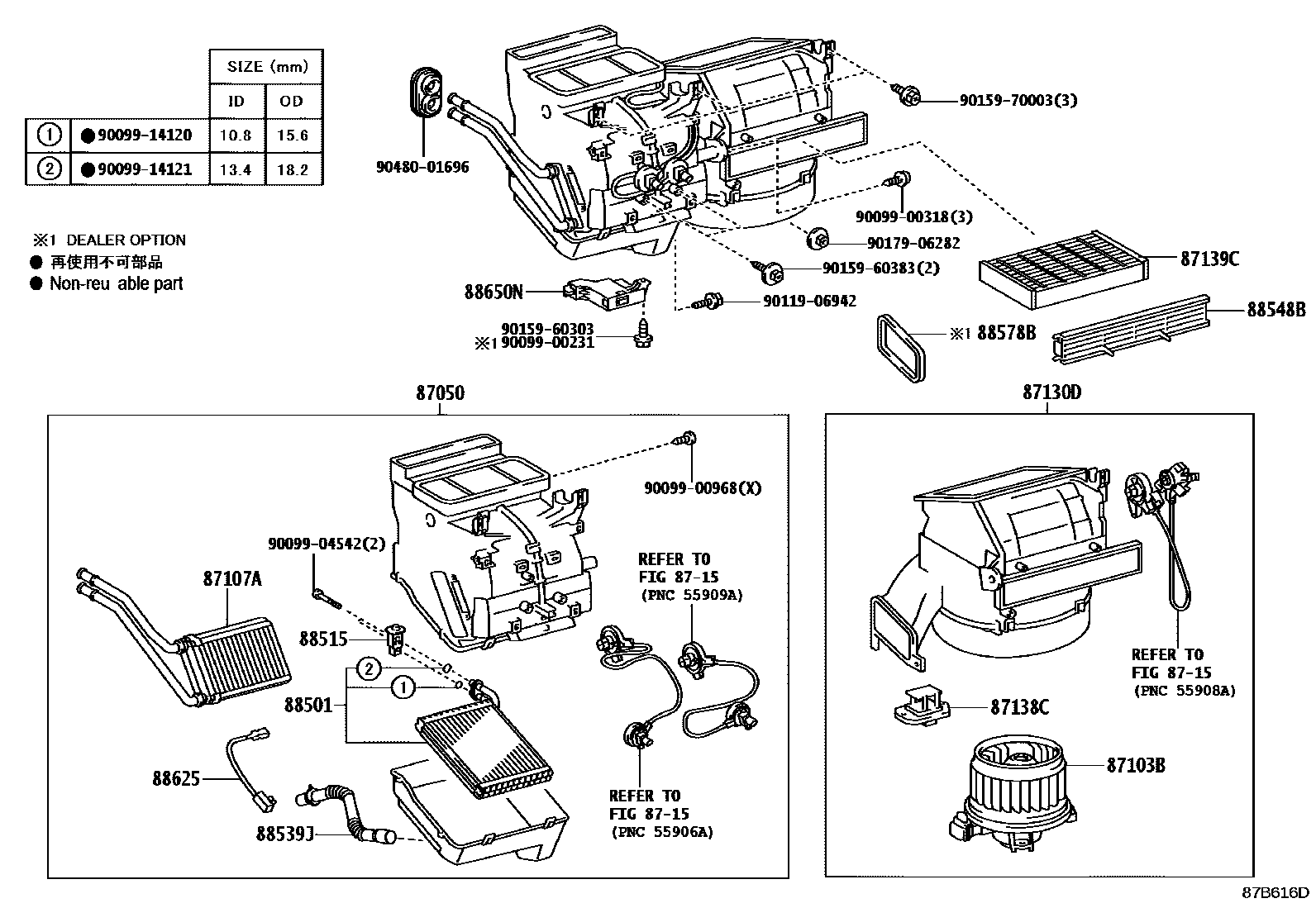

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER & W(HE0003 1AUTO AIR CONDITIONER 0004 1AUTO AIR CONDITIONER & W(HEAT0005 1W/O(AIR CONDITIONER) 0006 1W/O(AIR CONDITIONER) & W(HEAT0007 1MANUAL AIR CONDITIONER 0008 1AUTO AIR CONDITIONER 0009 1W/O(AIR CONDITIONER)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52063iNLP121,NSP120..LHD201011-201405

main87050-52051iNSP120..RHD201011-201405

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

main87050-52102iNLP121,NSP120..LHD201405-201504

FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)

main87050-52141iNSP120..RHD..LUNA201405-201504

FRONT AIR CONDITIONER-WITH(AUTO)

main87050-52221iNSP120..LHD201011-201405

COLD SPEC & WITH(REAR HEATER DUCT)

main87050-52230iNSP120..LHD201405-201504

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)

main87050-52240iNLP121201405-201504

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)

main87050-52250iNLP121,NSP120..LHD..LUNA201011-201405

FRONT AIR CONDITIONER-WITH(AUTO)

main87050-52260iNLP121..LUNA201405-201504

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52120iNSP120..RHD201011-201012

sub87103-52121

main87103-52121iNSP120..RHD201101-201504

main87103-52141iNLP121,NSP120..LHD201011-201504

main87103-52131iNSP120..RHD..LUNA201011-201012

FRONT AIR CONDITIONER-WITH(AUTO)

sub87103-52132

main87103-52132iNSP120..RHD..LUNA201101-201405

FRONT AIR CONDITIONER-WITH(AUTO)

main87103-52151iNLP121..LUNA201011-201012

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO)

sub87103-52152

main87103-52152iNLP121..LUNA201101-201405

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO)

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52061iNLP121,NSP120201011-201504

87130DBLOWER ASSY

main87130-52092iNLP121,NSP120..LHD201011-201405

main87130-52061iNSP120..RHD..LUNA201405-201504

FRONT AIR CONDITIONER-WITH(AUTO)

main87130-52102iNLP121..LUNA201011-201405

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO)

main87130-52132iNLP121..6F201011-201405

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

main87130-52180iNSP120..RHD201011-201405

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

87138CRESISTOR, BLOWER

main87138-52030iNLP121,NSP120201011-201504

87139CFILTER, CLEAN AIR

main87139-50100iNLP121,NSP120201405-201504

*DPF

main87139-52040iNLP121,NSP120201405-201504

POLLEN FILTER

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52102iNLP121,NSP120201011-201111

sub88501-52103

main88501-52103iNLP121,NSP120201112-201504

88515VALVE, COOLER EXPANSION

main88515-68010iNLP121,NSP120201011-201504

88539JHOSE, DRAIN COOLER

main88539-52020iNLP121,NSP120201011-201012

sub88539-52030

sub88539-52040

main88539-52030iNSP120..RHD201101-201504

main88539-52040iNLP121,NSP120..LHD201101-201504

88548BCASE, AIR FILTER

main88548-52040iNLP121,NSP120201011-201504

88578BPACKING, COOLING UNIT, NO.1

main88578-52100iNLP121201405-201504

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

88625THERMISTOR, COOLER, NO.1

main88625-26090iNLP121,NSP120201011-201504

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52690iNSP120..LHD201011-201405

COLD SPEC & WITH(REAR HEATER DUCT)

main88650-52700iNSP120..LHD201405-201504

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)

main88650-52710iNLP121..LUNA201011-201405

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO)

main88650-52720iNLP121,NSP120201405-201504

FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)

9009900231

main90099-00231

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

26 parts on this diagram · 9 diagrams in section
