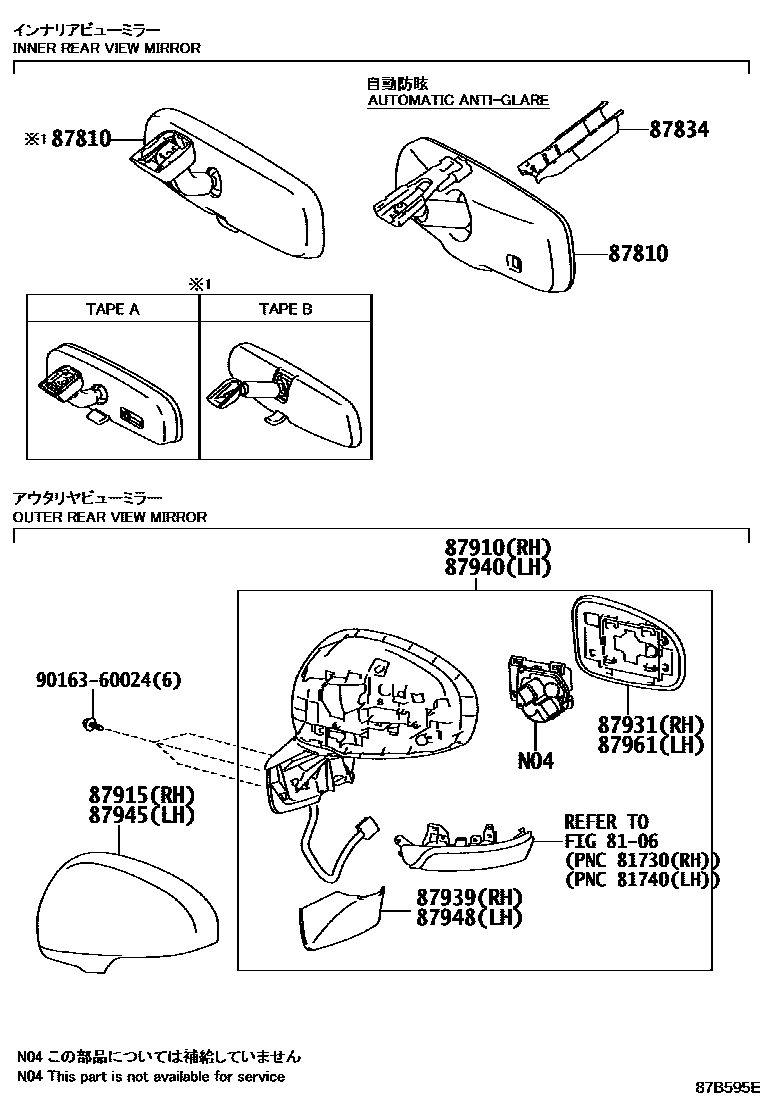

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
TYPE A
TYPE B
HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)
HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
BRONZE M.M.,4T3
GRAYISH BLUE ME.,8R3
LT.BLUE M.M.,8S7
SATIN BLUE M.M.,8V9
DEEP AMETHYST M.M.,9AH
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
BRONZE M.M.,4T3
GRAYISH BLUE ME.,8R3
LT.BLUE M.M.,8S7
SATIN BLUE M.M.,8V9
DEEP AMETHYST M.M.,9AH
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
9016360024
main90163-60024
12 parts on this diagram · 1 diagram in section
