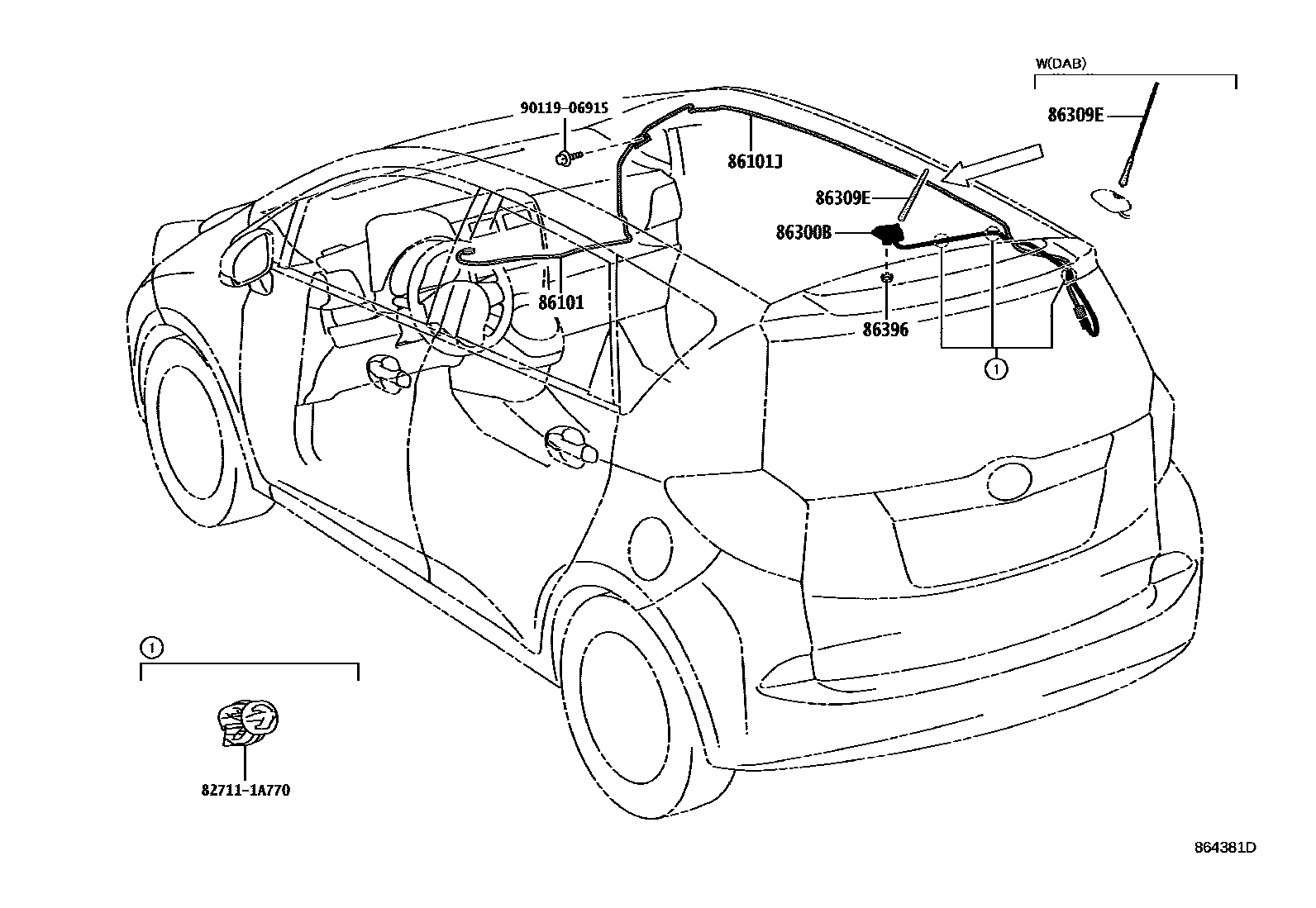

ANTENNA

0001 1 0002 1 0003 1 0004 1

86101CORD SUB-ASSY, ANTENNA

main86101-52750iNLP121,NSP120..LHD201011-201504

main86101-52780iNSP120..RHD201011-201504

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52730iNLP121,NSP120201011-201504

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52480iNLP121,NSP120201011-201212

main86300-52640iNLP121,NSP120201212-201405

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iNLP121,NSP120201011-201504

86396NUT, ANTENNA

main86396-47010iNLP121,NSP120201011-201504

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

7 parts on this diagram · 4 diagrams in section
