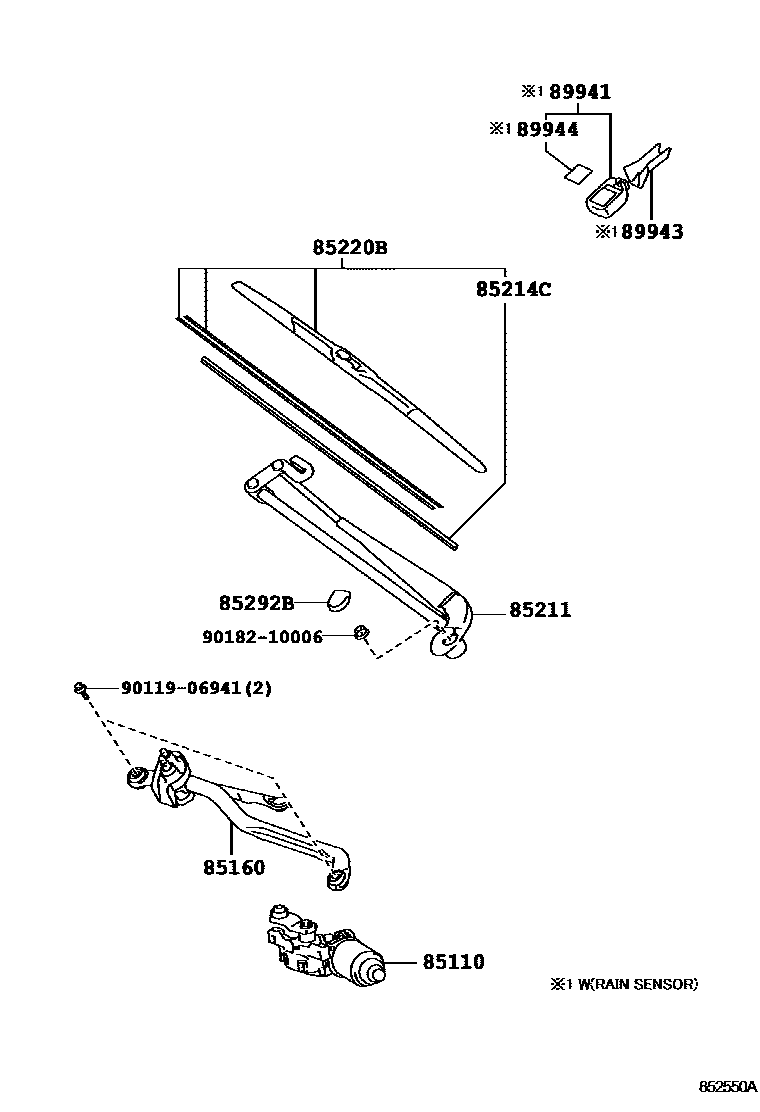

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52580iNLP121,NSP120..LHD201011-201405

sub85110-52780

main85110-52590iNSP120..RHD201011-201405

sub85110-52790

main85110-52780iNLP121,NSP120..LHD201405-201504

main85110-52790iNSP120..RHD201405-201504

85160LINK ASSY, WINDSHIELD WIPER

main85150-52490iNLP121,NSP120..LHD201011-201111

main85150-52560iNSP120..RHD201011-201111

main85150-52670iNLP121,NSP120..LHD201111-201504

main85150-52680iNSP120..RHD201111-201504

85211ARM, FRONT WIPER

main85211-52380iNSP120..RHD201011-201111

sub85211-52510

main85211-52490iNSP120..RHD201111-201112

sub85211-52491

main85211-52491iNSP120..RHD201112-201504

main85221-52350iNLP121,NSP120..LHD201011-201111

sub85221-52460

main85221-52450iNLP121,NSP120..LHD201111-201112

sub85221-52451

main85221-52451iNLP121,NSP120..LHD201112-201504

85214CRUBBER, WIPER BLADE, CENTER

main85214-28080iNLP121,NSP120201011-201112

main85214-52070iNLP121,NSP120201112-201504

sub85214-28080

85220BBLADE, FRONT WIPER

main85212-52190iNSP120..RHD201011-201104

sub85212-52240

main85212-52240iNSP120..RHD201104-201111

main85212-52270iNSP120..RHD201112-201203

sub85212-52271

main85212-52271iNSP120..RHD201204-201504

main85222-52190iNLP121,NSP120..LHD201011-201104

sub85222-52270

main85222-52270iNLP121,NSP120..LHD201104-201112

main85222-52280iNLP121,NSP120..LHD201112-201203

sub85222-52281

main85222-52281iNLP121,NSP120..LHD201204-201504

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iNLP121,NSP120201011-201504

89941SENSOR, RAIN

main89941-52010iNLP121..LUNA201405-201504

HI GRADE(WITHOUT PANORAMA)

89943COVER, RAIN SENSOR

main89943-28010iNLP121..LUNA201405-201504

HI GRADE(WITHOUT PANORAMA)

89944TAPE, RAIN SENSOR

main89944-42010iNLP121,NSP120..LUNA201011-201405

HI GRADE (WITHOUT PANORAMA)

9011906941

main90119-06941

9018210006

main90182-10006

11 parts on this diagram · 2 diagrams in section
