TIRE PRESSURE WARNING SYSTEM

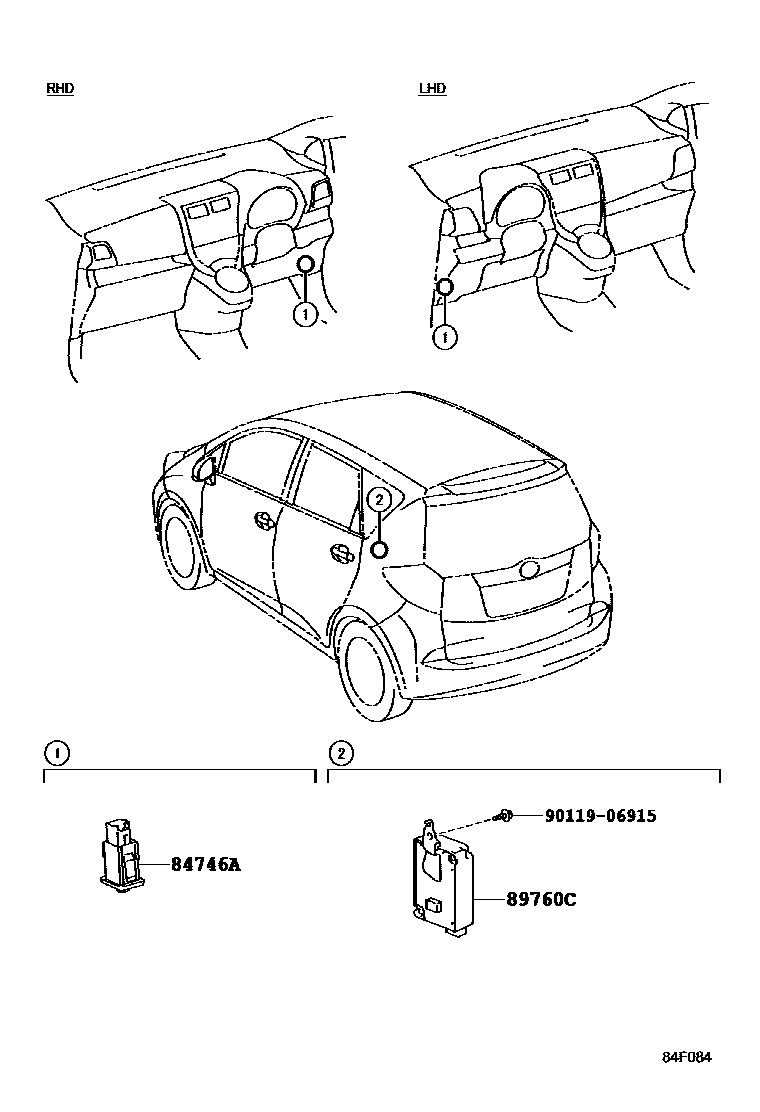

Parts diagram

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-48010i201405-201504

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-52080i201405-201504

9011906915

main90119-06915

3 parts on this diagram · 1 diagram in section
