AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-52A10iNLP121,NSP120..LHD201011-201405

main89170-52F50iNSP120..RHD201011-201504

main89170-52850iNSP120..LHD201110-201208

TURKEY SPEC&VSC-WITHOUT

main89170-52A80iNSP120..LHD201208-201212

RUSSIA SPEC&VSC-WITHOUT

main89170-52F00iNSP120..LHD201208-201212

TURKEY SPEC&VSC-WITHOUT

main89170-52L50iNSP120..LHD201110-201208

RUSSIA SPEC&VSC-WITHOUT

89173SENSOR, AIRBAG, FRONT

main89173-59265iNLP121,NSP120201011-201405

MARK=89173-52090

main89173-59265iNLP121,NSP120201405-201504

main89173-79015iNSP120..LHD201109-201208

UKRAINE SPEC&VSC-WITHOUT,MARK=89173-74020

89175BRACKET, AIRBAG SENSOR

main89175-52020iNLP121,NSP120201011-201504

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-52020iNSP120..LHD201011-201405

WITHOUT *WVTA SPEC

main89831-52020iNLP121,NSP120201405-201504

main89831-52090iNSP120..LHD201109-201208

TURKEY SPEC&VSC-WITHOUT

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-52020iNSP120..LHD201011-201405

WITHOUT *WVTA SPEC

main89831-52020iNLP121,NSP120201405-201504

main89831-52090iNSP120..LHD201109-201208

TURKEY SPEC&VSC-WITHOUT

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-52020iNSP120..LHD201011-201405

WITHOUT *WVTA SPEC

main89831-52020iNLP121,NSP120201405-201504

main89831-52090iNSP120..LHD201109-201208

RUSSIA SPEC&VSC-WITHOUT

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-52020iNSP120..LHD201011-201405

WITHOUT *WVTA SPEC

main89831-52020iNLP121,NSP120201405-201504

main89831-52090iNSP120..LHD201109-201208

RUSSIA SPEC&VSC-WITHOUT

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0610

main91553-A0610

91553A0625

main91553-A0625

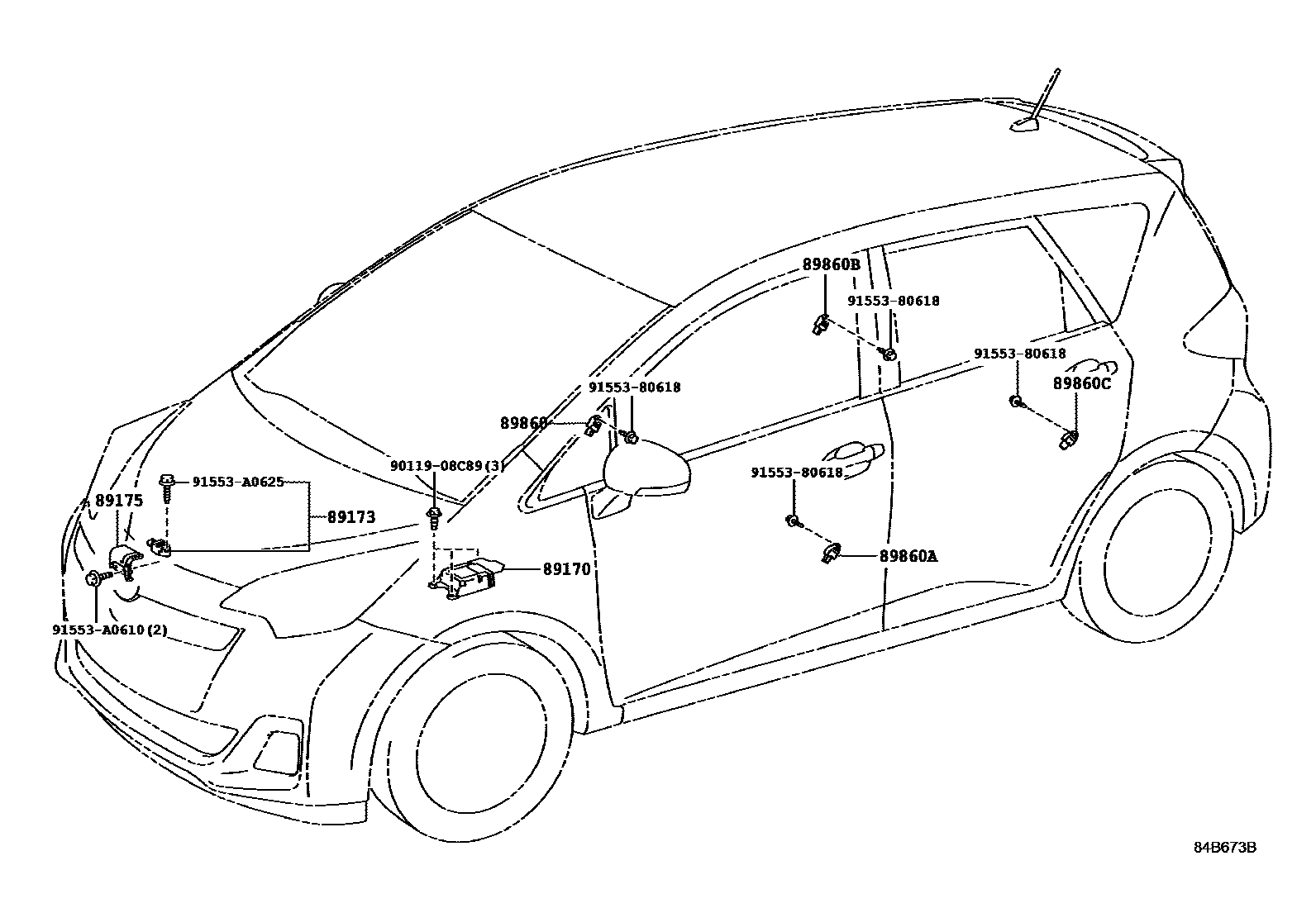

11 parts on this diagram · 1 diagram in section
