WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89741-52470i201011-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

main89741-52470i201405-201504

HI GRADE(WITH/PANORAMA)&WIRELESS DOOR LOCK-W(SMART ENTRY:FRONT&BACK)&W(PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)

main89741-52480i201405-201504

HI GRADE(WITHOUT PANORAMA)&WIRELESS DOOR LOCK-W(SMART ENTRY:FRONT&BACK)&W(PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)

main89741-52480i201011-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)

main89740-52180i201011-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201011-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

89990ACOMPUTER ASSY, SMART KEY

main89990-52170i201011-201102

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)

sub89990-52171

main89990-52171i201103-201401

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)

sub89990-52172

main89990-52172i201401-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)

main89990-52250i201011-201102

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

sub89990-52251

main89990-52251i201103-201401

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

sub89990-52252

main89990-52252i201401-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

89997ANTENNA, ELECTRICAL KEY

main89997-30070i201011-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010i201011-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010i201011-201405

HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

9011906915

main90119-06915

9015950322

main90159-50322

9015960613

main90159-60613

9018305103

main90183-05103

9415180600

main94151-80600

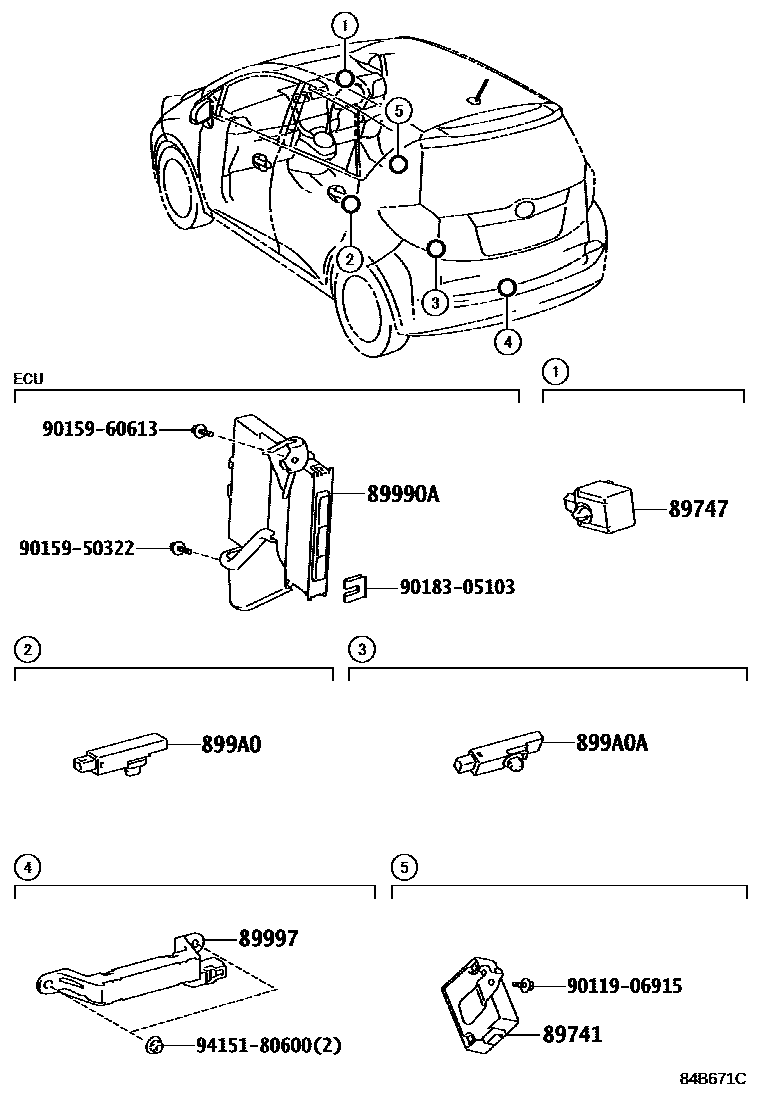

11 parts on this diagram · 2 diagrams in section
