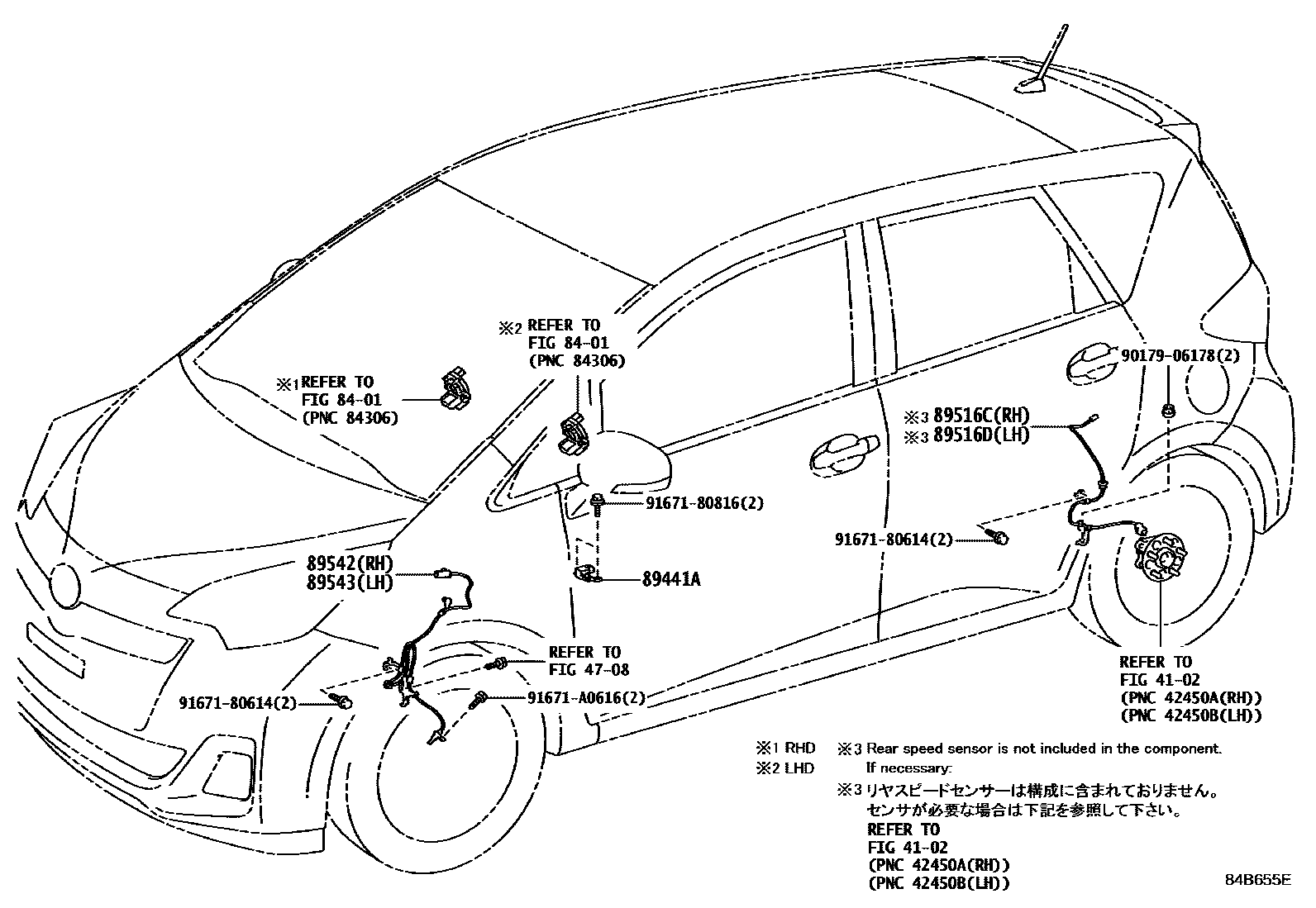

ABS & VSC

4102

4708

8401

89441ASENSOR, DECELERATION

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52130iNLP121,NSP120201011-201504

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52140iNLP121,NSP120201011-201504

89542SENSOR, SPEED, FRONT RH

main89542-52090iNLP121,NSP120201011-201210

main89542-52100iNLP121,NSP120201211-201504

89543SENSOR, SPEED, FRONT LH

main89543-52090iNLP121,NSP120201011-201210

main89543-52100iNLP121,NSP120201211-201504

9017906178

main90179-06178

9167180614

main91671-80614

9167180816

main91671-80816

91671A0616

main91671-A0616

12 parts on this diagram · 1 diagram in section
