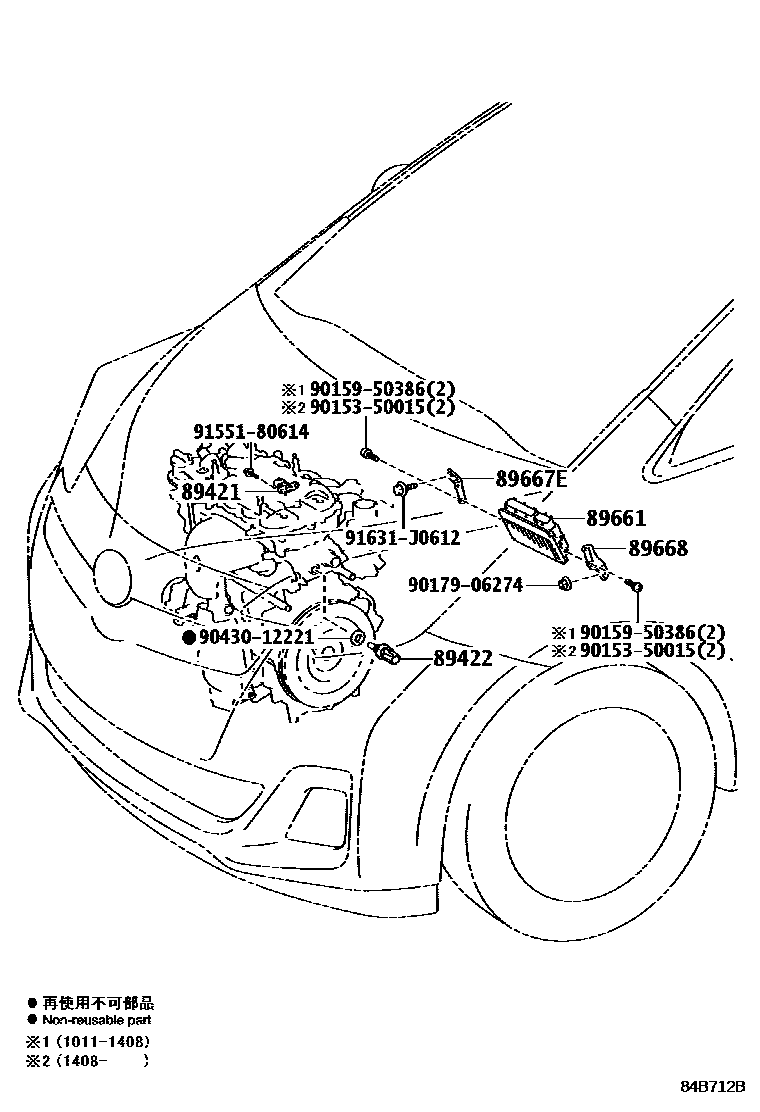

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNSP120201011-201504

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNSP120201011-201504

89661COMPUTER, ENGINE CONTROL

main89661-52N60iNSP120..6F201011-201212

sub89661-52N61

main89661-52N80iNSP120..LHD..CVT201011-201212

sub89661-52N81

main89661-52U70iNSP120..RHD..CVT201011-201212

sub89661-52U71

main89661-52Z00iNSP120..6F201212-201309

sub89661-52Z01

main89661-52Z01iNSP120..6F201310-201504

main89661-52Z20iNSP120..LHD..CVT201212-201309

sub89661-52Z21

main89661-52Z21iNSP120..LHD..CVT201310-201504

main89661-52Z30iNSP120..RHD..CVT201212-201309

sub89661-52Z31

main89661-52Z31iNSP120..RHD..CVT201310-201504

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52330iNSP120..LHD201011-201504

main89667-52340iNSP120..RHD201011-201504

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52340iNSP120..LHD201011-201504

main89668-52350iNSP120..RHD201011-201504

9015350015

main90153-50015

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

9155180614

main91551-80614

91631J0612

main91631-J0612

11 parts on this diagram · 2 diagrams in section
